SV30-AEPDK (1990)
Toyota Camry/Vista

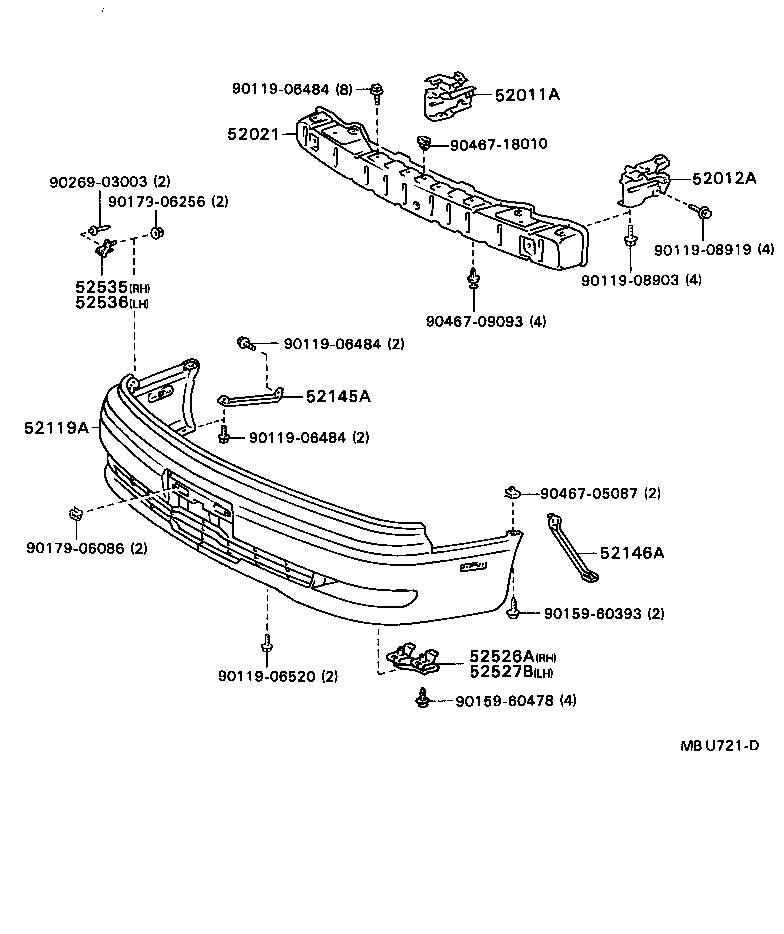

(9007-9206)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-32130 |
CV30,SV3#..SED |
1 | ||
| 52011-32090 |
CV30,SV3#..SED |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-32070 |
CV30,SV3#..SED |
1 | ||
| 52012-32110 |
CV30,SV3#..SED |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32130 |
CV30,SV3#,VZV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3235013 |
CV30,SV3#..SED DARK BLUEISH GRAY M,191 |
1 | ||
| 52119-3235003 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 52119-3235002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 52119-3235007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 52119-3235008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 52119-3235017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 52119-32400B0 |
CV30,SV3#..SED DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32400G0 |
CV30,SV3#..SED GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32400K0 |
CV30,SV3#..SED GRAYISH PURPLE M,923 |
1 | ||
| 52119-32400A0 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 52119-32400E0 |
CV30,SV3#..SED LI BEIGE ME,4M3 |
1 | ||
| 52119-32400G1 |
CV30,SV3#..SED DK GREEN MICA,6M1 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-32060 |
CV30,SV3#..SED |
1 | ||
| 52145-32070 |
CV30,SV3#..SED |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-32030 |
CV30,SV3#..SED |
1 | ||
| 52146-32040 |
CV30,SV3#..SED |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32080 |
CV30,SV3#,VZV3# |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-32040 |
CV30,SV3#,VZV3# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-32050 |
CV30,SV3#..SED |
1 | ||
| 52535-32070 |
CV30,SV3#..SED |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-32040 |
CV30,SV3#..SED |
1 | ||
| 52536-32060 |
CV30,SV3#..SED |
1 | ||
| Common parts | ||||
| 90119-06484 | ||||
| 90119-06520 | ||||
| 90119-08903 | ||||
| 90119-08919 | ||||
| 90159-60393 | ||||
| 90159-60478 | ||||
| 90179-06086 | ||||
| 90179-06256 | ||||
| 90269-03003 | ||||
| 90467-05087 | ||||
| 90467-09093 | ||||
| 90467-18010 | ||||

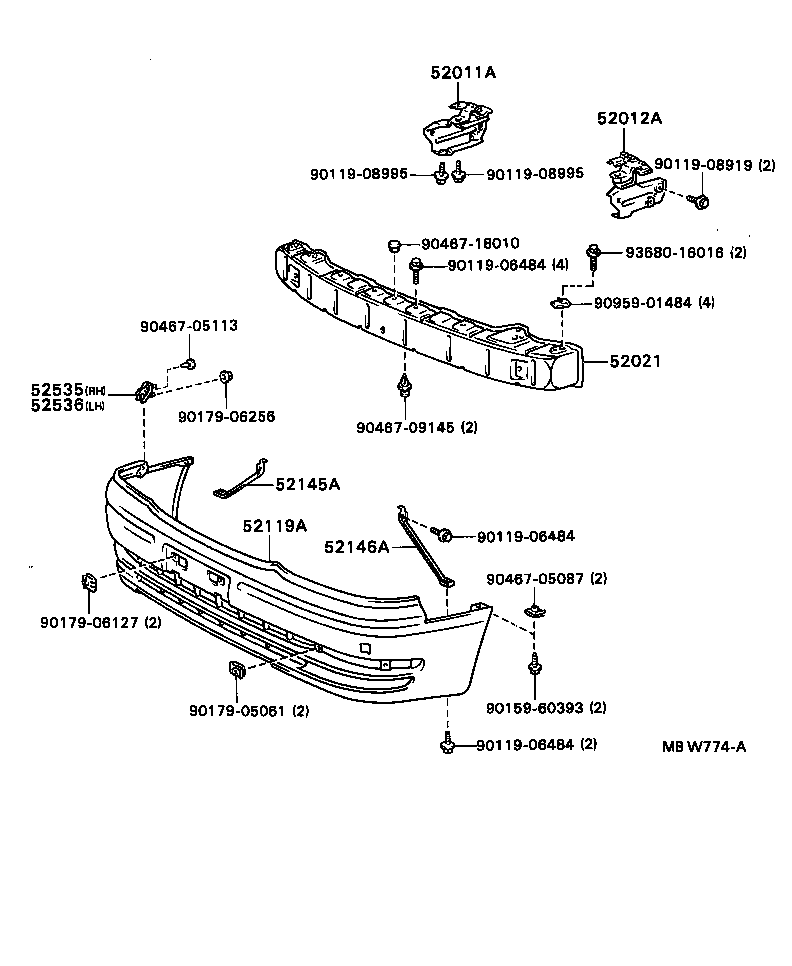

(9206- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-32130 |
CV30,SV3#..SED |
1 | ||
| 52011-32090 |
CV30,SV3#..SED |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-32070 |
CV30,SV3#..SED |
1 | ||
| 52012-32110 |
CV30,SV3#..SED |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32130 |
CV30,SV3#,VZV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3235013 |
CV30,SV3#..SED DARK BLUEISH GRAY M,191 |
1 | ||
| 52119-3235003 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 52119-3235002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 52119-3235007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 52119-3235008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 52119-3235017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 52119-32400B0 |
CV30,SV3#..SED DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32400G0 |
CV30,SV3#..SED GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32400K0 |
CV30,SV3#..SED GRAYISH PURPLE M,923 |
1 | ||
| 52119-32400A0 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 52119-32400E0 |
CV30,SV3#..SED LI BEIGE ME,4M3 |
1 | ||
| 52119-32400G1 |
CV30,SV3#..SED DK GREEN MICA,6M1 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-32070 |
CV30,SV3#..SED |
1 | ||
| 52145-32060 |
CV30,SV3#..SED |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-32030 |
CV30,SV3#..SED |
1 | ||
| 52146-32040 |
CV30,SV3#..SED |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-32050 |
CV30,SV3#..SED |
1 | ||
| 52535-32070 |
CV30,SV3#..SED |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-32040 |
CV30,SV3#..SED |
1 | ||
| 52536-32060 |
CV30,SV3#..SED |
1 | ||
| Common parts | ||||
| 90119-06484 | ||||
| 90119-08919 | ||||
| 90119-08995 | ||||
| 90159-60393 | ||||
| 90179-05061 | ||||
| 90179-06127 | ||||
| 90179-06256 | ||||
| 90467-05087 | ||||
| 90467-05113 | ||||
| 90467-09145 | ||||
| 90467-18010 | ||||
| 90959-01484 | ||||
| 93680-16016 | ||||
