Toyota Camry/vista SV30 AIR PURIFIER OR ION GENERATOR

Manufacturers Home
Toyota
JP
CAMRY/VISTA
SV30-AEMNK (1990)
8724 - AIR PURIFIER OR ION GENERATOR

SV30-AEMNK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992

Engine 4SFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9007-9206)

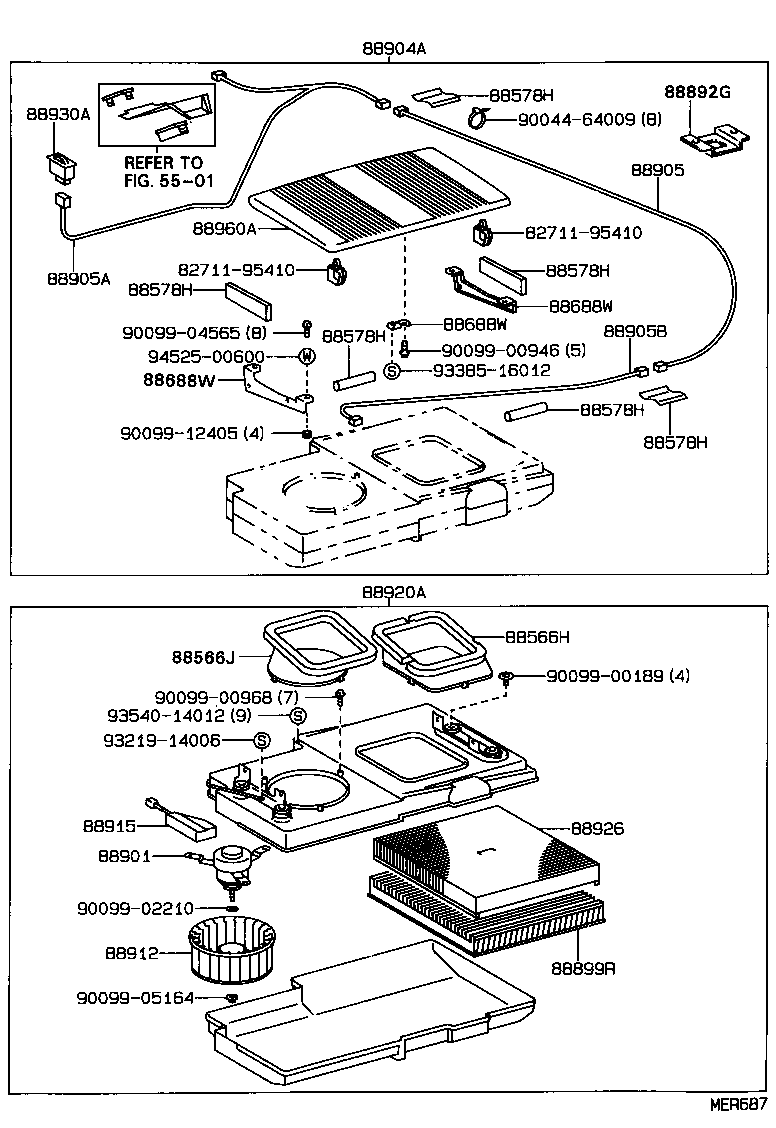

Click highlighted areas on diagram

MANUAL

Part #	Description	Period	Qty
88566H - DUCT, AIR, NO.1
88566-32090	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88566J - DUCT, AIR, NO.2
88566-32100	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88892G - PLATE SUB-ASSY
88892-32110	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88899R - FRAME, AIR PURIFIER
88899-32020	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-32020	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-3213002	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9#	07/1990 - 06/1992	1
88904-3213003	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1#	07/1990 - 06/1992	1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-32140	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2
88905-32160	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88905B - WIRE SUB-ASSY, AIR PURIFIER, NO.3
88905-32180	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88912 - FAN, AIR PURIFIER
88912-32140	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
88915 - RESISTOR, AIR PURIFIER
88915-20010	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88920A - PURIFIER ASSY, AIR
88920-32130	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1992	1
88926 - FILTER, AIR PURIFIER
88926-32030	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88930A - SWITCH ASSY, AIR PURIFIER
88930-22041	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88960A - GRILLE ASSY, AIR PURIFIER
88960-3202012	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9#	07/1990 - 06/1992	1
88960-3202003	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1#	07/1990 - 06/1992	1
Common parts
82711-95410
90044-64009
90099-00189
90099-00946
90099-00968
90099-02210
90099-04565
90099-05164
90099-12405
93219-14006
93385-16012
93540-14012
94525-00600
Linked diagrams
5501

(9007-9406)

Click highlighted areas on diagram

AUTO

Part #	Description	Period	Qty
88566H - DUCT, AIR, NO.1
88566-32090	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88566J - DUCT, AIR, NO.2
88566-32100	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370	CV30,SV3#..SED WIRE HARNESS	07/1990 - 06/1992	4
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32350	CV30,SV3#,VZV3# 左側	07/1990 - 06/1994	1
88688-32340	CV30,SV3#,VZV3# 右側	07/1990 - 06/1994	1
88892G - PLATE SUB-ASSY
88892-32110	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1994	1
88899R - FRAME, AIR PURIFIER
88899-32020	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-32020	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-3213002	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9#	07/1990 - 06/1992	1
88904-3213003	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1#	07/1990 - 06/1992	1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-32140	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2
88905-32160	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88905B - WIRE SUB-ASSY, AIR PURIFIER, NO.3
88905-32180	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88912 - FAN, AIR PURIFIER
88912-32140	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
88915 - RESISTOR, AIR PURIFIER
88915-20010	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88920A - PURIFIER ASSY, AIR
88920-32130	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV)	07/1990 - 06/1992	1
88926 - FILTER, AIR PURIFIER
88926-32030	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
88930A - SWITCH ASSY, AIR PURIFIER
88930-22041	CV30,SV3#..ETO,LUM,VE,VL,XT,ZV	07/1990 - 06/1992	1
88960A - GRILLE ASSY, AIR PURIFIER
88960-3202012	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9#	07/1990 - 06/1992	1
88960-3202003	CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1#	07/1990 - 06/1992	1
Common parts
82711-95410
90044-64009
90099-00189
90099-00946
90099-00968
90099-02210
90099-04565
90099-05164
90099-12405
93219-14006
93385-16012
93540-14010
93540-14012
94525-00600
Linked diagrams
8121

SV30-AEMNK (1990)

(9007-9206)

(9007-9406)
