SV30-AEMNK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 4SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )SED

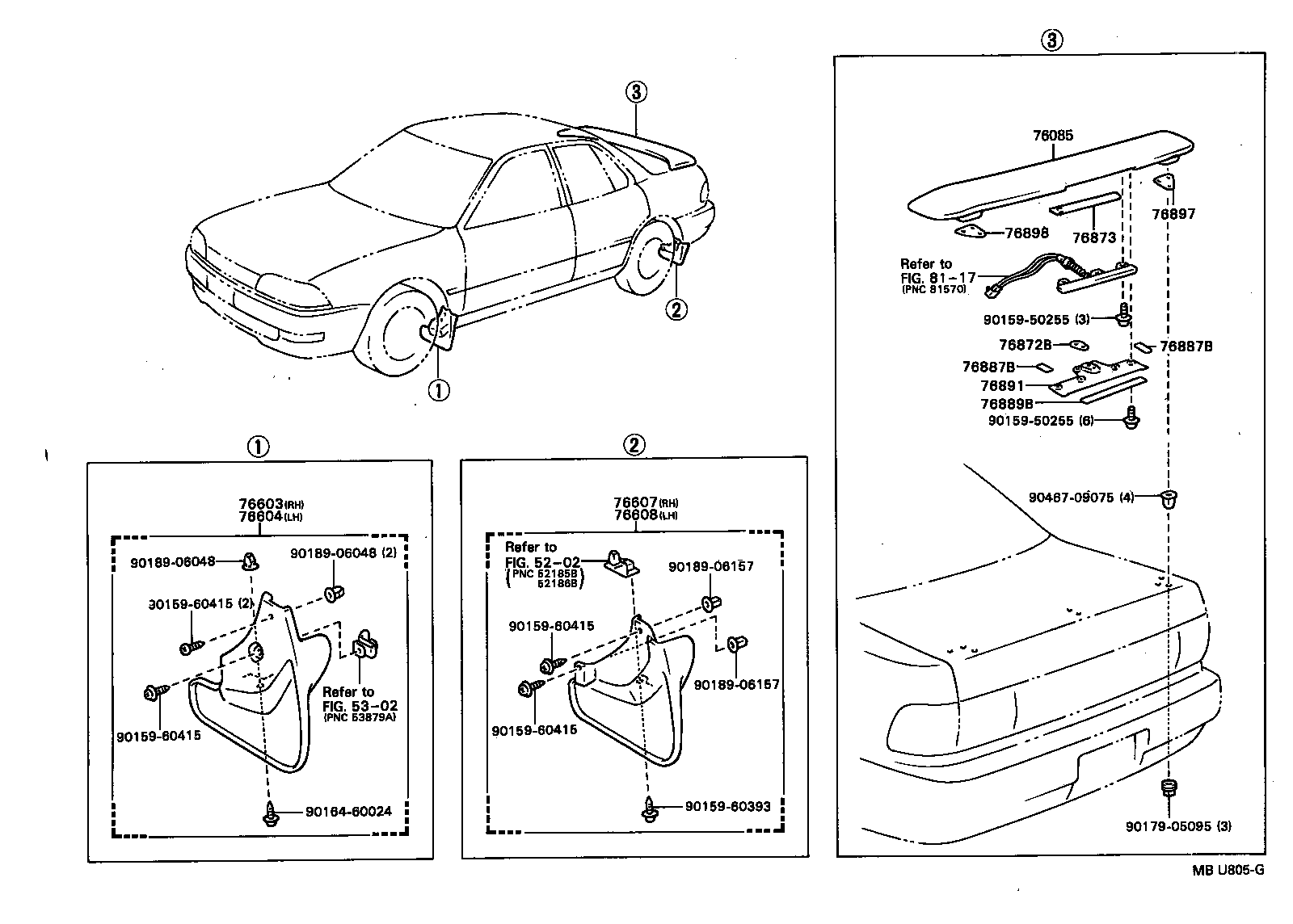

Click highlighted areas on diagram

diagram 5202 5302 76085 76603 76604 76607 76608 76872B 76873 76887B 76887B 76889B 76891 76897 76898 8117 9015950255 9015950255 9015960393 9015960415 9015960415 9015960415 9015960415 9016460024 9017905095 9018906048 9018906048 9018906157 9018906157 9046709075
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-39215

CV30,SV3#..SED

 1
76621-39215

CV30,SV30..ZV

ZV ｻﾙ-ﾝ

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-39215

CV30,SV3#..SED

 1
76622-39215

CV30,SV30..ZV

ZV ｻﾙ-ﾝ

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39265

CV30,SV3#..SED

 1
76625-39265

CV30,SV30..ZV

ZV ｻﾙ-ﾝ

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39265

CV30,SV3#..SED

 1
76626-39265

CV30,SV30..ZV

ZV ｻﾙ-ﾝ

 1
Common parts
90159-50255
90159-60393
90159-60415
90164-60024
90179-05095
90189-06048
90189-06157
90467-09075
Linked diagrams
5202
5302
8117
