SV30-AEMNK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 4SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

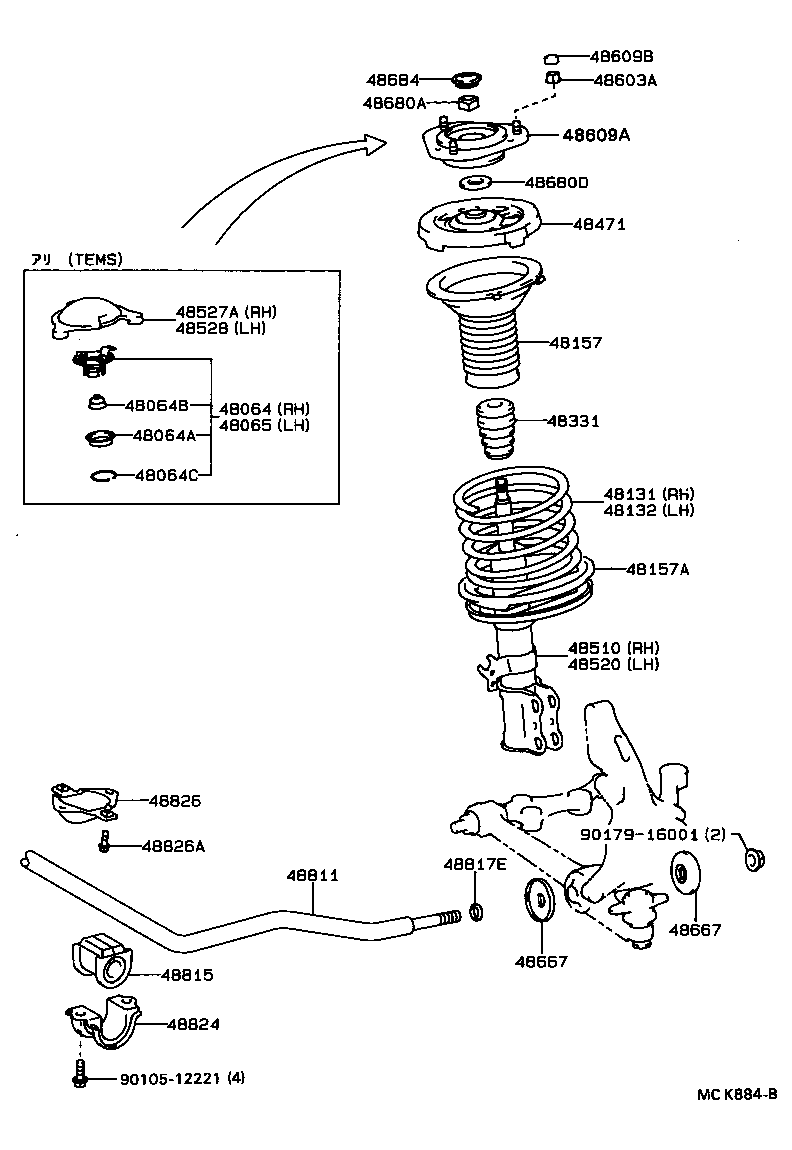

Click highlighted areas on diagram

diagram 48064 48064A 48064B 48064C 48065 48131 48132 48157 48157A 48331 48471 48510 48520 48527A 48528 48603A 48609A 48609B 48667 48667 48680A 48680D 48684 48811 48815 48817E 48824 48826 48826A 9010512221 9017916001
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-3H010

SV30..5F

 1
48132 - SPRING, FRONT COIL, LH
48131-3H010

SV30..5F

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-32030

CV30,SV3#,VZV3#

 2
48157A - INSULATOR, FRONT COIL SPRING, LOWER
48158-32030

CV30,SV3#,VZV3#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-32080

CV30,SV3#,VZV3#

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-32030

CV30,SV3#,VZV3#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-32160

SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-32160

SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10095

CV30,SV3#,VZV3#

 6
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-32100

CV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX

 2
48609B - CAP(FOR FRONT SUSPENSION SUPPORT)
90339-15002

CV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX

 4
48667 - RETAINER, STRUT BAR
48667-32020

CV30,SV3#,VZV3#

 4
48667 - RETAINER, STRUT BAR
48667-32020

CV30,SV3#,VZV3#

 4
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

CV30,SV3#,VZV3#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

CV30,SV3#,VZV3#

 2
48684 - COVER, BEARING DUST
48684-32010

CV30,SV3#,VZV3#

 2
48811 - BAR, STABILIZER, FRONT
48811-32160

CV30,SV3#,VZV31,33

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-32090

CV30,SV3#,VZV31,33

 2
48817E - SPACER(FOR STABILIZER BAR)
90560-16005

CV30,SV3#,VZV3#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-32040

CV30,SV3#,VZV3#

 2
48826 - PROTECTOR, FRONT STABILIZER BAR
48826-32010

CV30,SV3#,VZV3#

 1
48826A - BOLT(FOR FRONT STABILIZER BAR PROTECTOR)
90119-08601

CV30,SV3#,VZV3#

 2
Common parts
90105-12221
90179-16001
