SV30-AEMMK (1990)
Toyota Camry/Vista

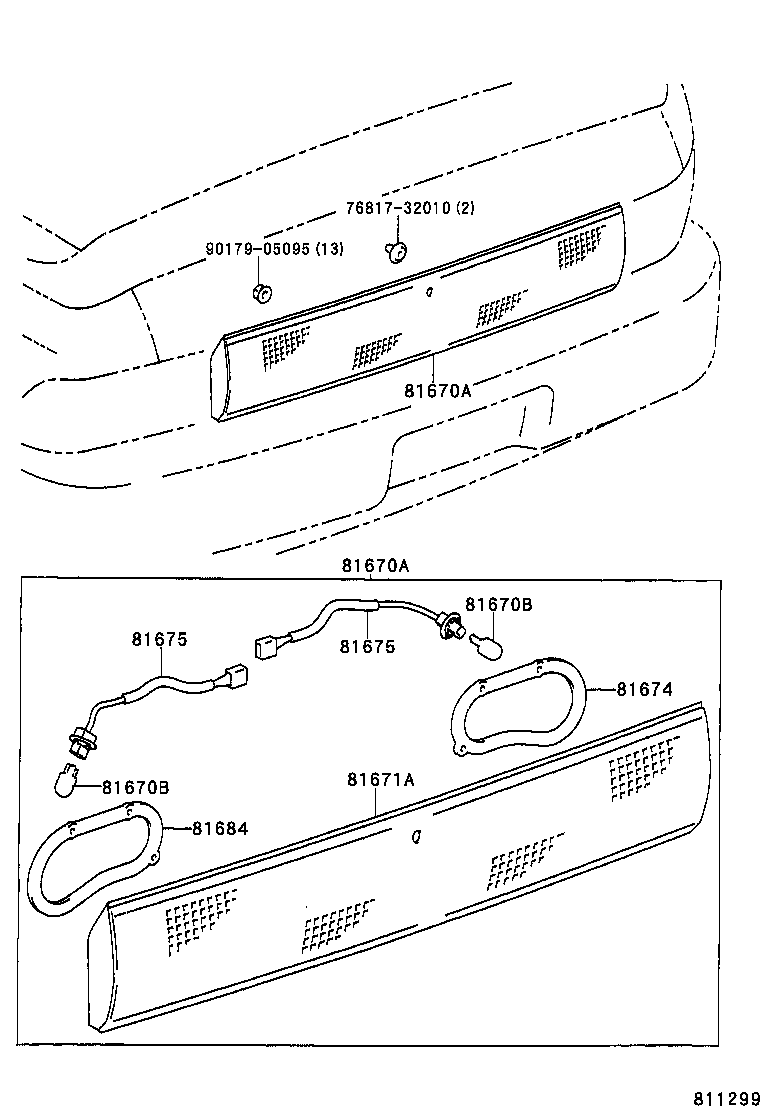

(9206-9406)CV30,SV3#..CAM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81670A - LAMP ASSY, BACK-UP | ||||
| 81670-32060 |
CV30,SV3#..CAM |
1 | ||
| 81580-32010 |
CV30,SV3#..CAM |
1 | ||
| 81670A - LAMP ASSY, BACK-UP | ||||
| 81670-32060 |
CV30,SV3#..CAM |
1 | ||
| 81580-32010 |
CV30,SV3#..CAM |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81671A - LENS & BODY, BACK-UP LAMP | ||||
| 81671-32060 |
CV30,SV3#..CAM |
1 | ||
| 81581-32010 |
CV30,SV3#..CAM |
1 | ||
| 81674 - GASKET, BACK-UP LAMP BODY, RH | ||||
| 81674-32060 |
CV30,SV3#..CAM |
1 | ||
| 81675 - SOCKET & WIRE, BACK-UP LAMP | ||||
| 81675-32060 |
CV30,SV3#..CAM |
2 | ||
| 81585-32010 |
CV30,SV3#..CAM |
2 | ||
| 81675 - SOCKET & WIRE, BACK-UP LAMP | ||||
| 81675-32060 |
CV30,SV3#..CAM |
2 | ||
| 81585-32010 |
CV30,SV3#..CAM |
2 | ||
| 81684 - GASKET, BACK UP LAMP BODY, LH | ||||
| 81674-32060 |
CV30,SV3#..CAM |
1 | ||
| Common parts | ||||
| 76817-32010 | ||||
| 90179-05095 | ||||

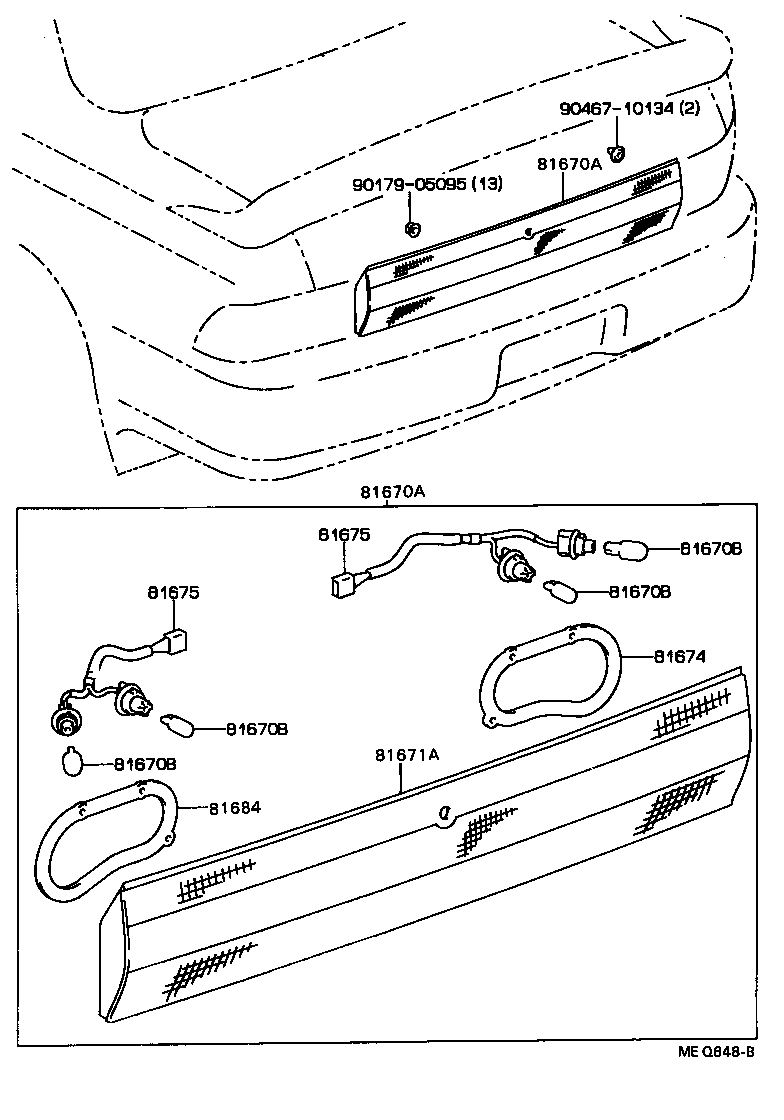

(9007-9206)CV30,SV3#..CAM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81670A - LAMP ASSY, BACK-UP | ||||
| 81670-32060 |
CV30,SV3#..CAM |
1 | ||
| 81580-32010 |
CV30,SV3#..CAM |
1 | ||
| 81670A - LAMP ASSY, BACK-UP | ||||
| 81670-32060 |
CV30,SV3#..CAM |
1 | ||
| 81580-32010 |
CV30,SV3#..CAM |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-13051 |
CV30,SV3#..CAM 12V 21/5W |
1 | ||
| 90981-11039 |
CV30,SV3#..CAM 12V 16W |
2 | ||
| 90981-13044 |
SV30,32,33..CAM 12V 21/5W |
2 | ||
| 81671A - LENS & BODY, BACK-UP LAMP | ||||
| 81671-32060 |
CV30,SV3#..CAM |
1 | ||
| 81581-32010 |
CV30,SV3#..CAM |
1 | ||
| 81674 - GASKET, BACK-UP LAMP BODY, RH | ||||
| 81674-32060 |
CV30,SV3#..CAM |
1 | ||
| 81675 - SOCKET & WIRE, BACK-UP LAMP | ||||
| 81675-32060 |
CV30,SV3#..CAM |
2 | ||
| 81585-32010 |
CV30,SV3#..CAM |
2 | ||
| 81675 - SOCKET & WIRE, BACK-UP LAMP | ||||
| 81675-32060 |
CV30,SV3#..CAM |
2 | ||
| 81585-32010 |
CV30,SV3#..CAM |
2 | ||
| 81684 - GASKET, BACK UP LAMP BODY, LH | ||||
| 81674-32060 |
CV30,SV3#..CAM |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90467-10134 | ||||
