SV30-AEMMK (1990)
Toyota Camry/Vista
(9007- )SED

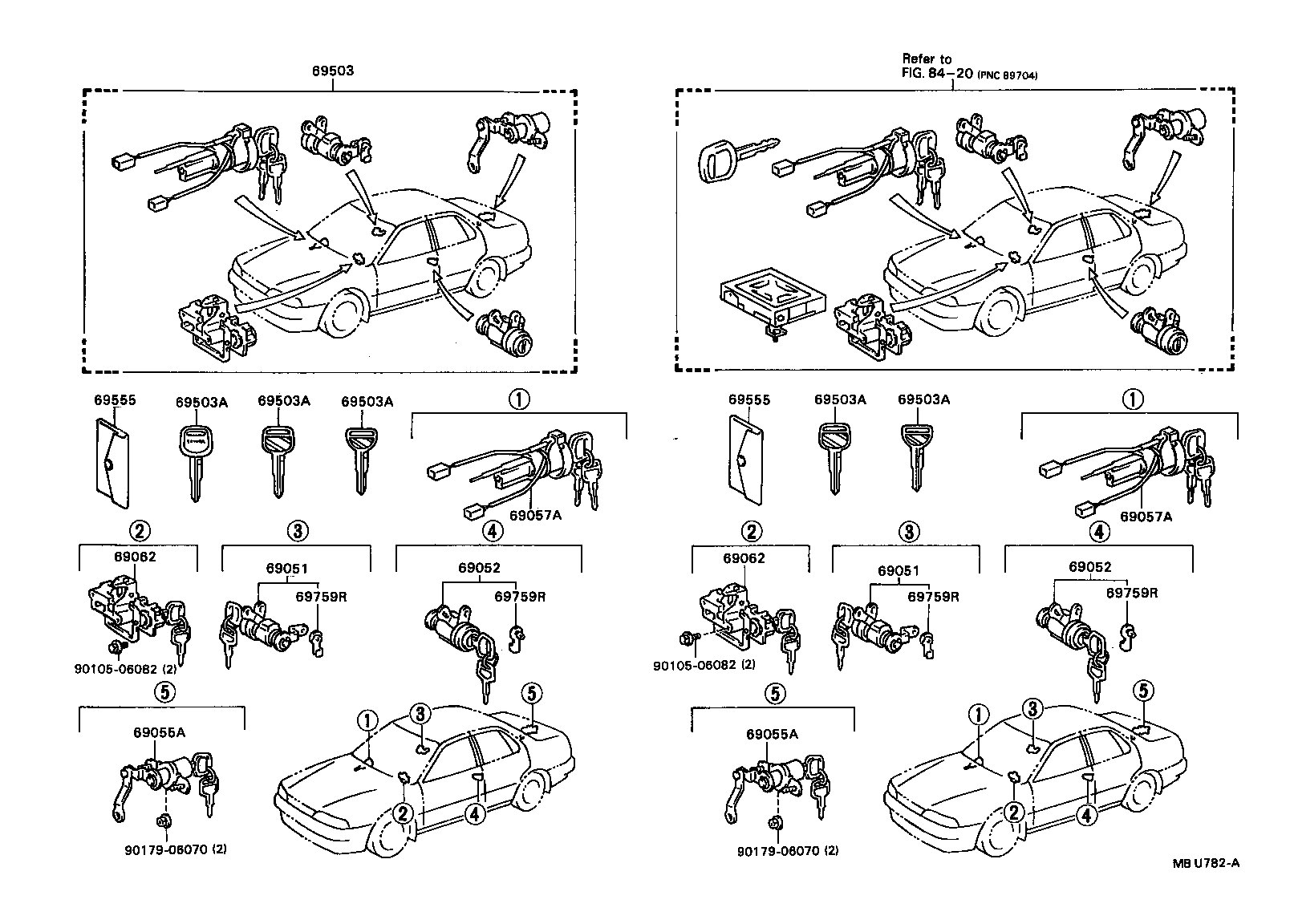

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32140 |
CV30,SV3#..SED |
1 | ||
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32140 |
CV30,SV3#..SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32130 |
CV30,SV3#..SED |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32130 |
CV30,SV3#..SED |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32280 |
CV30,SV3#..SED |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32280 |
CV30,SV3#..SED |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32150 |
CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32150 |
CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32110 |
CV30,SV3#..SED |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32110 |
CV30,SV3#..SED |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-32640 |
CV30,SV3#..SED..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00165 |
CV30,SV3#..SED ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00165 |
CV30,SV3#..SED ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00165 |
CV30,SV3#..SED ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00165 |
CV30,SV3#..SED ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
CV30,SV3#..SED ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00165 |
CV30,SV3#..SED ｻﾌﾞｷｰ |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CV30,SV3#,VZV3# |
1 | ||
| 69555-20030 |
CV30,SV3#,VZV3# |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CV30,SV3#,VZV3# |
1 | ||
| 69555-20030 |
CV30,SV3#,VZV3# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
CV30,SV3#..SED 右側 |
1 | ||
| 69759-32100 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
CV30,SV3#..SED 右側 |
1 | ||
| 69759-32100 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
CV30,SV3#..SED 右側 |
1 | ||
| 69759-32100 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
CV30,SV3#..SED 右側 |
1 | ||
| 69759-32100 |
CV30,SV3#..SED 左側 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90179-06070 | ||||
| Linked diagrams | ||||
| 8420 | ||||
