SV30-AEMEK (1990)
Toyota Camry/Vista

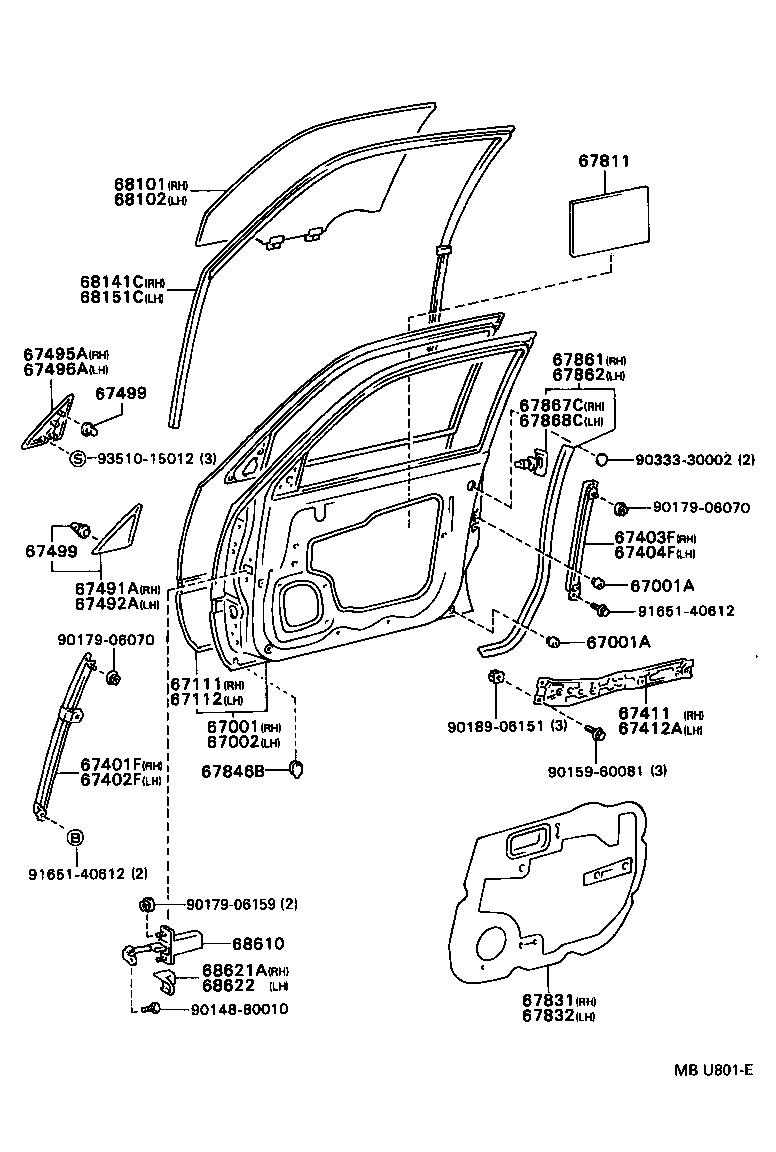

(9007- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32300 |
CV30,SV3#..SED |
1 | ||
| 67001-32301 |
CV30,SV3#..SED |
1 | ||
| 67001-33011 |
CV30,SV3#..SED |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#,VZV3# UPPER |
2 | ||
| 90541-09006 |
CV30,SV3#..SED UPPER |
2 | ||
| 90541-09080 |
CV30,SV3#..SED LOWER |
2 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#,VZV3# UPPER |
2 | ||
| 90541-09006 |
CV30,SV3#..SED UPPER |
2 | ||
| 90541-09080 |
CV30,SV3#..SED LOWER |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32260 |
CV30,SV3#..SED |
1 | ||
| 67002-32261 |
CV30,SV3#..SED |
1 | ||
| 67002-33011 |
CV30,SV3#..SED |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32090 |
CV30,SV3#..SED |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32090 |
CV30,SV3#..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32110 |
CV30,SV3#..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32110 |
CV30,SV3#..SED |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-32060 |
CV30,SV3#..SED |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-32060 |
CV30,SV3#..SED |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-32040 |
CV30,SV3#..SED |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-32040 |
CV30,SV3#..SED |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32100 |
CV30,SV3#..SED |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32100 |
CV30,SV3#..SED |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-32070 |
CV30,SV3#..SED |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-32060 |
CV30,SV3#..SED |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32020 |
CV30,SV3#..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
2 | ||
| 67499-30020 |
CV30,SV3#..SED |
6 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32020 |
CV30,SV3#..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
2 | ||
| 67499-30020 |
CV30,SV3#..SED |
6 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CV30,SV3# |
2 | ||
| 67812-12010 |
CV30,SV3#,VZV3# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32100 |
CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) |
1 | ||
| 67831-32130 |
CV30,SV3#..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32110 |
CV30,SV3#..SED |
1 | ||
| 67832-32080 |
CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) |
1 | ||
| 67846B - SUB-SHEET, FRONT DOOR SERVICE HOLE | ||||
| 67845-32010 |
CV30,SV3#..SED |
4 | ||
| 67845-32010 |
CV30,SV3#..SED |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32130 |
CV30,SV3#..SED |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32130 |
CV30,SV3#..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
CV30,SV3#..SED |
8 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
CV30,SV3#..SED |
8 | ||
| 67867-22020 |
CV30,SV3#..SED |
8 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-32100 |
CV30,SV3#..SED *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68101-32090 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-32090 |
CV30,SV3#..SED *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-32100 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-32090 |
CV30,SV3#..SED *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-32090 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-32100 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68102-32100 |
CV30,SV3#..SED *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-32090 |
CV30,SV3#..SED |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-32030 |
CV30,SV3#..SED |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-32040 |
CV30,SV3#..SED 左側 |
1 | ||
| 68610-33011 |
CV30,SV3#..SED 右側 |
1 | ||
| 68610-32060 |
CV30,SV3#..SED W(DOOR CHECK COVER),右側 |
1 | ||
| 68620-33011 |
CV30,SV3#..SED 左側 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-32010 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90148-80010 | ||||
| 90159-60081 | ||||
| 90179-06070 | ||||
| 90179-06159 | ||||
| 90189-06151 | ||||
| 90333-30002 | ||||
| 91651-40612 | ||||
| 93510-15012 | ||||

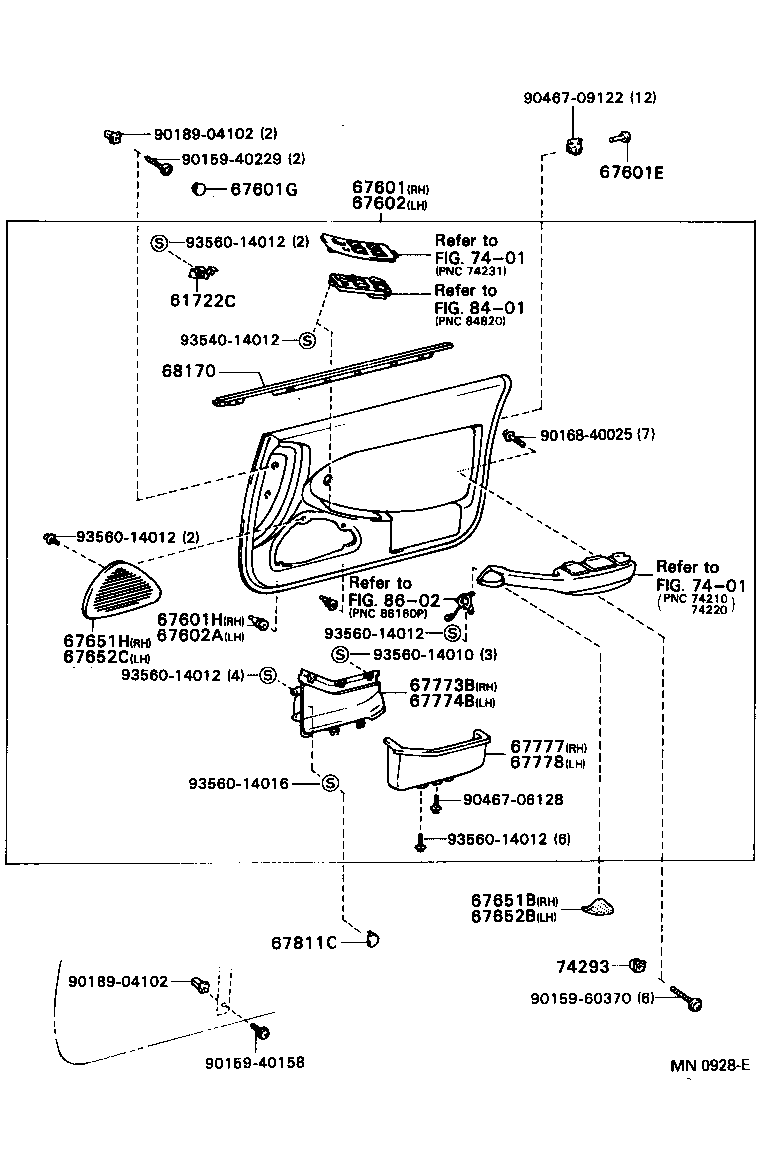

(9007- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61722C - BRACKET, SWITCH PLATE | ||||
| 61722-32010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 61722-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3265003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3264002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67650-3265002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-3264003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3276003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3276002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-32641E0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67650-32641B0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67650-32641K0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67650-32761K0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-32761E0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),OAK,TRIM4# |
1 | ||
| 67650-32761B0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MI.GRAY,TRIM1# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0706612 |
CV30,SV3#..SED TAUPE,TRIM9# |
4 | ||
| 90467-07066E0 |
CV30,SV3#..SED OAK,TRIM4# |
4 | ||
| 90467-0706623 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-07066B0 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-07066K0 |
CV30,SV3#..SED TAUPE,TRIM9# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0174602 |
CV30,SV3#..SED TAUPE,TRIM9# |
4 | ||
| 90950-0174603 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90950-01746E0 |
CV30,SV3#..SED OAK,TRIM4# |
4 | ||
| 90950-01746B0 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90950-01746K0 |
CV30,SV3#..SED TAUPE,TRIM9# |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CV30,SV3#..SED |
4 | ||
| 67771-32140 |
CV30,SV3#..SED |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3H41002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67620-3H41003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H42003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H42002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H53003 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H53002 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H411B0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67620-3H531E0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),OAK,TRIM4# |
1 | ||
| 67620-3H411K0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67620-3H531B0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MI.GRAY,TRIM1# |
1 | ||
| 67620-3H411E0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67620-3H531K0 |
CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
CV30,SV3#..SED |
4 | ||
| 67771-32140 |
CV30,SV3#..SED |
4 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-3205003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3205003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3205002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-32050E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 67651-3205002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-32050K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-32050B0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-3204003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3206002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67651-3204002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3206003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3204002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3206003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3204003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-32040B0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-32040E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 67651-3206002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67651-32060E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),OAK,TRIM4# |
1 | ||
| 67651-32060S4 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MI.GRAY,TRIM1# |
1 | ||
| 67651-32060K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67651-32040K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-3205002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3205003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-32050E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 67652-32050B0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3205002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-32050K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3205003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-3204002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3204003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3206003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3204003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3206003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3206002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652-3206002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652-3204002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-32040K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-32040E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 67652-32040B0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-32060K0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652-32060E0 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),OAK,TRIM4# |
1 | ||
| 67652-32060S4 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MI.GRAY,TRIM1# |
1 | ||
| 67773B - POCKET, FRONT DOOR TRIM, NO.2 RH | ||||
| 67773-3202002 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67773-3202003 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67773-32020E0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67773-32020K0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67773-32020S4 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67774B - POCKET, FRONT DOOR TRIM, NO.2 LH | ||||
| 67774-32020K0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67774-3202002 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67774-32020E0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67774-3202003 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67774-32020S4 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-3204002 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67777-3204003 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67777-32040K0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67777-32040E0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67777-32040S4 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-3204002 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67778-32040E0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) OAK,TRIM4# |
1 | ||
| 67778-3204003 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 67778-32040S4 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) MI.GRAY,TRIM1# |
1 | ||
| 67778-32040K0 |
CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX) TAUPE,TRIM9# |
1 | ||
| 67811C - COVER, FRONT DOOR HOLE | ||||
| 67811-32020E0 |
CV30,SV3#..SED OAK,TRIM4# |
2 | ||
| 67811-3202003 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
2 | ||
| 67811-32020S4 |
CV30,SV3#..SED MI.GRAY,TRIM1# |
2 | ||
| 67811-3202002 |
CV30,SV3#..SED TAUPE,TRIM9# |
2 | ||
| 67811-32020K0 |
CV30,SV3#..SED TAUPE,TRIM9# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32080 |
CV30,SV3#..SED 左側 |
1 | ||
| 68170-32070 |
CV30,SV3#..SED 右側 |
1 | ||
| 68170-33020 |
CV30,SV3#..SED 右側 |
1 | ||
| 68220-33020 |
CV30,SV3#..SED 左側 |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74293-32010 |
CV30,SV3#,VZV3# |
6 | ||
| Common parts | ||||
| 90159-40158 | ||||
| 90159-40229 | ||||
| 90159-60370 | ||||
| 90168-40025 | ||||
| 90189-04102 | ||||
| 90467-06128 | ||||
| 90467-09122 | ||||
| 93540-14012 | ||||
| 93560-14010 | ||||
| 93560-14012 | ||||
| 93560-14016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
