SV25-UTPNK (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX

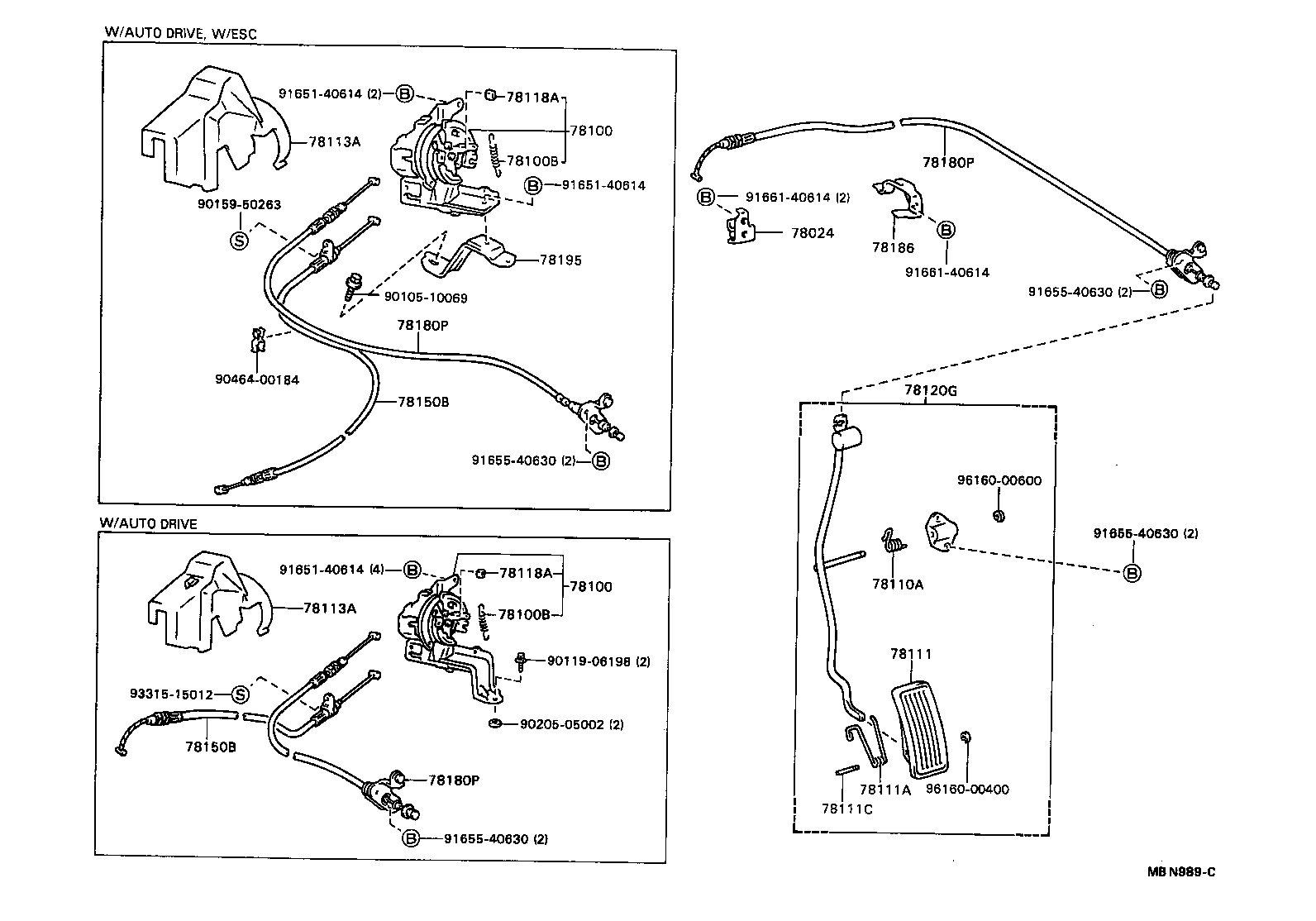

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32070 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
SV22;CV20,SV21,25,VZV20..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
CV20,SV2#,VZV20 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
CV20,SV2#,VZV20 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CV20,SV2#,VZV20 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-32070 |
CV20,SV21,25,VZV20..4FC |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-32181 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-32181 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-32181 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-32040 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 90105-10069 | ||||
| 90119-06198 | ||||
| 90159-50263 | ||||
| 90205-05002 | ||||
| 90464-00184 | ||||
| 91651-40614 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 91665-40630 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
