SV25-UTPNK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 63201G 63203F 63207 63208 63209 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63239 63255 63256 63260A 63261C 63262 63265B 63277C 63277C 63279D 63279D 63635A 63699A 9015940193 9015960219 9015960219 9015960219 9015960348 9016250007 9016250007 9016250007 9016840027 9016840046 9017905011 9017906070 9017906070 9017906115 9017906167 9018905044 9018906043 9033330002 9046714001 9046805017 9046805017 9046816009 9338216012 9616000400
Part # Description Qty Price
Common parts
90159-40193
90159-60219
90159-60348
90162-50007
90168-40027
90168-40046
90179-05011
90179-06070
90179-06115
90179-06167
90189-05044
90189-06043
90333-30002
90467-14001
90468-05017
90468-16009
93382-16012
96160-00400

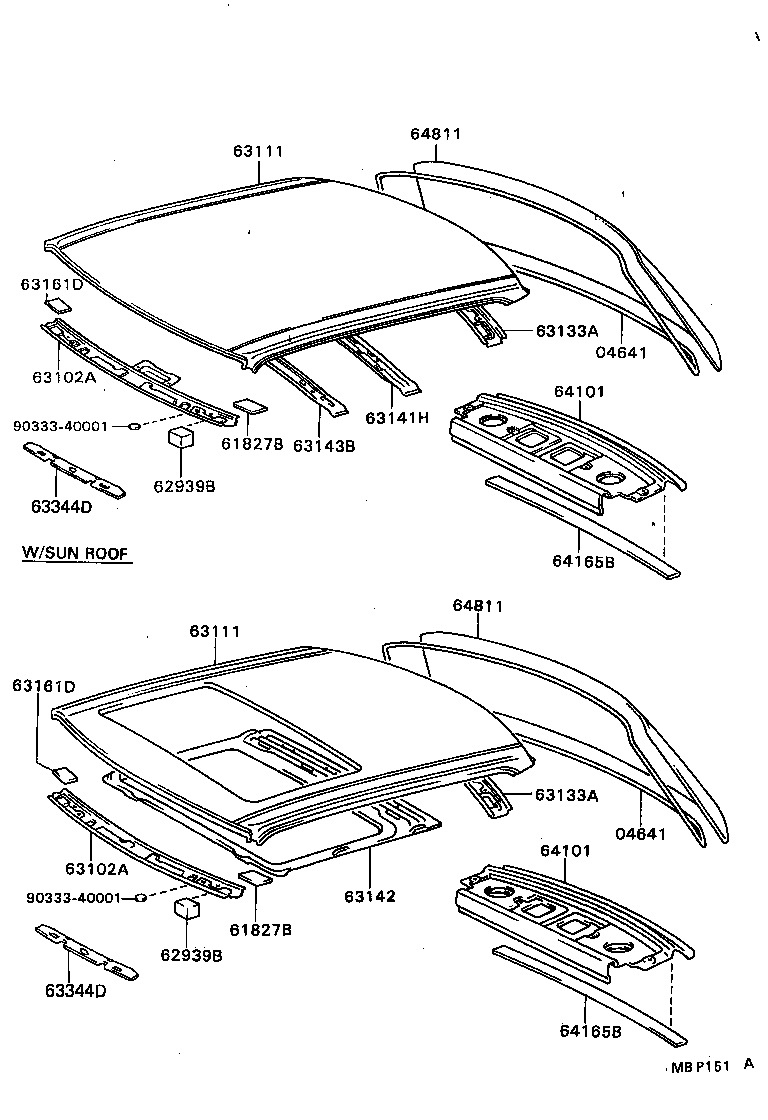

ILLUST NO. 1 OF 2(8808- )HT

Click highlighted areas on diagram

diagram 04641 04641 61827B 61827B 62939B 62939B 63102A 63102A 63111 63111 63133A 63133A 63141H 63142 63143B 63161D 63161D 63344D 63344D 64101 64101 64165B 64165B 64811 64811 9033340001 9033340001
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

CV20,SV2#,VZV20

 1
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

CV20,SV2#,VZV20

 1
61827B - PLATE, NOISE CONTROL, NO.4
61827-32020

CV20,SV2#,VZV20..HT

 4
61827B - PLATE, NOISE CONTROL, NO.4
61827-32020

CV20,SV2#,VZV20..HT

 4
62939B - SILENCER, QUARTER VENT
62939-32010

CV20,SV2#,VZV20..HT

 4
62939B - SILENCER, QUARTER VENT
62939-32010

CV20,SV2#,VZV20..HT

 4
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32080

CV20,SV2#,VZV20..HT

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32080

CV20,SV2#,VZV20..HT

 1
63111 - PANEL, ROOF
63111-32090

CV20,SV2#,VZV20..HT

 1
63111 - PANEL, ROOF
63111-32090

CV20,SV2#,VZV20..HT

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-32030

CV20,SV2#,VZV20..HT

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-32030

CV20,SV2#,VZV20..HT

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-32050

CV20,SV2#,VZV20..HT

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-32020

CV20,SV2#,VZV20..HT

 1
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-22010

CV20,SV2#,VZV20..HT

 2
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-22010

CV20,SV2#,VZV20..HT

 2
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20

 2
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20

 2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-32120

CV20,SV25,VZV20..HT..(PRO,VL,VR)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-32120

CV20,SV25,VZV20..HT..(PRO,VL,VR)

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-32010

CV20,SV2#,VZV20..HT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-32010

CV20,SV2#,VZV20..HT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64811 - GLASS, BACK WINDOW
64811-32210

SV25..HT..VL

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,4WD ｴﾄﾜ-ﾙ V

 1
64811-32170

SV25..HT..VL

*EHTT,厚さ=3.5,4WD ｴﾄﾜ-ﾙ V

 1
64811-32240

CV20,SV22,25..HT..VL

*EHTT,厚さ=3.5

 1
64811 - GLASS, BACK WINDOW
64811-32210

SV25..HT..VL

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,4WD ｴﾄﾜ-ﾙ V

 1
64811-32170

SV25..HT..VL

*EHTT,厚さ=3.5,4WD ｴﾄﾜ-ﾙ V

 1
64811-32240

CV20,SV22,25..HT..VL

*EHTT,厚さ=3.5

 1
Common parts
90333-40001
