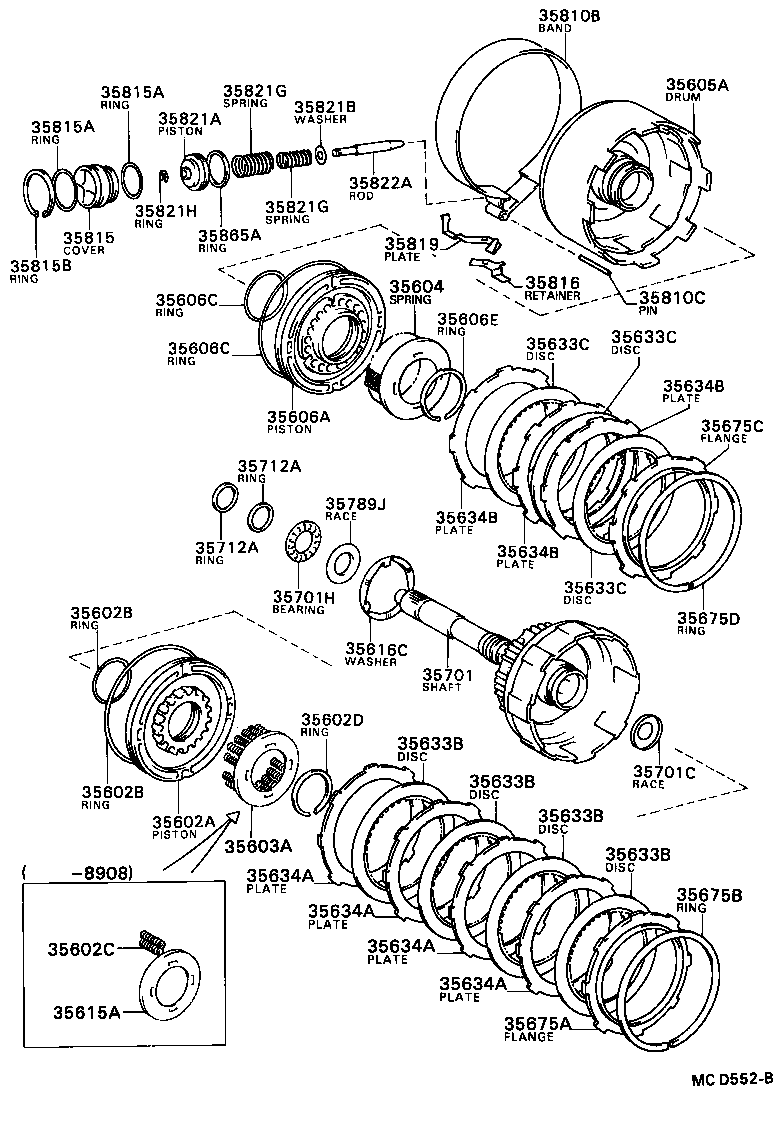

SV25-UTPEK (1988)
Toyota Camry/Vista
(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-32050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35602-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35602-32021 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35602-32040 |
SV25..4FC |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-46002 |
SV21..4FC..GT;CV20,SV22,25,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV22,25,VZV20..4FC 外側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-46002 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-46002 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-46002 |
SV21..4FC..GT;CV20,SV22,25,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV22,25,VZV20..4FC 外側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-46002 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-46002 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 35602C - SPRING, COMPRESSION (FOR FORWARD CLUTCH PISTON RETURN) | ||||
| 90501-11007 |
CV20,SV2#,VZV20..4FC |
18 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-44001 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-32030 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-17020 |
SV25..4FC |
1 | ||
| 35605-32031 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35606-20010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
SV21..4FC..GT;CV20,SV22,25,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV22,25,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
SV21..4FC..GT;CV20,SV22,25,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV22,25,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 90301-99016 |
CV20,SV2#,VZV20..4FC 外側 |
1 | ||
| 90301-57188 |
CV20,SV2#,VZV20..4FC 内側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35615A - SEAT, FORWARD CLUTCH PISTON RETURN SPRING | ||||
| 35615-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-32021 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-10020 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633-32050 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-10020 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633-32050 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-10020 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633-32050 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-10020 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633-32050 |
CV20,SV2#,VZV20..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
CV20,SV2#,VZV20..4FC |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
CV20,SV2#,VZV20..4FC |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
CV20,SV2#,VZV20..4FC |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CV20,SV2#,VZV20..4FC 厚さ=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35675-32010 |
CV20,SV2#,VZV20..4FC 厚さ=3.0 |
1 | ||
| 35675-32020 |
CV20,SV2#,VZV20..4FC 厚さ=3.37 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-17010 |
SV25..4FC 厚さ=2.8 |
1 | ||
| 35675-32010 |
CV20,SV2#,VZV20..4FC 厚さ=3.0 |
1 | ||
| 35675-32030 |
CV20,SV2#,VZV20..4FC 厚さ=2.6 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-32031 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-32040 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-28005 |
CV20,SV2#,VZV20..4FC 外径=42.0 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32040 |
SV25..4FC |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07001 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-32020 |
SV25..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
SV25..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
SV25..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-63001 |
SV25..4FC |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-32010 |
SV25..4FC |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-32020 |
SV25..4FC |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32020 |
SV25..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06014 |
SV25..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-24011 |
SV25..4FC 外側 |
1 | ||
| 90501-25025 |
SV25..4FC 内側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-24011 |
SV25..4FC 外側 |
1 | ||
| 90501-25025 |
SV25..4FC 内側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 96160-00500 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32030 |
SV25..4FC 長さ=95.2 |
1 | ||
| 35822-32040 |
SV25..4FC 長さ=96.3 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32020 |
SV25..4FC |
1 | ||
