SV25-UTMNK (1988)
Toyota Camry/Vista
(8808- )SV25

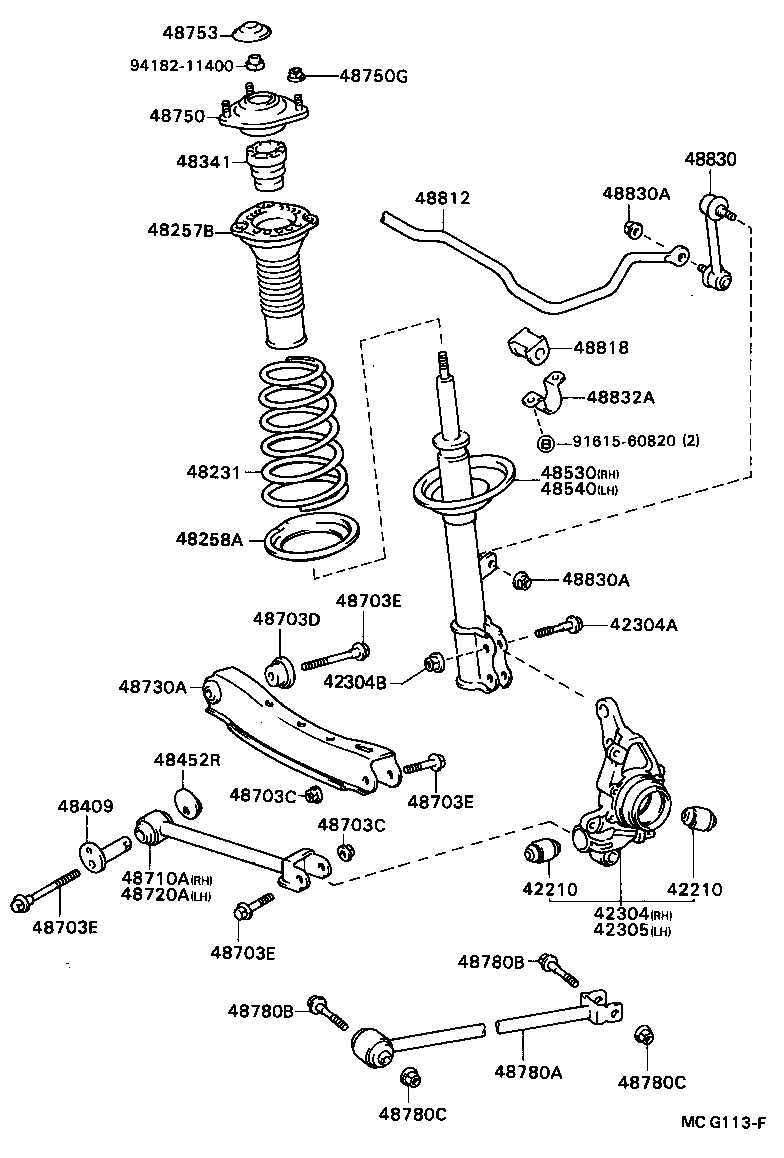

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42210 - BUSH ASSY, LOWER BALL | ||||
| 42210-14010 |
SV25 |
2 | ||
| 42210 - BUSH ASSY, LOWER BALL | ||||
| 42210-14010 |
SV25 |
2 | ||
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20040 |
SV25 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90105-15001 |
CV20,SV2#,VZV20 |
2 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-15001 |
CV20,SV2#,VZV20 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20040 |
SV25 |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-32670 |
SV25 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-32030 |
CV20,SV2#,VZV20 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-32010 |
CV20,SV2#,VZV20 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-20100 |
SV25 |
2 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-20030 |
SV25 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-20010 |
SV25 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-32200 |
SV25 ﾏｰｸ 48530−32200 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-32200 |
SV25 ﾏｰｸ 48540−32200 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90170-14006 |
SV25 |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90170-14006 |
SV25 |
4 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-13005 |
SV25 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12083 |
SV25 *12−1.25PX80−25 |
2 | ||
| 90119-14024 |
SV25 *14−1.50PX73−67 |
4 | ||
| 90119-12126 |
SV25 *12−1.25PX94−35 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12083 |
SV25 *12−1.25PX80−25 |
2 | ||
| 90119-14024 |
SV25 *14−1.50PX73−67 |
4 | ||
| 90119-12126 |
SV25 *12−1.25PX94−35 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12083 |
SV25 *12−1.25PX80−25 |
2 | ||
| 90119-14024 |
SV25 *14−1.50PX73−67 |
4 | ||
| 90119-12126 |
SV25 *12−1.25PX94−35 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12083 |
SV25 *12−1.25PX80−25 |
2 | ||
| 90119-14024 |
SV25 *14−1.50PX73−67 |
4 | ||
| 90119-12126 |
SV25 *12−1.25PX94−35 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20090 |
SV25 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-20090 |
SV25 |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-20050 |
SV25 |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-20040 |
SV25 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CV20,SV2#,VZV20 |
6 | ||
| 48753 - COVER, REAR SUSPENSION SUPPORT | ||||
| 48753-16010 |
CV20,SV2#,VZV20 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-20030 |
SV25 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV20,SV2#,VZV20 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV20,SV2#,VZV20 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
CV20,SV2#,VZV20 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
CV20,SV2#,VZV20 CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
CV20,SV2#,VZV20 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
CV20,SV2#,VZV20 CARRIER SIDE |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-32230 |
SV25 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20120 |
SV25 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-20010 |
SV25 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CV20,SV21,25,VZV20 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CV20,SV21,25,VZV20 |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20030 |
SV25 |
2 | ||
| Common parts | ||||
| 91615-60820 | ||||
| 94182-11400 | ||||
