SV25-UTMNK (1987)
Toyota Camry/Vista

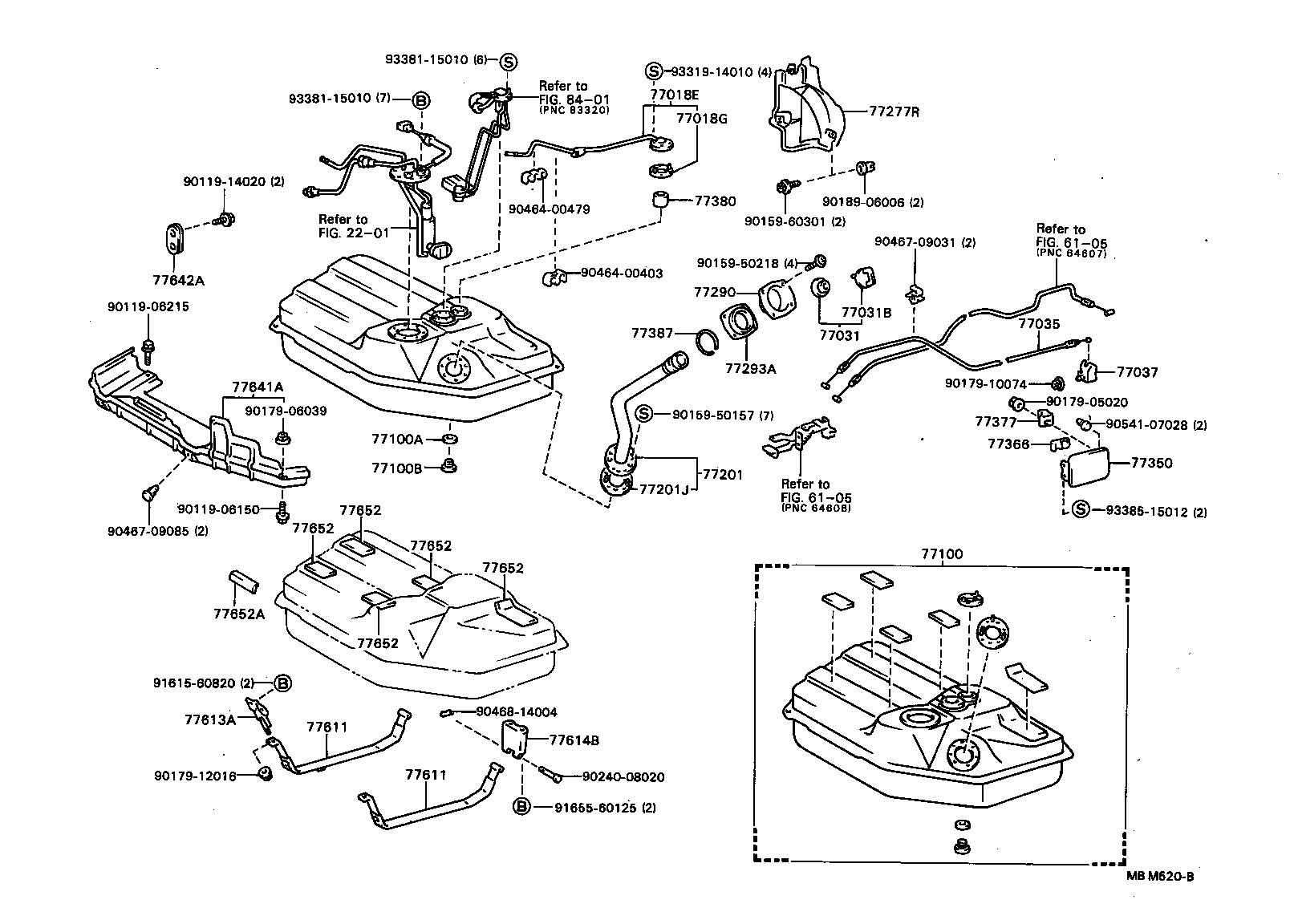

ILLUST NO. 1 OF 2(8710- )SV25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-32050 |
SV25 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-16010 |
SV25 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
SV2#,VZV20 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CV20,SV2#,VZV20 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32090 |
SV2#..HT |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
CV20,SV2#,VZV20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39215 |
CV20,SV2#,VZV20 |
1 | ||
| 77001-39265 |
SV25 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CV20,SV2#,VZV20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
CV20,SV2#,VZV20 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-32070 |
CV20,SV2# |
1 | ||
| 77201-32110 |
SV25 |
1 | ||
| 77201J - GASKET(FOR FUEL TANK INLET PIPE) | ||||
| 77169-14010 |
SV25 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 77277-32030 |
SV25 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20010 |
CV20,SV2#,VZV20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-32040 |
SV2#..HT |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
CV20,SV2#,VZV20 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
CV20,SV2#,VZV20 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
CV20,SV2#,VZV20 |
3 | ||
| 77380-14020 |
SV25 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
CV20,SV2#,VZV20 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32050 |
SV25 左側 |
1 | ||
| 77601-32060 |
SV25 右側 |
1 | ||
| 77602-32040 |
CV20,SV2#,VZV20 LH |
1 | ||
| 77601-32050 |
CV20,SV2#,VZV20 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-32050 |
SV25 左側 |
1 | ||
| 77601-32060 |
SV25 右側 |
1 | ||
| 77602-32040 |
CV20,SV2#,VZV20 LH |
1 | ||
| 77601-32050 |
CV20,SV2#,VZV20 RH |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-20080 |
SV25 |
2 | ||
| 77614B - BRACKET, FUEL TANK BAND, NO.2 | ||||
| 77614-32030 |
SV25 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32040 |
SV25 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-20020 |
SV25 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32040 |
CV20,SV2#,VZV20 |
4 | ||
| 77651-32060 |
SV25 |
5 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32040 |
CV20,SV2#,VZV20 |
4 | ||
| 77651-32060 |
SV25 |
5 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32040 |
CV20,SV2#,VZV20 |
4 | ||
| 77651-32060 |
SV25 |
5 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32040 |
CV20,SV2#,VZV20 |
4 | ||
| 77651-32060 |
SV25 |
5 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32040 |
CV20,SV2#,VZV20 |
4 | ||
| 77651-32060 |
SV25 |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32050 |
SV25 |
1 | ||
| Common parts | ||||
| 90119-06150 | ||||
| 90119-06215 | ||||
| 90119-14020 | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60301 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90464-00403 | ||||
| 90464-00479 | ||||
| 90467-09031 | ||||
| 90467-09085 | ||||
| 90468-14004 | ||||
| 90541-07028 | ||||
| 91615-60820 | ||||
| 91655-60125 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-15012 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 6105 | ||||
| 8401 | ||||

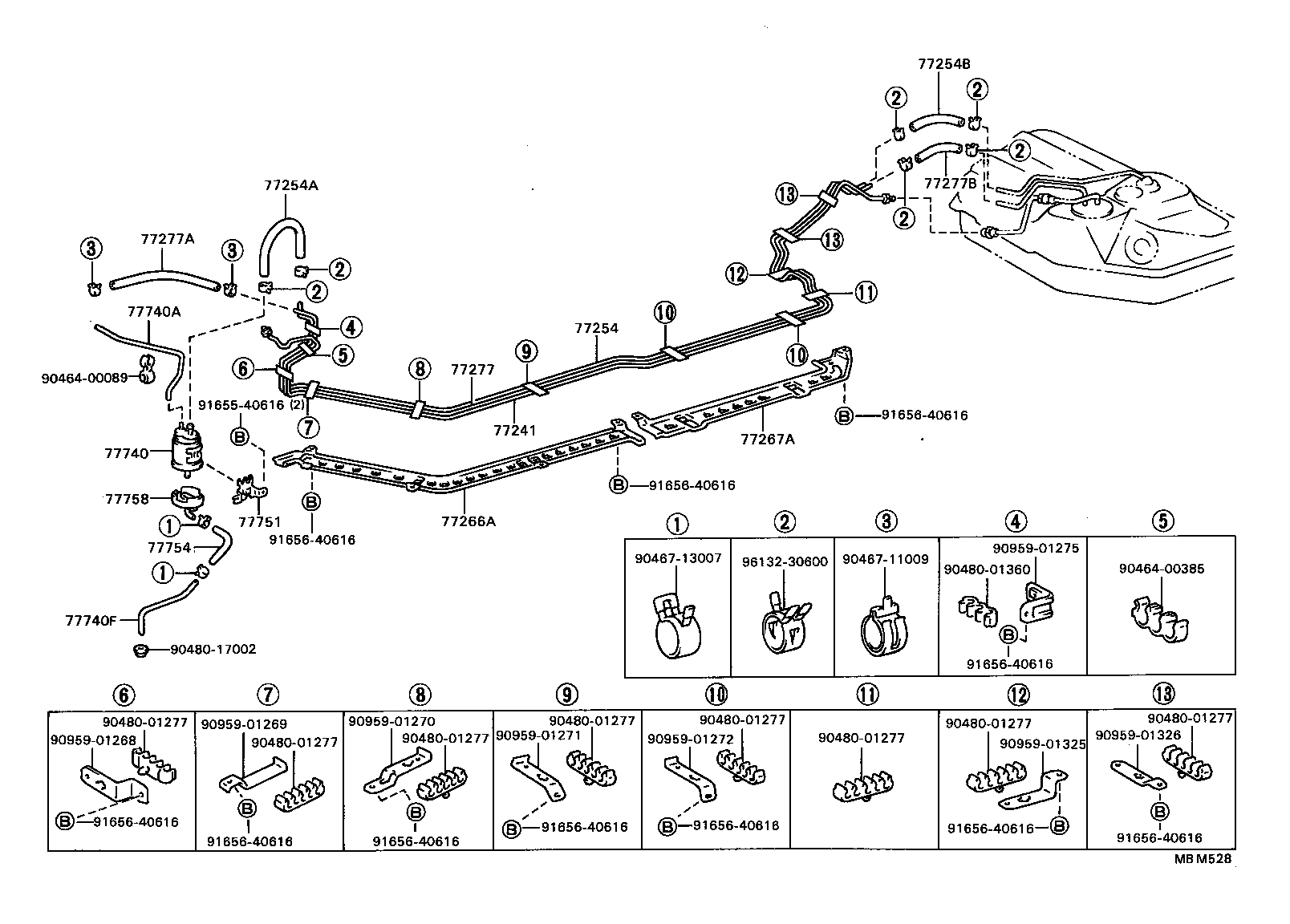

ILLUST NO. 2 OF 2(8710- )SV25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-32140 |
SV25 |
1 | ||
| 77251-32090 |
SV2#,VZV20 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-32080 |
SV25 |
1 | ||
| 77019-32060 |
SV2#,VZV20 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
SV2# *H,L=240 |
1 | ||
| 95333-06030 |
SV25 *H,L=300 |
1 | ||
| 95333-06030 |
SV2#,VZV20 *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
SV25 *H,L=200 |
1 | ||
| 95332-06020 |
SV2# *H,L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32030 |
SV25 |
1 | ||
| 77267-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-32070 |
SV2#,VZV20 |
1 | ||
| 77255-32100 |
SV25 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX 長さ=320 |
1 | ||
| 90447-12018 |
SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06017 |
CV20,SV2# *H,L=170 |
1 | ||
| 95333-06030 |
SV25 *H,L=300 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-32020 |
SV2#,VZV20 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
SV2#,VZV20 *H,L=390,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV2# *H,L=600,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
SV2#,VZV20 *H,L=600,ﾏｰｸ=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-32030 |
SV2#,VZV20 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-32030 |
SV2#,VZV20 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-32020 |
SV2#,VZV20 |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-32010 |
SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90464-00089 | ||||
| 90464-00385 | ||||
| 90467-11009 | ||||
| 90467-13007 | ||||
| 90480-01277 | ||||
| 90480-01360 | ||||
| 90480-17002 | ||||
| 90959-01268 | ||||
| 90959-01269 | ||||
| 90959-01270 | ||||
| 90959-01271 | ||||
| 90959-01272 | ||||
| 90959-01275 | ||||
| 90959-01325 | ||||
| 90959-01326 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 96132-30600 | ||||
