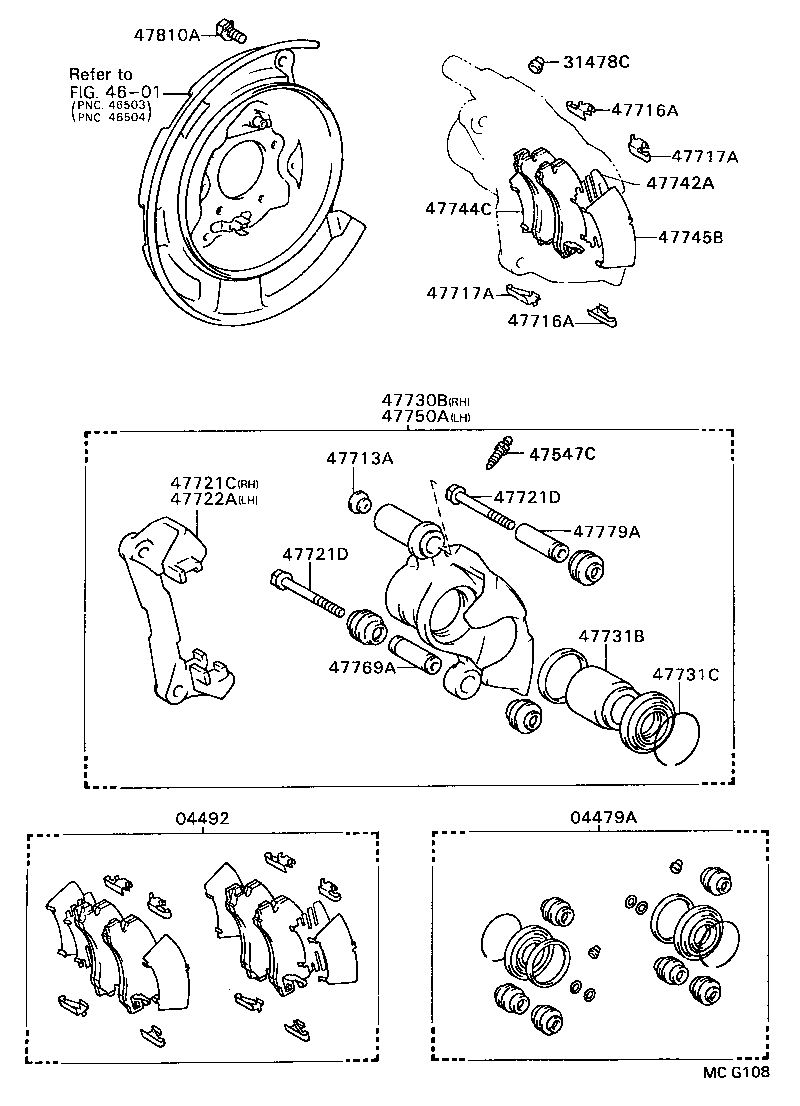

Toyota Camry/vista SV25 REAR DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-32040	SV21,25,VZV20	08/1988 - 07/1990	1
04492 - PAD KIT, DISC BRAKE, REAR
04492-20030	SV25	08/1988 - 07/1990	1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010	SV21,25,VZV20	08/1988 - 07/1990	2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010	SV21,25,VZV20	08/1988 - 07/1990	2
47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
90950-01538	SV21,25,VZV20	08/1988 - 07/1990	2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32020	SV25	07/1989 - 07/1990	4
47716-32020	SV21,25,VZV20	08/1988 - 07/1989	4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32020	SV25	07/1989 - 07/1990	4
47716-32020	SV21,25,VZV20	08/1988 - 07/1989	4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32020	SV25	07/1989 - 07/1990	4
47717-32020	SV21,25,VZV20	08/1988 - 07/1989	4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32020	SV25	07/1989 - 07/1990	4
47717-32020	SV21,25,VZV20	08/1988 - 07/1989	4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-32040	SV21,25,VZV20	08/1988 - 07/1990	1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08133	SV21,25,VZV20 *8−1.25PX58−25	08/1988 - 07/1990	2
90119-08547	SV21,25,VZV20 *8−1.25PX68−30	08/1988 - 07/1990	2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08133	SV21,25,VZV20 *8−1.25PX58−25	08/1988 - 07/1990	2
90119-08547	SV21,25,VZV20 *8−1.25PX68−30	08/1988 - 07/1990	2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-32040	SV21,25,VZV20	08/1988 - 07/1990	1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-32050	SV21,25,VZV20	08/1988 - 07/1990	1
47731B - PISTON, REAR DISC BRAKE
47731-32030	SV21,25,VZV20	08/1988 - 07/1990	2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-43002	SV21,25,VZV20	08/1988 - 07/1990	2
47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47742-32031	SV21,25,VZV20	08/1988 - 10/1989	2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-32021	SV21,25,VZV20	08/1988 - 07/1990	2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-32030	SV21,25,VZV20	08/1988 - 10/1989	2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-32050	SV21,25,VZV20	08/1988 - 07/1990	1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-32020	SV21,25,VZV20	08/1988 - 07/1990	2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-32020	SV21,25,VZV20	08/1988 - 07/1990	2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10445	SV25	08/1988 - 07/1990	4
Linked diagrams
4601

SV25-UTMEK (1988)

ILLUST NO. 1 OF 2(8808- )

ILLUST NO. 2 OF 2(8808- )

Part Price Details

Part #	Description	Period	Qty
04466 - PAD KIT, DISC BRAKE, REAR
04466-20080	SV25	08/1988 - 07/1990	1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32040	SV25	08/1988 - 07/1990	1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-32020	SV25	08/1988 - 07/1990	1
