SV25-UEPEK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )VZV20..4FC ; (8908- )LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

diagram 04438 04438A 41336B 43040 43410H 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32120

SV25..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39085

SV25..4FC

 1

(8808-8908)CV20,VZV20..4FC ; (8808-8908)SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

diagram 04438 04438A 41336B 43049 43403 43410 43410C 43410D 43410F 43410J 43411B 43447A 43447B 43448A 43448B 43457 43457A 43457B 43458 43460 43496 43496A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-19065

SV25

 1
43403-12050

SV25

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32140

SV25..4FC

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-39085

SV25..4FC

 1

(8808-8908)CV20,VZV20..4FC ; (8808-8908)SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

diagram 04438 04438A 41309 41336B 43403B 43410F 43410H 43410J 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-12060

SV25

 1
43403-19075

SV25

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32120

SV25..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39085

SV25..4FC

 1

(8808- )SV25

Click highlighted areas on diagram

RH

diagram 04438 04438A 41336B 43030A 43403 43403C 43410 43411B 43447A 43447B 43448A 43448B 43460
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90521-26004

SV25

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-19065

SV25

 1
43403-12050

SV25

 1
43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT)
90301-26006

SV25

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32140

SV25..4FC

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-39085

SV25..4FC

 1

(8808- )SV25

Click highlighted areas on diagram

diagram 04438 04438A 41336B 43030A 43403B 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12150

SV25

 2
04438-12210

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
41336-20040

SV25

RH

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90521-26004

SV25

 1
90521-26004

SV25

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-12060

SV25

 1
43403-12060

SV25

 1
43403-19075

SV25

 1
43403-19075

SV25

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32120

SV25..4FC

 1
43420-32120

SV25..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV25

 1
90949-01078

SV22,25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV25

 1
90949-01076

SV22,25

 1
90949-01076

SV22,25

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39085

SV25..4FC

 1
43470-39085

SV25..4FC

 1

(8808- )SV25

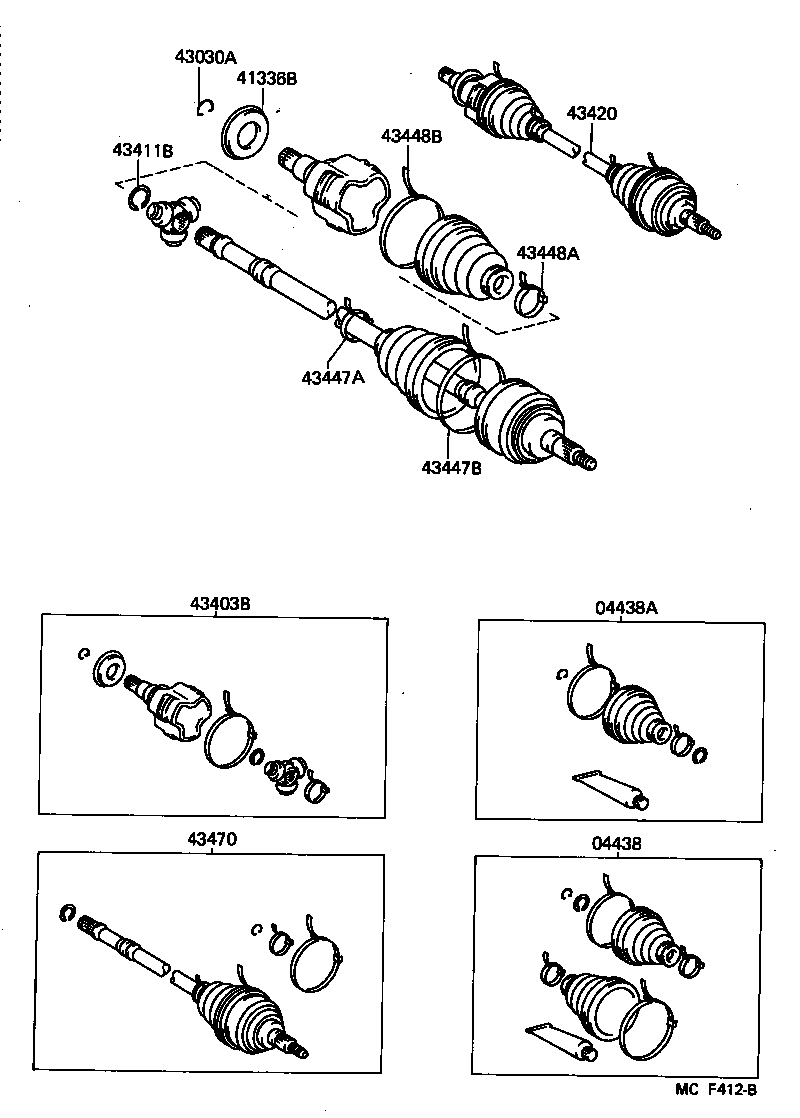

Click highlighted areas on diagram

LH

diagram 04438 04438A 41336B 43030A 43403B 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12150

SV25

 2
04438-12210

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
41336-20040

SV25

RH

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90521-26004

SV25

 1
90521-26004

SV25

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-12060

SV25

 1
43403-12060

SV25

 1
43403-19075

SV25

 1
43403-19075

SV25

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32120

SV25..4FC

 1
43420-32120

SV25..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV25

 1
90949-01078

SV22,25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV25

 1
90949-01076

SV22,25

 1
90949-01076

SV22,25

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39085

SV25..4FC

 1
43470-39085

SV25..4FC

 1

(8808- )SV25

Click highlighted areas on diagram

ｱﾘ(ESC)

diagram 04438 04438A 41304D 41304K 41336B 43409C 43410 43410F 43410H 43411B 43446A 43447A 43447B 43448A 43448B 43459B 43460 43489A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32140

SV25..4FC

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-39085

SV25..4FC

 1

(8908- )VZV20..4FC ; (8908- )LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

diagram 04438 04438A 41336B 43030 43410 43410C 43410D 43411B 43411C 43447A 43447B 43448A 43448B 43457 43457A 43457B 43458 43460 43496 43496A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12140

SV25..4FC

 2
04438-12200

SV25..4FC

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12150

SV25

 2
04438-12210

SV25

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-12040

SV25

LH

 1
41336-20040

SV25

RH

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32140

SV25..4FC

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CV20,SV25,VZV20..4FC

 1
90949-01076

SV25..4FC

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

SV25

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV25

 1
90949-01076

SV22,25

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-39085

SV25..4FC

 1
