SV25-UEPEK (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-20070 |
SV25 |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52005 |
SV25 OUTER |
1 | ||
| 90311-56007 |
SV25 INNER |
1 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-38003 |
SV25 |
1 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90170-19001 |
SV25 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-20100 |
SV25 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
SV21,25,VZV20 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CV20,SV2#,VZV20 |
5 | ||

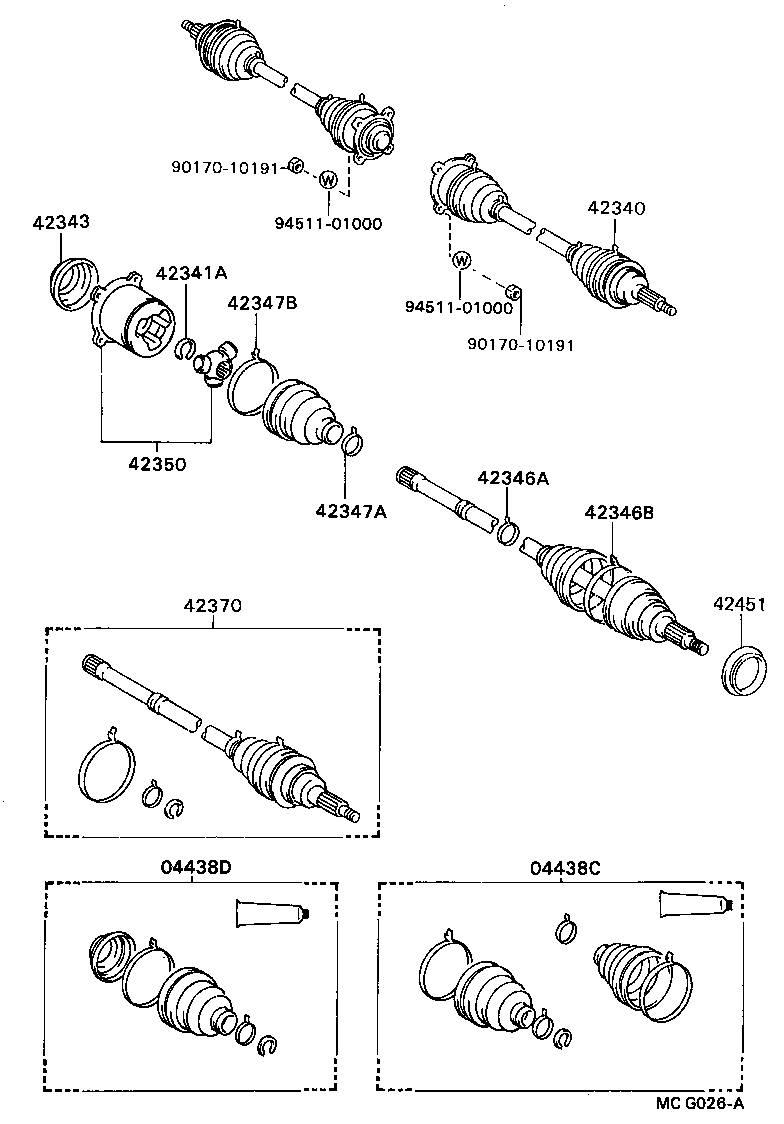

ILLUST NO. 2 OF 2(8808- )SV25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-32010 |
SV25 ｱﾘ(*66) |
2 | ||
| 04437-32010 |
SV25 |
1 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-14020 |
SV25 ｱﾘ(*66) |
2 | ||
| 04437-14020 |
SV25 |
1 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-32020 |
SV25 ｱﾘ(*66) |
2 | ||
| 42340-32011 |
SV25 |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
SV25 |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-14010 |
SV25 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-14010 |
SV25 内径=35.75 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01076 |
SV25 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14010 |
SV25 内径=35.75 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
SV25 |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-14010 |
SV25 |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-39025 |
SV25 ｱﾘ(*66) |
2 | ||
| 42370-39016 |
SV25 |
1 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-20020 |
SV25 |
2 | ||
| 42451-20010 |
SV25 ｱﾘ(*66) |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

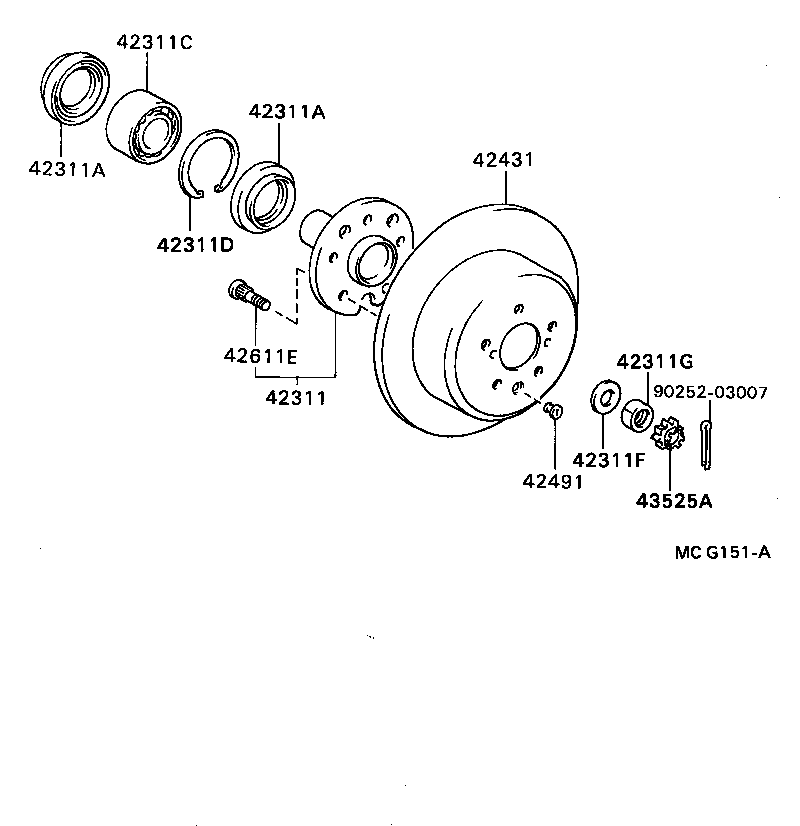

ILLUST NO. 1 OF 2(8808- )SV25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-20070 |
SV25 |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52005 |
SV25 OUTER |
1 | ||
| 90311-56007 |
SV25 INNER |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52005 |
SV25 OUTER |
1 | ||
| 90311-56007 |
SV25 INNER |
1 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-38003 |
SV25 |
1 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90521-79002 |
SV25 |
1 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20012 |
SV25 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90170-19001 |
SV25 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-20100 |
SV25 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
SV21,25,VZV20 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CV20,SV2#,VZV20 |
5 | ||
| 43525A - CAP, REAR WHEEL ADJUSTING LOCK | ||||
| 43525-20020 |
SV25 |
2 | ||
| Common parts | ||||
| 90252-03007 | ||||
