SV25-UEPEK (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3SFE..SV25

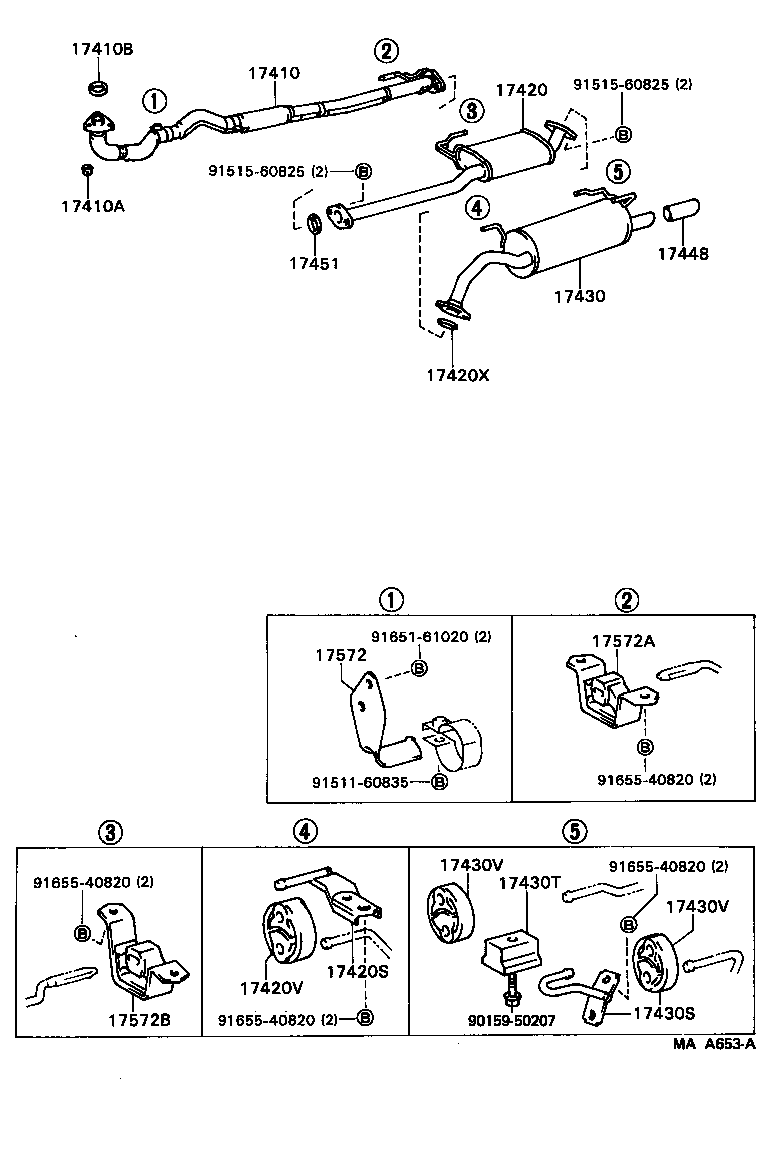

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-74270 |
3SFE..SV25 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2CT,3S#,1VZFE..CV20,SV21,25,VZV20 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06042 |
2CT,3SFE,1VZFE..CV20,SV21,25,VZV20 |
1 | ||
| 90917-06005 |
2CT,3SFE,1VZFE..CV20,SV21,25,VZV20 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-74201 |
3SFE..SV25 |
1 | ||
| 17420-74200 |
3SFE..SV25 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17508-74020 |
3SFE..SV25 |
1 | ||
| 17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR | ||||
| 17565-11100 |
2CT,3S#,4SFI..CV20,SV2# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06047 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 90917-06012 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-74281 |
3SFE..SV25 |
1 | ||
| 17430-74280 |
3SFE..SV25 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-74040 |
3SFE..SV25 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17591-36011 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
2CT,3S#,4SFI,1VZFE..CV20,SV2#,VZV20 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-41050 |
3SFE..SV21,25 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
2CT,3SFE..CV20,SV21,25 |
1 | ||
| 90917-06047 |
2CT,3SFE..CV20,SV21,25 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-74110 |
3SFE..SV25 |
1 | ||
| 17572A - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-74010 |
3SFE..SV25 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-74020 |
3SFE..SV25 |
1 | ||
| Common parts | ||||
| 90159-50207 | ||||
| 91511-60835 | ||||
| 91515-60825 | ||||
| 91651-61020 | ||||
| 91655-40820 | ||||
