SV25-UEMEK (1987)

Toyota Camry/Vista

Production Oct 1987 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )3SFE..SV25

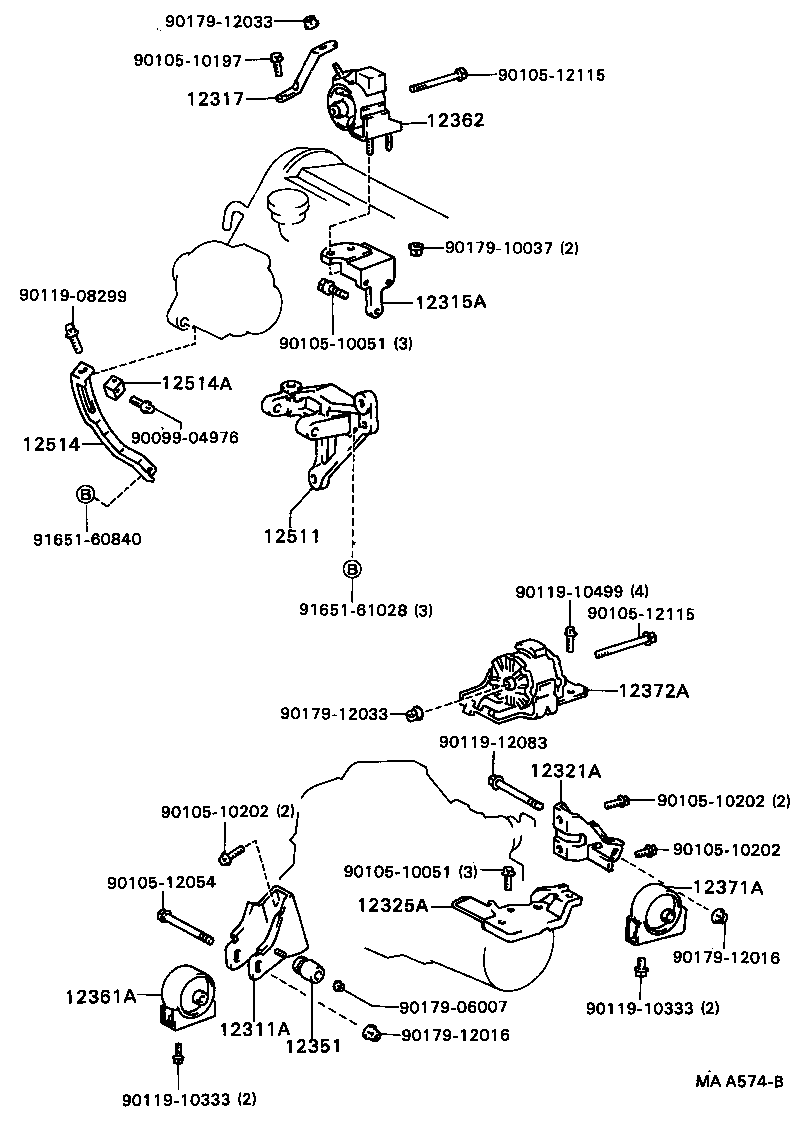

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 12514 12514A 9009904976 9010510051 9010510051 9010510197 9010510202 9010510202 9010510202 9010512054 9010512115 9010512115 9011908299 9011910333 9011910333 9011910499 9011912083 9017906007 9017910037 9017912016 9017912016 9017912033 9017912033 9165160840 9165161028
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74050

3SFE..SV25

 1
12311-74030

1SI,3S#..SV2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

1SI,3S#..SV2#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74010

3SFE..SV21,25

 1
12317-74060

3SFE..SV21,25

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64110

1SI,3S#..SV2#..5F

 1
12321-74060

3SFE..SV25

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74030

1SI,3S#..SV2#..5F

 1
12325-62010

3SFE..SV25

 1
12351 - DAMPER, ENGINE MOUNTING
12351-63010

3SFE..SV25

 1
12351-64020

1SI,3S#..SV2#

 2
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74020

1SI,3S#..SV2#..5F

 1
12361-74010

3SFE..SV25

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74060

3SFE..SV25

 1
12362-74030

1SI,3S#..SV2#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74030

1SI,3S#..SV2#..5F

 1
12371-74060

3SFE..SV25

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74040

1SI,3S#..SV2#..5F

 1
12372-74080

3SFE..SV25

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74020

3SFE..SV21,25

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74010

3SFE..SV21,25

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

1SI,3SFE..SV2#

 1
Common parts
90099-04976
90105-10051
90105-10197
90105-10202
90105-12054
90105-12115
90119-08299
90119-10333
90119-10499
90119-12083
90179-06007
90179-10037
90179-12016
90179-12033
91651-60840
91651-61028
