SV25-UEMEK (1988)
Toyota Camry/Vista

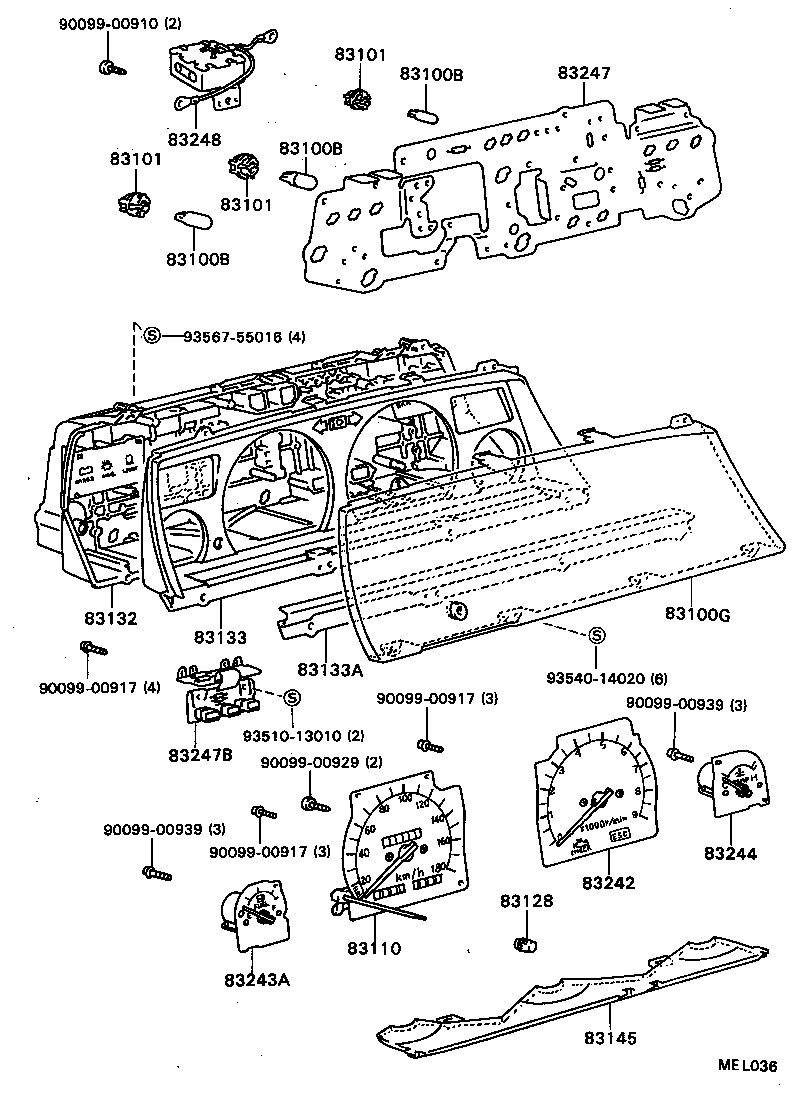

ILLUST NO. 1 OF 3(8808- )GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX
ANALOG(W/TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

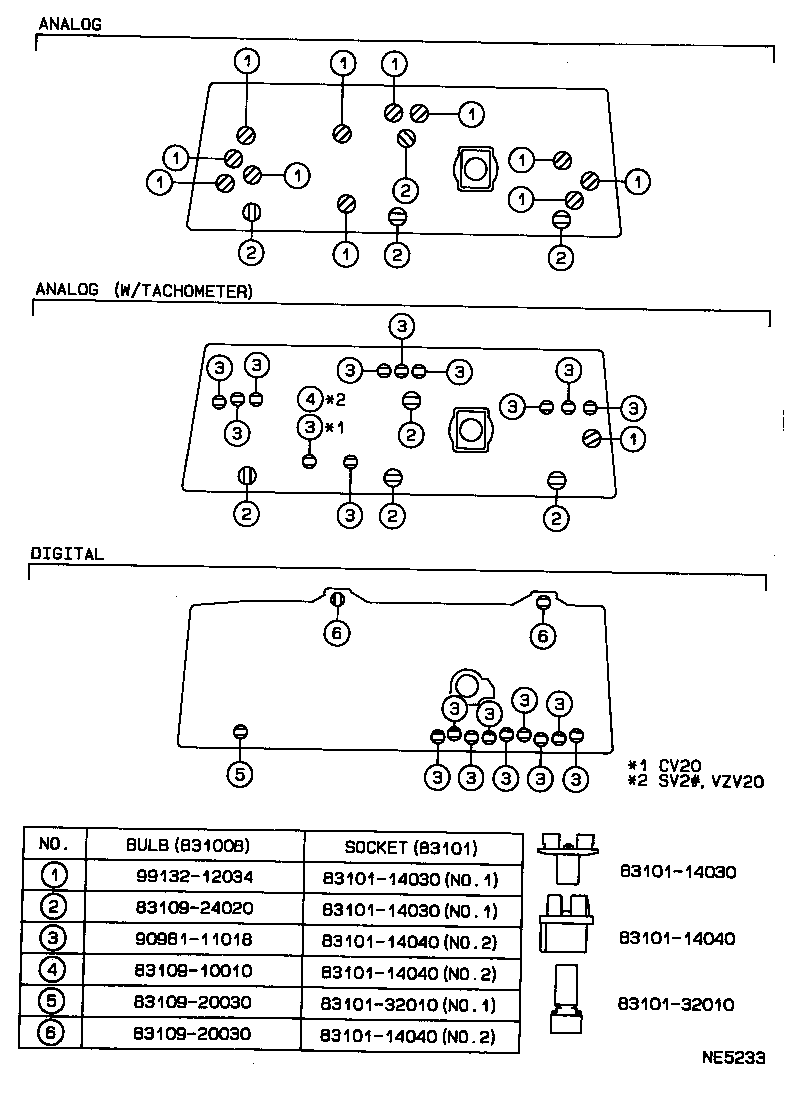

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32010 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32350 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32391 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83128-32130 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32760 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE |
1 | ||
| 83132-32890 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32330 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133-32730 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32590 |
CV20,SV2#,VZV20 |
1 | ||
| 83133-32430 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32350 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83145-32330 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32890 |
SV25..5F;SV22..HT..VL;SV21,22..LUM,VE,VR,VX,ZE,ZX |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-3H030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32590 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-3H010 |
SV25..5F;SV22..HT..VL;SV21,22,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 83247-32280 |
SV25..5F..(VR,ZE);SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 86640-32030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93510-13010 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

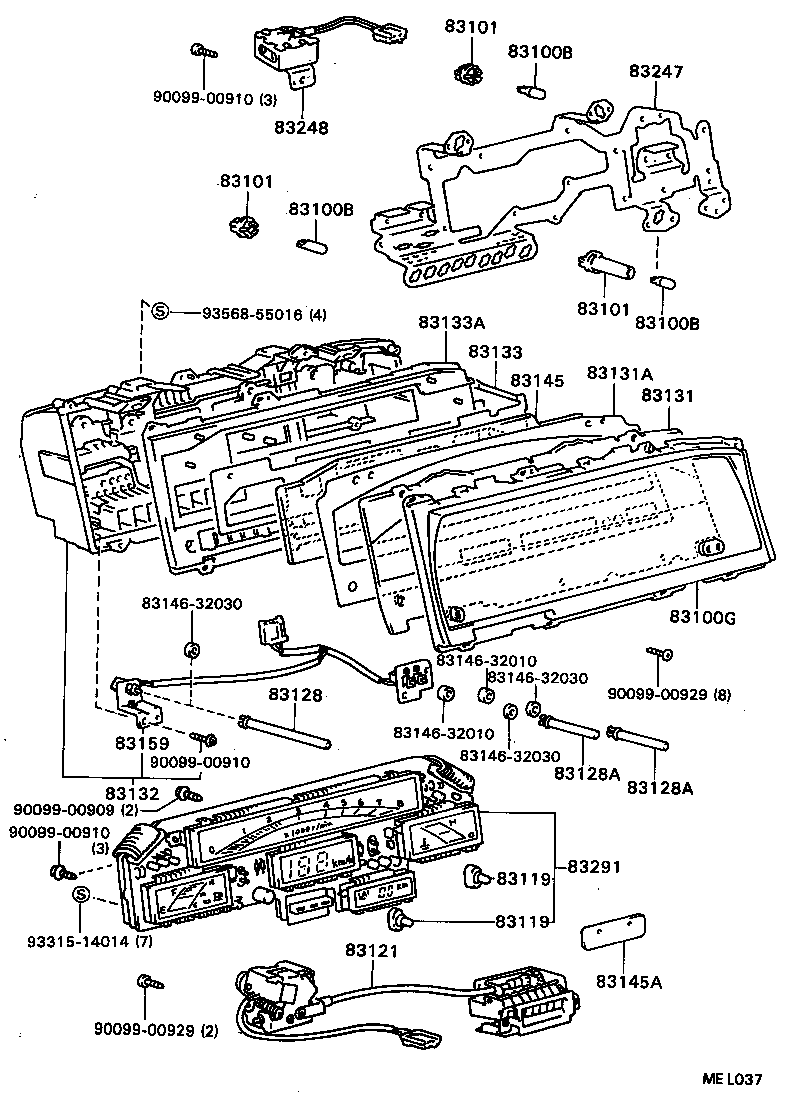

ILLUST NO. 1 OF 3(8808- )GT,PRO,VR,VX,ZE,ZX
DIGITAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32010 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32350 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24030 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24030 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-32110 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83128-32130 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-32110 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 83128A - KNOB, METER | ||||
| 83128-32110 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-32350 |
SV25..5F..(VR,ZE);SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83131A - DIAL, METER, NO.2 | ||||
| 83131-32230 |
SV25..5F..(VR,ZE);SV21,22..GT,VR,VX,ZE,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32760 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE |
1 | ||
| 83132-32890 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32330 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133-32730 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32590 |
CV20,SV2#,VZV20 |
1 | ||
| 83133-32430 |
SV2#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32350 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 |
1 | ||
| 83145-32330 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-32390 |
SV2#..GT,VR,VX,ZE,ZX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-32110 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-3H010 |
SV25..5F;SV22..HT..VL;SV21,22,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 83247-32280 |
SV25..5F..(VR,ZE);SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 86640-32030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-32030 |
SV25..5F..(VR,ZE);SV21,22..VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 83146-32010 | ||||
| 83146-32030 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-14014 | ||||
| 93568-55016 | ||||

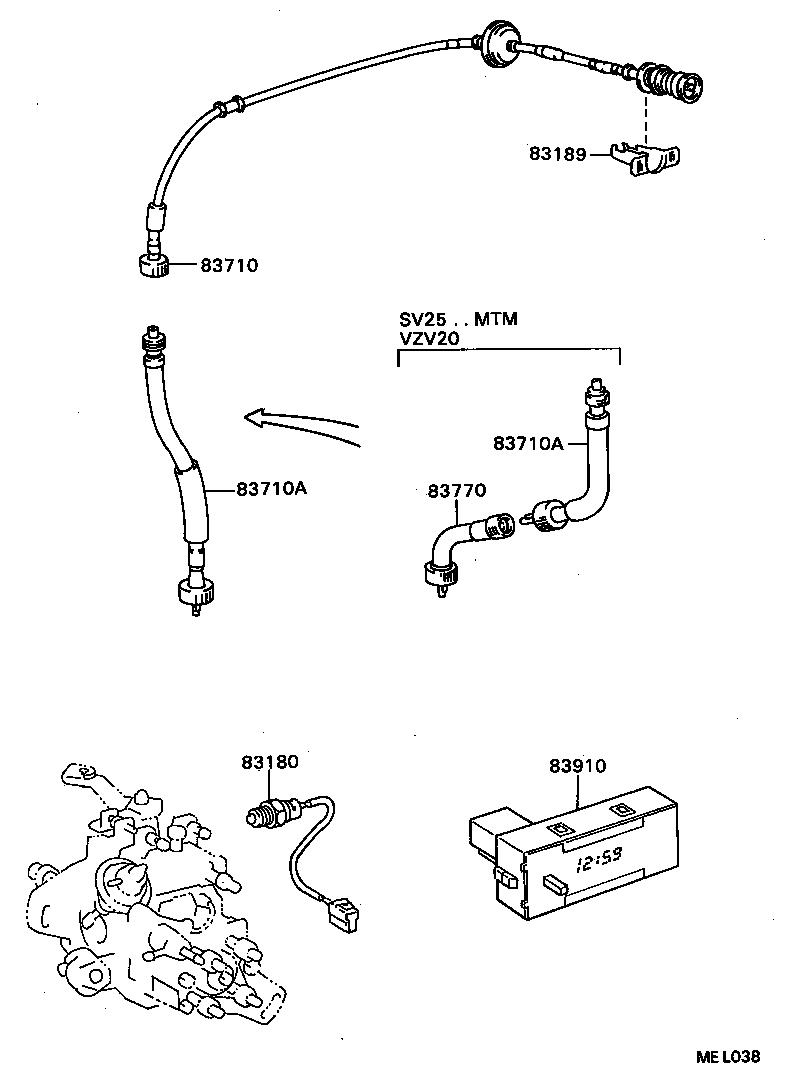

ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
CV20,SV2#,VZV20 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32191 |
SV25,VZV20..5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32040 |
VZV20;SV25..5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32040 |
VZV20;SV25..5F |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
VZV20;SV25..5F |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32061 |
CV20,SV2#,VZV20 |
1 | ||
ILLUST NO. 2 OF 3(8808- )
SOCKET & BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 3.4W |
5 | ||
| 83109-10010 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
10 | ||
| 83109-20030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,12V 1.4W,BLUE CAP |
3 | ||
| 90981-11018 |
SV2#..GT,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-14040 |
SV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE NO.2 |
11 | ||
| 83101-14030 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 NO.1 |
5 | ||
| 83101-32010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),NO.1 |
1 | ||
| Common parts | ||||
| 83101-04030 | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
