SV25-UEMEK (1988)
Toyota Camry/Vista

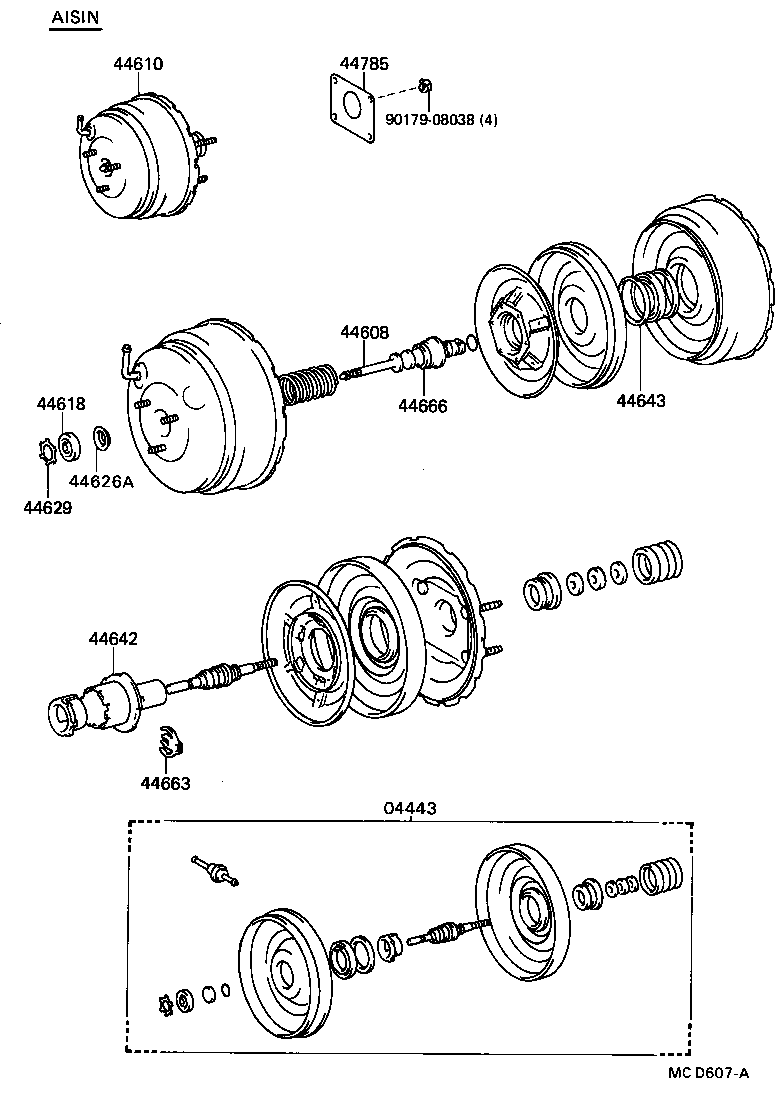

ILLUST NO. 1 OF 2(8808- )SV21,25,VZV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-32390 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 04443-32420 |
SV21,25,VZV20 JKC |
1 | ||
| 04443-32430 |
SV21,25,VZV20 AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44608-17090 |
SV21,25,VZV20 JKC |
1 | ||
| 44606-20800 |
SV21,25,VZV20 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-32480 |
SV21,25,VZV20 |
1 | ||
| 44610-32490 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
SV21,25,VZV20 |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
SV21,25,VZV20 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
SV21,25,VZV20 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44641-30560 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44642-20800 |
SV21,25,VZV20 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
SV21,25,VZV20 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-20800 |
SV21,25,VZV20 |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-28370 |
SV21,25,VZV20 |
1 | ||
| 44657-32490 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8808- )SV21,25,VZV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-32390 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 04443-32420 |
SV21,25,VZV20 JKC |
1 | ||
| 04443-32430 |
SV21,25,VZV20 AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-32170 |
SV21,25,VZV20 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44608-17090 |
SV21,25,VZV20 JKC |
1 | ||
| 44606-20800 |
SV21,25,VZV20 AISIN |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-17090 |
SV21,25,VZV20 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-32480 |
SV21,25,VZV20 |
1 | ||
| 44610-32490 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-20800 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44624-20810 |
SV21,25,VZV20 |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
SV21,25,VZV20 |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-28300 |
SV21,25,VZV20 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
SV21,25,VZV20 |
1 | ||
| 44635-20800 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-20810 |
SV21,25,VZV20 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
SV21,25,VZV20 |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
SV21,25,VZV20 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-22120 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44673-20810 |
SV21,25,VZV20 |
1 | ||
| 44673-26140 |
SV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX ｱﾘ(*66) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

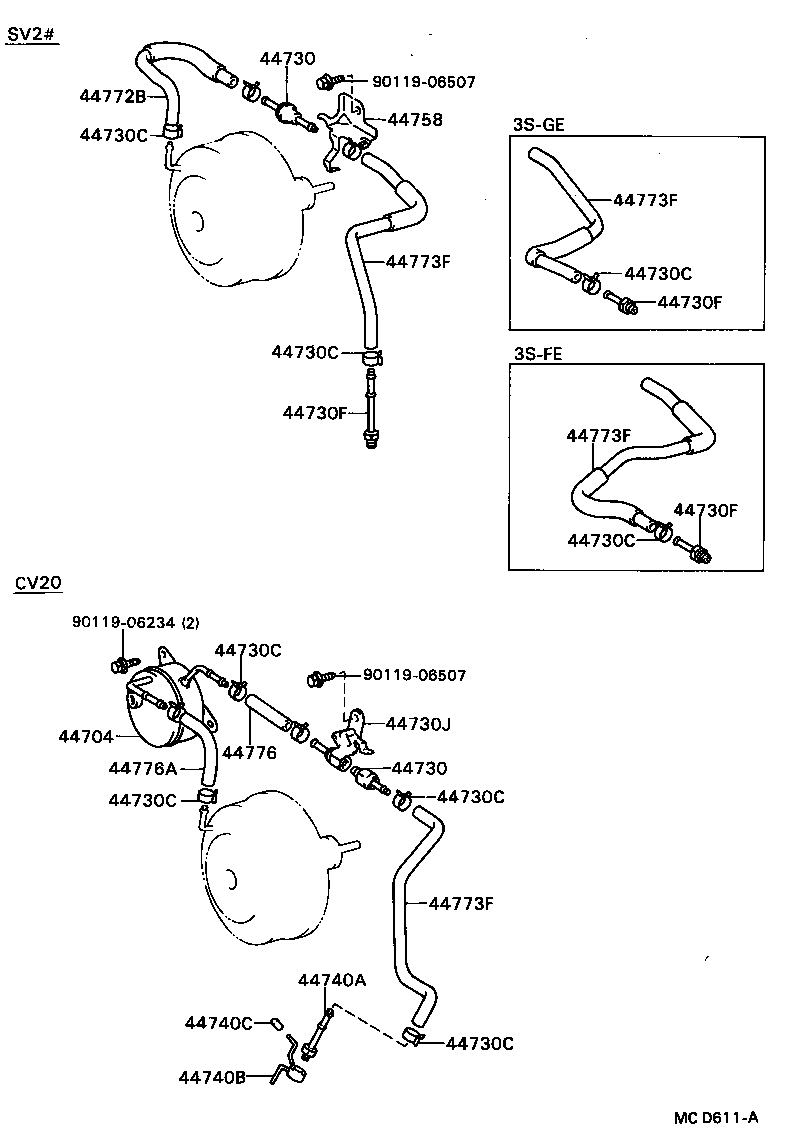

ILLUST NO. 2 OF 2(8808- )CV20,SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
SV2#,VZV20 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
SV2#,VZV20 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
SV2#,VZV20 |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
SV21,25 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
SV21,25 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
SV21,25 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20141 |
SV2#,VZV20 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-32060 |
SV2#,VZV20 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-32070 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-32070 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-32070 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-32070 |
SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90119-06507 | ||||
