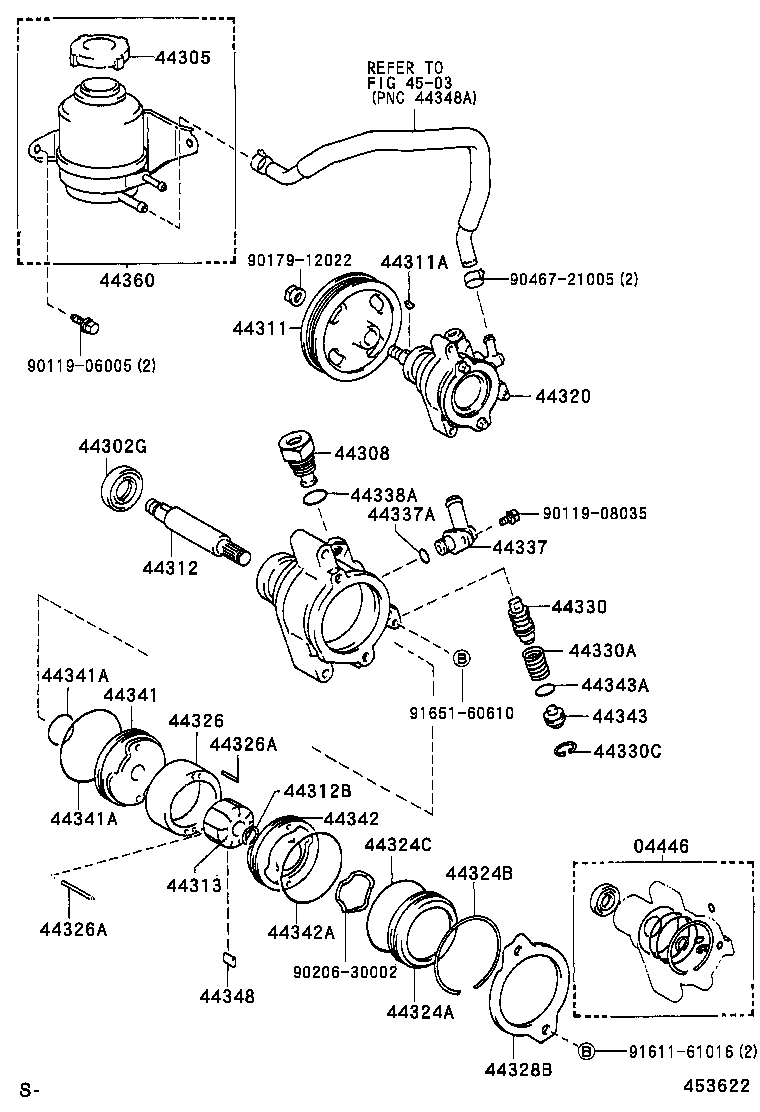

SV25-UEMEK (1988)
Toyota Camry/Vista
(8808- )SV2#,VZV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44305-32030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-22050 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20060 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ無し |
1 | ||
| 44313-22080 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-32041 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30120 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 2 |
1 | ||
| 44325-30100 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ無し |
1 | ||
| 44325-30140 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 4 |
1 | ||
| 44325-30110 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 1 |
1 | ||
| 44325-30130 |
CV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=43,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=43,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14020 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ B |
1 | ||
| 44330-14050 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ E |
1 | ||
| 44330-14040 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ D |
1 | ||
| 44330-14010 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ A |
1 | ||
| 44330-14060 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ F |
1 | ||
| 44330-14030 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ C |
1 | ||
| 44330-20010 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ A |
1 | ||
| 44330-20040 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ D |
1 | ||
| 44330-20050 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ E |
1 | ||
| 44330-20060 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ F |
1 | ||
| 44330-20020 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ B |
1 | ||
| 44330-20030 |
SV21,25..GT,LUM,VE,VL,VR,XT,ZE ﾏｰｸ C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12030 |
SV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 外側 |
1 | ||
| 90301-25001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 外側 |
1 | ||
| 90301-25001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=14.993 |
10 | ||
| 44345-12020 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=14.995 |
10 | ||
| 44345-12010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=14.997 |
10 | ||
| 44345-12040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=14.991 |
10 | ||
| 44345-12050 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 長さ=14.989 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-32040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 44360-32080 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08035 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 90467-21005 | ||||
| 91611-61016 | ||||
| 91651-60610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
