SV25-UEMEK (1988)
Toyota Camry/Vista

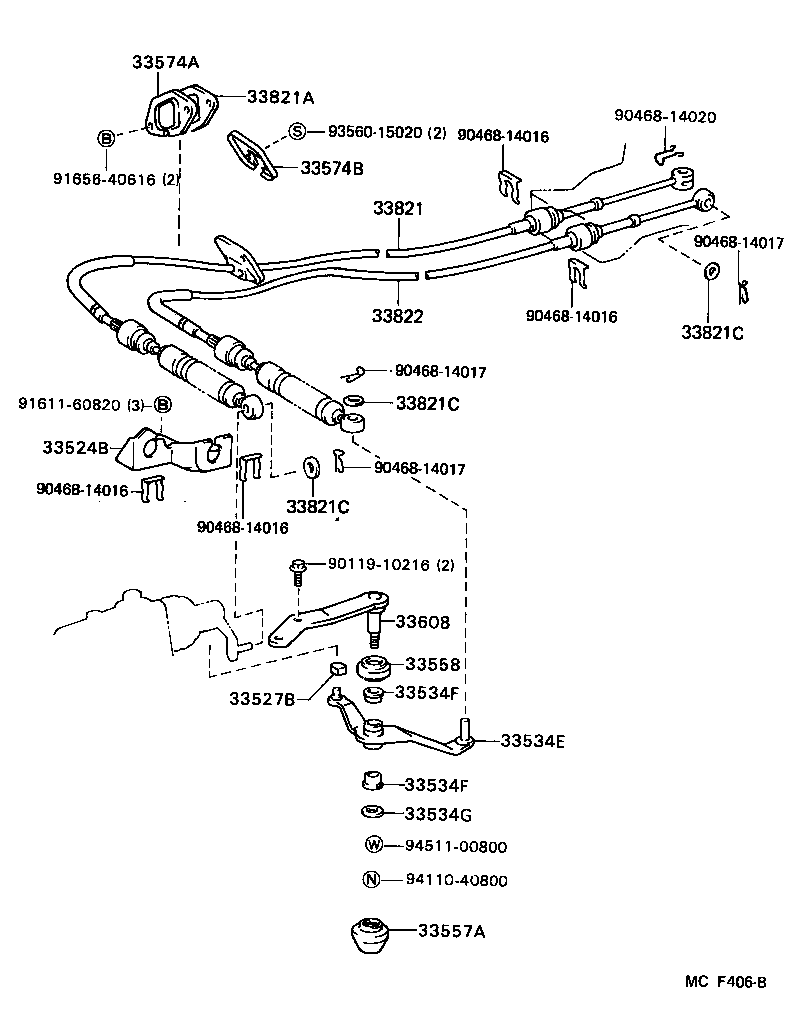

ILLUST NO. 2 OF 2(8808- )SV25,VZV20..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
SV25..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20020 |
SV25,VZV20..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
SV25,VZV20..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32110 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-20010 |
SV25,VZV20..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-32202 |
SV25..5F |
1 | ||
| 33821-32203 |
SV25..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01366 |
CV20,SV2#,VZV20..5F..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-32122 |
SV25..5F |
1 | ||
| 33822-32121 |
SV25..5F |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

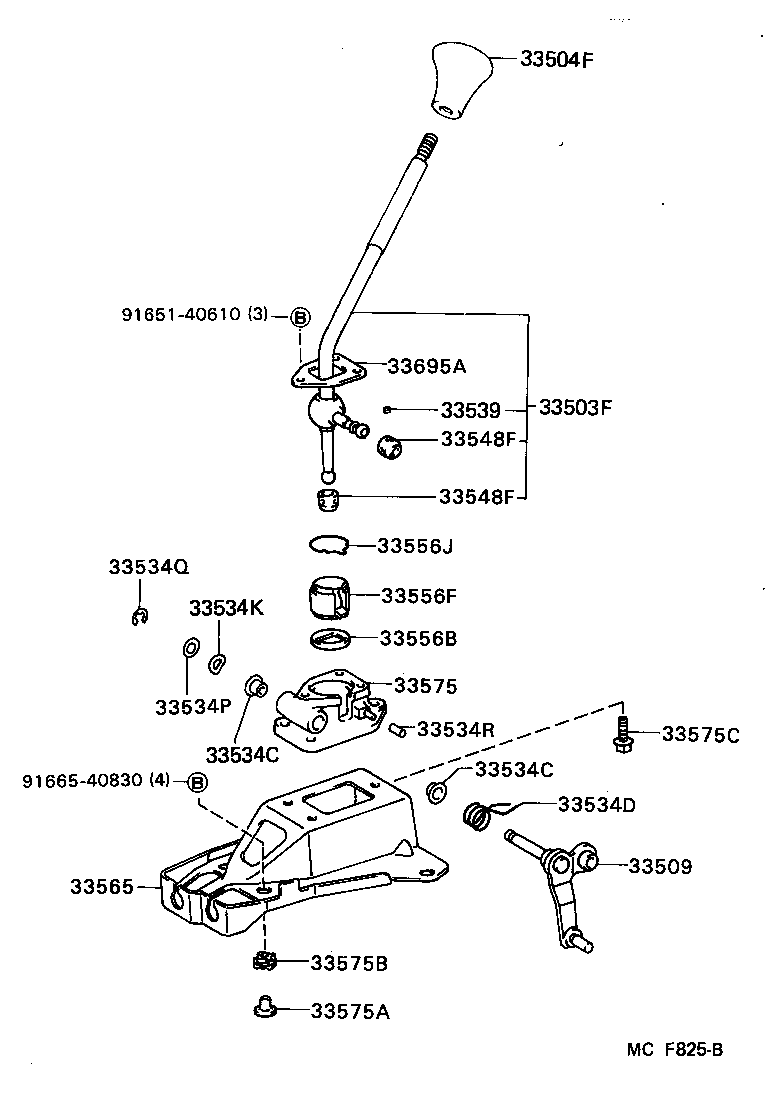

ILLUST NO. 1 OF 2(8808- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32131 |
SV25,VZV20..5F |
1 | ||
| 33503-32132 |
SV25,VZV20..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-24010J0 |
SV22..HT..5F;SV22..SED..5F..(LUM,VE,VR,ZE);CV20,SV21,25..5F..(LUM,VE,VL,VR,VX,XT,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 33504-24010D0 |
SV22..HT..5F;SV22..SED..5F..(LUM,VE,VR,ZE);CV20,SV21,25..5F..(LUM,VE,VL,VR,VX,XT,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 33504-24010B0 |
SV22..HT..5F;SV22..SED..5F..(LUM,VE,VR,ZE);CV20,SV21,25..5F..(LUM,VE,VL,VR,VX,XT,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-32010 |
SV25,VZV20..5F |
1 | ||
| 33509-32011 |
SV25,VZV20..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
SV25,VZV20..5F |
1 | ||
| 90206-12003 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33539-32010 |
SV25,VZV20..5F |
6 | ||
| 33539-12010 |
SV25,VZV20..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
SV25,VZV20..5F |
2 | ||
| 33548-12040 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12030 |
SV25,VZV20..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
SV25,VZV20..5F |
2 | ||
| 33548-12040 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12030 |
SV25,VZV20..5F |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-36018 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33565 - PLATE, CONTROL SHIFT LEVER RETAINER | ||||
| 33565-12030 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-32041 |
SV25,VZV20..5F |
1 | ||
| 33575-32042 |
SV25,VZV20..5F |
1 | ||
| 33575-32043 |
SV25,VZV20..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10020 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575C - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90119-08622 |
CV20,SV2#,VZV20..5F |
3 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-12031 |
CV20,SV2#,VZV20..5F |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||
