SV25-JEMNK (1987)
Toyota Camry/Vista
ILLUST NO. 1 OF 2(8608-8804)5F ; (8804- )SV20,21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12231 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33503-32130 |
SV25 |
1 | ||
| 33503-32131 |
SV25,VZV20..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401054 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 33504-2401052 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 33504-24010D0 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 33504-2401055 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BEIGE,TRIM4# |
1 | ||
| 33504-24010J0 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-32050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33506-32050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-12050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33509-12050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12034 |
SV25,VZV20..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20084 |
SV25,VZV20..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV20..5F |
1 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV20..5F |
1 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33554-12040 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556A - SPACER (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90561-35001 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90561-35001 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
CV20,SV2#,VZV20..5F LWR |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F UPR |
1 | ||
| 33556-12020 |
CV20,SV2#,VZV20..5F 下側 |
1 | ||
| 33556-20020 |
SV25,VZV20..5F |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F 上側 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
CV20,SV2#,VZV20..5F LWR |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F UPR |
1 | ||
| 33556-12020 |
CV20,SV2#,VZV20..5F 下側 |
1 | ||
| 33556-20020 |
SV25,VZV20..5F |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F 上側 |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30003 |
CV20,SV2#,VZV20..5F 厚さ=0.5,ﾏｰｸ C 0R 5,T=0.5,MARK C OR 5 |
1 | ||
| 90564-30005 |
CV20,SV2#,VZV20..5F 厚さ=0.7,ﾏｰｸ E 0R 7,T=0.7,MARK E OR 7 |
1 | ||
| 90564-30008 |
CV20,SV2#,VZV20..5F 厚さ=1.0,ﾏｰｸ H 0R 10,T=1.0,MARK H OR 10 |
1 | ||
| 90564-30004 |
CV20,SV2#,VZV20..5F 厚さ=0.6,ﾏｰｸ D 0R 6,T=0.6,MARK D OR 6 |
1 | ||
| 90564-30007 |
CV20,SV2#,VZV20..5F 厚さ=0.9,ﾏｰｸ G 0R 9,T=0.9,MARK G OR 9 |
1 | ||
| 90564-30011 |
CV20,SV2#,VZV20..5F 厚さ=0.3,ﾏｰｸ A 0R 3,T=0.3,MARK A OR 3 |
1 | ||
| 90564-30005 |
CV20,SV2#,VZV20..5F 厚さ=0.7,ﾏｰｸ E 0R 7 |
1 | ||
| 90564-30010 |
CV20,SV2#,VZV20..5F 厚さ=1.2,ﾏｰｸ L 0R 12,T=1.2,MARK L OR 12 |
1 | ||
| 90564-30006 |
CV20,SV2#,VZV20..5F 厚さ=0.8,ﾏｰｸ F 0R 8 |
1 | ||
| 90564-30009 |
CV20,SV2#,VZV20..5F 厚さ=1.1,ﾏｰｸ K 0R 11 |
1 | ||
| 90564-30004 |
CV20,SV2#,VZV20..5F 厚さ=0.6,ﾏｰｸ D 0R 6 |
1 | ||
| 90564-30009 |
CV20,SV2#,VZV20..5F 厚さ=1.1,ﾏｰｸ K 0R 11,T=1.1,MARK K OR 11 |
1 | ||
| 90564-30011 |
CV20,SV2#,VZV20..5F 厚さ=0.3,ﾏｰｸ A 0R 3 |
1 | ||
| 90564-30012 |
CV20,SV2#,VZV20..5F 厚さ=0.4,ﾏｰｸ B 0R 4,T=0.4,MARK B OR 4 |
1 | ||
| 90564-30010 |
CV20,SV2#,VZV20..5F 厚さ=1.2,ﾏｰｸ L 0R 12 |
1 | ||
| 90564-30006 |
CV20,SV2#,VZV20..5F 厚さ=0.8,ﾏｰｸ F 0R 8,T=0.8,MARK F OR 8 |
1 | ||
| 90564-30012 |
CV20,SV2#,VZV20..5F 厚さ=0.4,ﾏｰｸ B 0R 4 |
1 | ||
| 90564-30008 |
CV20,SV2#,VZV20..5F 厚さ=1.0,ﾏｰｸ H 0R 10 |
1 | ||
| 90564-30003 |
CV20,SV2#,VZV20..5F 厚さ=0.5,ﾏｰｸ C 0R 5 |
1 | ||
| 90564-30007 |
CV20,SV2#,VZV20..5F 厚さ=0.9,ﾏｰｸ G 0R 9 |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10020 |
SV25,VZV20..5F |
4 | ||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12020 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33593-12020 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-12021 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33618-12021 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20,*6-1.00PX24-10 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20,*6-1.00PX24-10 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20 |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||

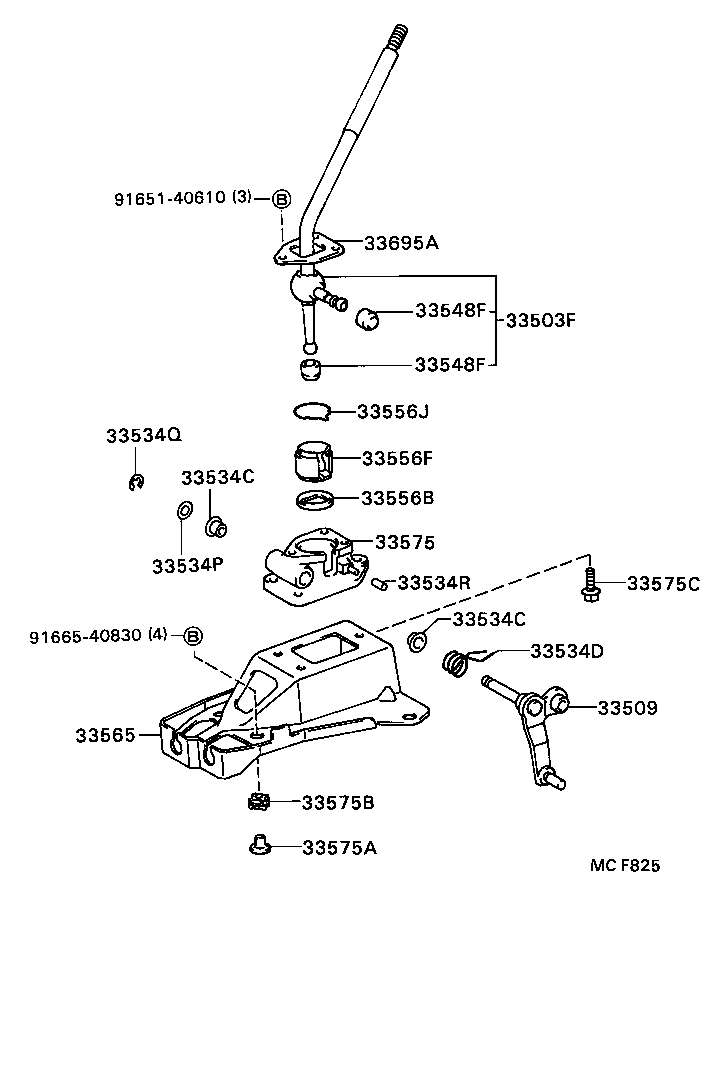

ILLUST NO. 1 OF 2(8804- )SV25,VZV20..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12231 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33503-32130 |
SV25 |
1 | ||
| 33503-32131 |
SV25,VZV20..5F |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-32010 |
SV25,VZV20..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12034 |
SV25,VZV20..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12034 |
SV25,VZV20..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20084 |
SV25,VZV20..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV20..5F |
1 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
SV25,VZV20..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
SV25,VZV20..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
CV20,SV2#,VZV20..5F LWR |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F UPR |
1 | ||
| 33556-12020 |
CV20,SV2#,VZV20..5F 下側 |
1 | ||
| 33556-20020 |
SV25,VZV20..5F |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F 上側 |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-34002 |
SV25,VZV20..5F |
1 | ||
| 33565 - PLATE, CONTROL SHIFT LEVER RETAINER | ||||
| 33565-12030 |
SV25,VZV20..5F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-32040 |
SV25,VZV20..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10020 |
SV25,VZV20..5F |
4 | ||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575C - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90119-08622 |
SV25,VZV20..5F |
3 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-12030 |
SV25,VZV20..5F |
1 | ||
| 33695-12031 |
SV25,VZV20..5F |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||
