SV25-JEMEK (1987)
Toyota Camry/Vista
Production
Oct 1987
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

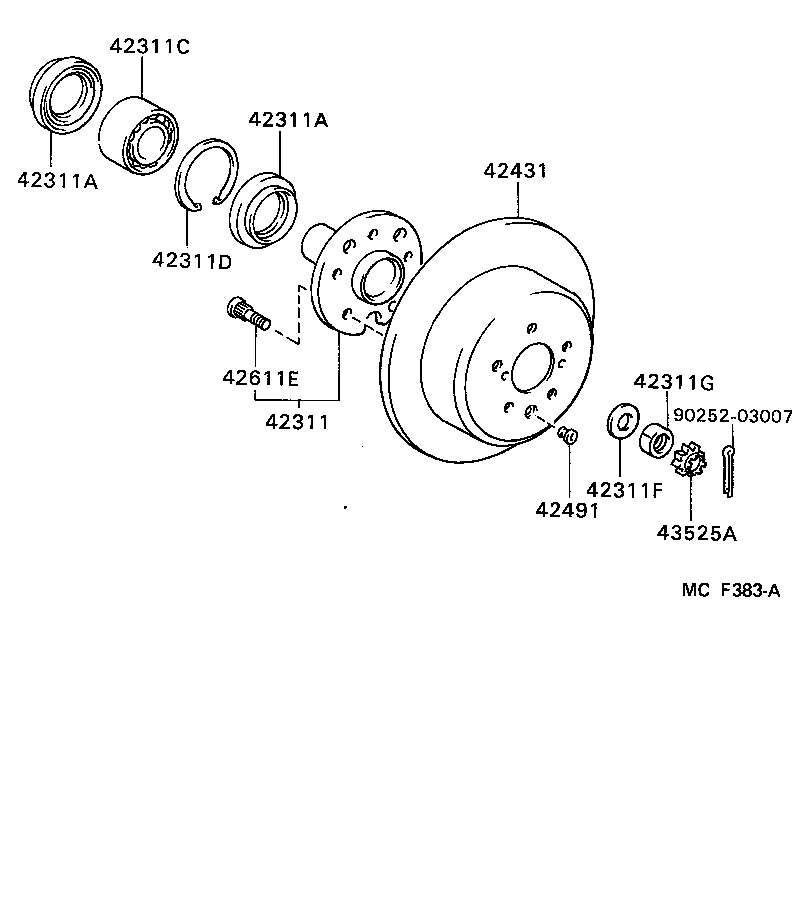

ILLUST NO. 1 OF 2(8710- )SV25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-32030 |
CV20,SV2# |
2 | ||
| 42301-20070 |
SV25 |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52005 |
SV25 OUTER |
1 | ||
| 90311-42018 |
CV20,SV2#,VZV20 |
2 | ||
| 90311-56007 |
SV25 INNER |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52005 |
SV25 OUTER |
1 | ||
| 90311-42018 |
CV20,SV2#,VZV20 |
2 | ||
| 90311-56007 |
SV25 INNER |
1 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-38003 |
SV25 |
1 | ||
| 90369-30044 |
CV20,SV2#,VZV20 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90521-79002 |
SV25 |
1 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20012 |
SV25 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90170-19001 |
SV25 |
2 | ||
| 90179-20003 |
CV20,SV2#,VZV20 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-20100 |
SV25 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CV20,SV2#,VZV20 |
10 | ||
| 90942-02047 |
CV20,SV2#,VZV20 |
5 | ||
| 43525A - CAP, REAR WHEEL ADJUSTING LOCK | ||||
| 43525-20020 |
SV25 |
2 | ||
| Common parts | ||||
| 90252-03007 | ||||

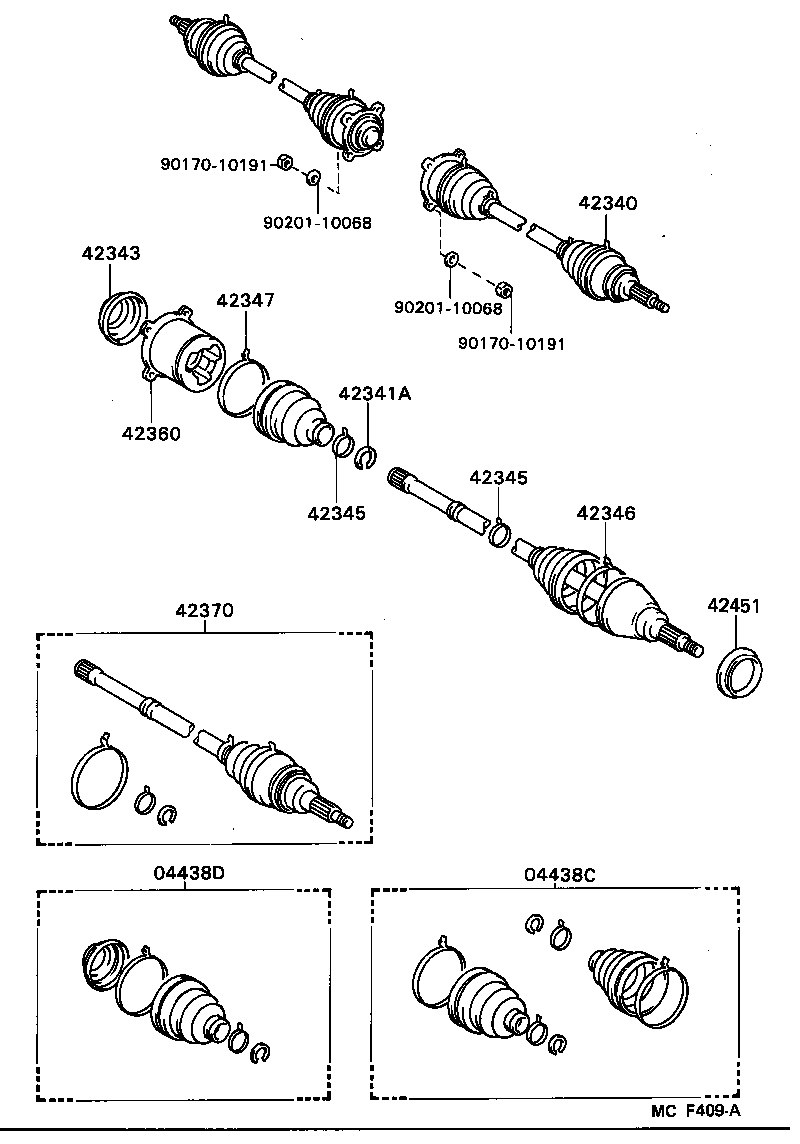

ILLUST NO. 2 OF 2(8710- )SV25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-32010 |
SV25 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04337-14020 |
SV25 |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-32020 |
SV25 ｱﾘ(ESC) |
2 | ||
| 42340-32010 |
SV25 |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
SV25 |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-14010 |
SV25 |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
SV25 |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14010 |
SV25 |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01076 |
SV25 |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
SV25 |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42350-14010 |
SV25 |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-39025 |
SV25 ｱﾘ(ESC) |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-20010 |
SV25 |
2 | ||
| 42451-20010 |
SV25 ｱﾘ(ESC) |
2 | ||
| 42451-20020 |
SV25 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
