SV25-JEMEK (1987)
Toyota Camry/Vista
(8710- )SV25

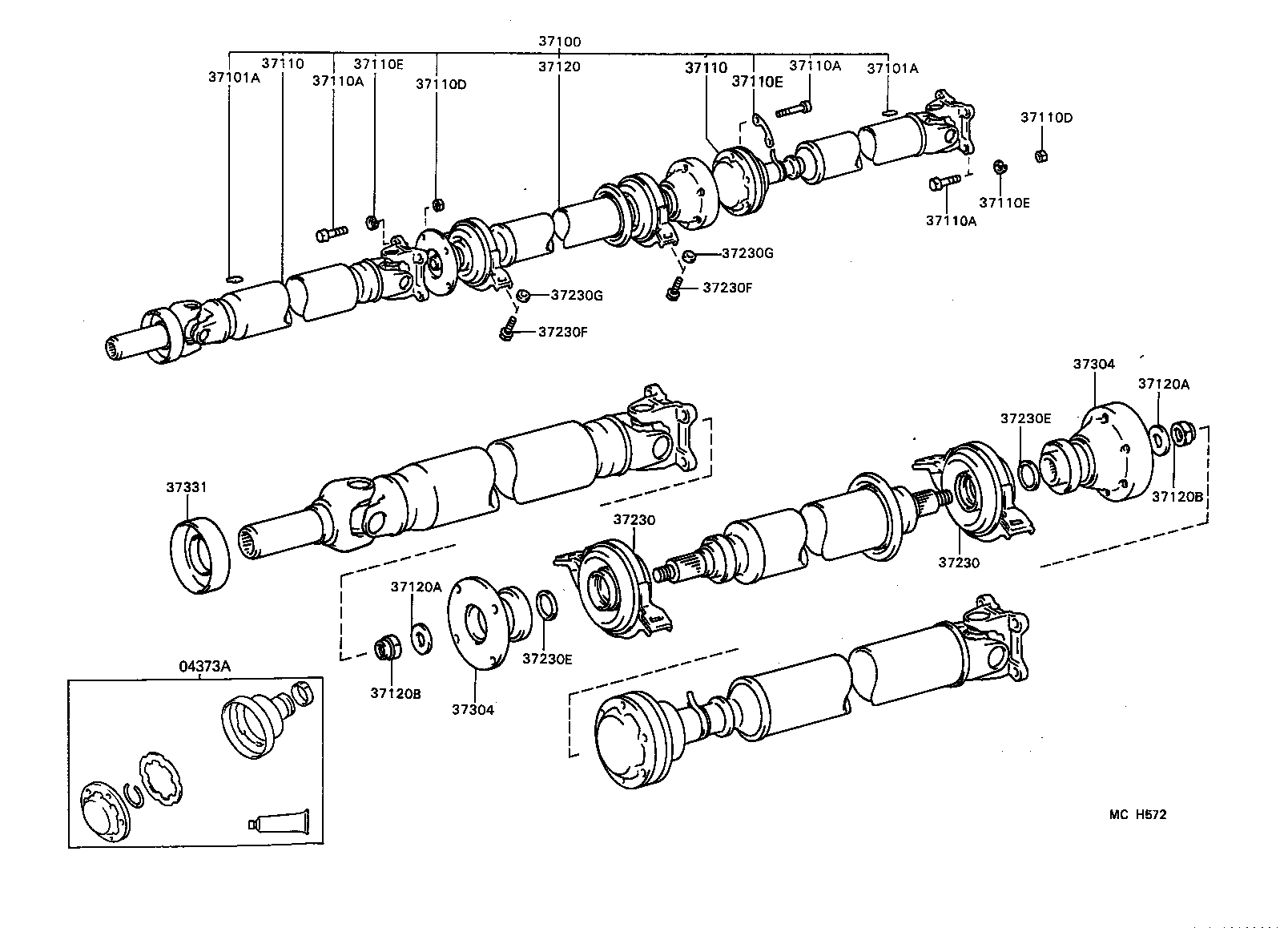

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04373A - BOOT KIT, UNIVERSAL | ||||
| 04373-12010 |
SV25 |
1 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-32020 |
SV25 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
SV25 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
SV25 12G,長さ=24.9 |
1 | ||
| 90937-01148 |
SV25 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
SV25 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
SV25 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
SV25 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
SV25 2G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
SV25 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
SV25 12G,長さ=24.9 |
1 | ||
| 90937-01148 |
SV25 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
SV25 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
SV25 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
SV25 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
SV25 2G,厚さ=2.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-32030 |
SV25 ﾘﾔ |
1 | ||
| 37110-32010 |
SV25 ﾌﾛﾝﾄ |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-32030 |
SV25 ﾘﾔ |
1 | ||
| 37110-32010 |
SV25 ﾌﾛﾝﾄ |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
SV25 *10−1.00PX27−13,FR,RR |
4 | ||
| 90110-08016 |
SV25 *8−1.25PX47−22,CTR |
6 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
SV25 *10−1.00PX27−13,FR,RR |
4 | ||
| 90110-08016 |
SV25 *8−1.25PX47−22,CTR |
6 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
SV25 *10−1.00PX27−13,FR,RR |
4 | ||
| 90110-08016 |
SV25 *8−1.25PX47−22,CTR |
6 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
SV25 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
SV25 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
SV25 FR & RR |
8 | ||
| 43489-12010 |
SV25 CTR |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
SV25 FR & RR |
8 | ||
| 43489-12010 |
SV25 CTR |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
SV25 FR & RR |
8 | ||
| 43489-12010 |
SV25 CTR |
3 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-32010 |
SV25 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
SV25 外径=33.5,厚さ=4.0 |
2 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
SV25 外径=33.5,厚さ=4.0 |
2 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
SV25 |
2 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
SV25 |
2 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-32011 |
SV25 |
2 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-32011 |
SV25 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25005 |
SV25 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25005 |
SV25 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10444 |
SV25 |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10444 |
SV25 |
4 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10083 |
SV25 厚さ=6.5 |
4 | ||
| 90201-10084 |
SV25 厚さ=9.0 |
4 | ||
| 90201-10081 |
SV25 厚さ=4.5 |
4 | ||
| 90201-10095 |
SV25 厚さ=3.2 |
4 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10083 |
SV25 厚さ=6.5 |
4 | ||
| 90201-10084 |
SV25 厚さ=9.0 |
4 | ||
| 90201-10081 |
SV25 厚さ=4.5 |
4 | ||
| 90201-10095 |
SV25 厚さ=3.2 |
4 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-20010 |
SV25 ﾌﾛﾝﾄ |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-20010 |
SV25 ﾌﾛﾝﾄ |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
SV25 |
1 | ||
