SV22-UTPNM (1988)
Toyota Camry/Vista
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-32110 |
CV20,SV21,22,VZV20 |
1 | ||
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-32110 |
CV20,SV21,22,VZV20 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-32070 |
CV20,SV2#,VZV20 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-32060 |
CV20,SV2#,VZV20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-3205102 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT MAROON,TRIM3# |
1 | ||
| 55401-3205103 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT GRAY,TRIM1# |
1 | ||
| 55401-3205104 |
CV20,SV2#..LT,LUM,VC,VE,VL,XT DARK BLUE,TRIM8# |
1 | ||
| 55401-3205104 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55401-3205103 |
CV20,SV2#,VZV20 GRAY,TRIM1# |
1 | ||
| 55401-3205102 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-3207004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55404-3207003 |
CV20,SV2#,VZV20 GRAY,TRIM1# |
1 | ||
| 55404-3207002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-32070 |
CV20,SV2# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
CV20,SV2#,VZV20 |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-3203002 |
CV20,SV2# MAROON,TRIM3# |
1 | ||
| 55432-3203003 |
CV20,SV2# MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-3203004 |
CV20,SV2# DARK BLUE,TRIM8# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55433-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55433-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-3205002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55434-3205004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55434-3205003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-3203001 |
SV25..4FC;CV20,SV21,22,VZV20 BLACK,TRIM1#,3#,8# |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-22030 |
CV20,SV2#,VZV20 |
5 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3206002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55550-3206004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55550-3206003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
CV20,SV2#,VZV20 |
3 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-1405001 |
CV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE BLACK,TRIM1#,3#,8# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
CV20,SV22,25..LT,VC,VL,XT |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-3202004 |
CV20,SV2# DARK BLUE,TRIM8# |
1 | ||
| 55538-3202003 |
CV20,SV2# GRAY,TRIM1# |
1 | ||
| 55538-3202002 |
CV20,SV2# MAROON,TRIM3# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-3201011 |
CV20,SV2# BLACK,BLACK,TRIM1#,3#,8# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-3201011 |
CV20,SV2# BLACK,BLACK,TRIM1#,3#,8# |
2 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
CV20,SV2# BLACK,BLACK,TRIM1#,3#,8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
CV20,SV2#,VZV20 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2004014 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55565-2004012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55565-2004013 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3205103 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55650-3205102 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55650-3205104 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-3205104 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55660-3205103 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55660-3205102 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-3205102 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55670-3205104 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55670-3205103 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030D0 |
CV20,SV2# MAROON,TRIM3# |
1 | ||
| 55680-14030B0 |
SV21..SED;CV20,SV22,25;SV21..HT..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-14030J0 |
CV20,SV2# DARK BLUE,TRIM8# |
1 | ||
| 55680-14030B0 |
CV20,SV2# MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-14030D0 |
SV21..SED;CV20,SV22,25;SV21..HT..(GT,VE) MAROON,TRIM3# |
1 | ||
| 55680-14030J0 |
SV21..SED;CV20,SV22,25;SV21..HT..(GT,VE) DARK BLUE,TRIM8# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-3205002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55961-3205004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55961-3205003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55962-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55962-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55981-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55981-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55982-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55982-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90167-50002 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06009 | ||||
| 90254-04016 | ||||
| 90467-14002 | ||||
| 90468-04087 | ||||
| 90468-04106 | ||||
| 90468-05047 | ||||
| 91665-60820 | ||||
| 93540-23006 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||

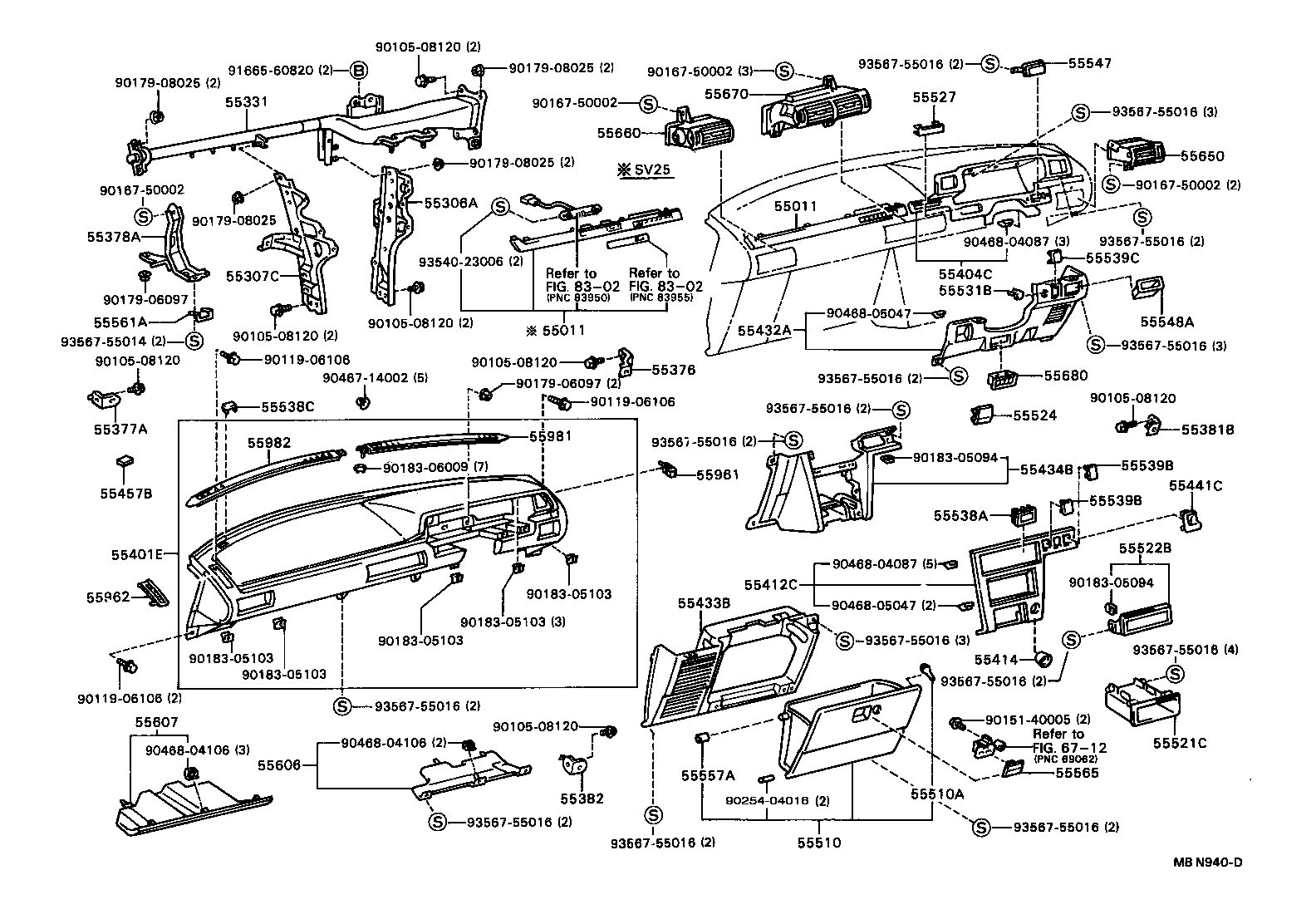

| Linked diagrams | ||||
| 6712 | ||||
| 8302 | ||||
