SV22-UTMMM (1988)
Toyota Camry/Vista

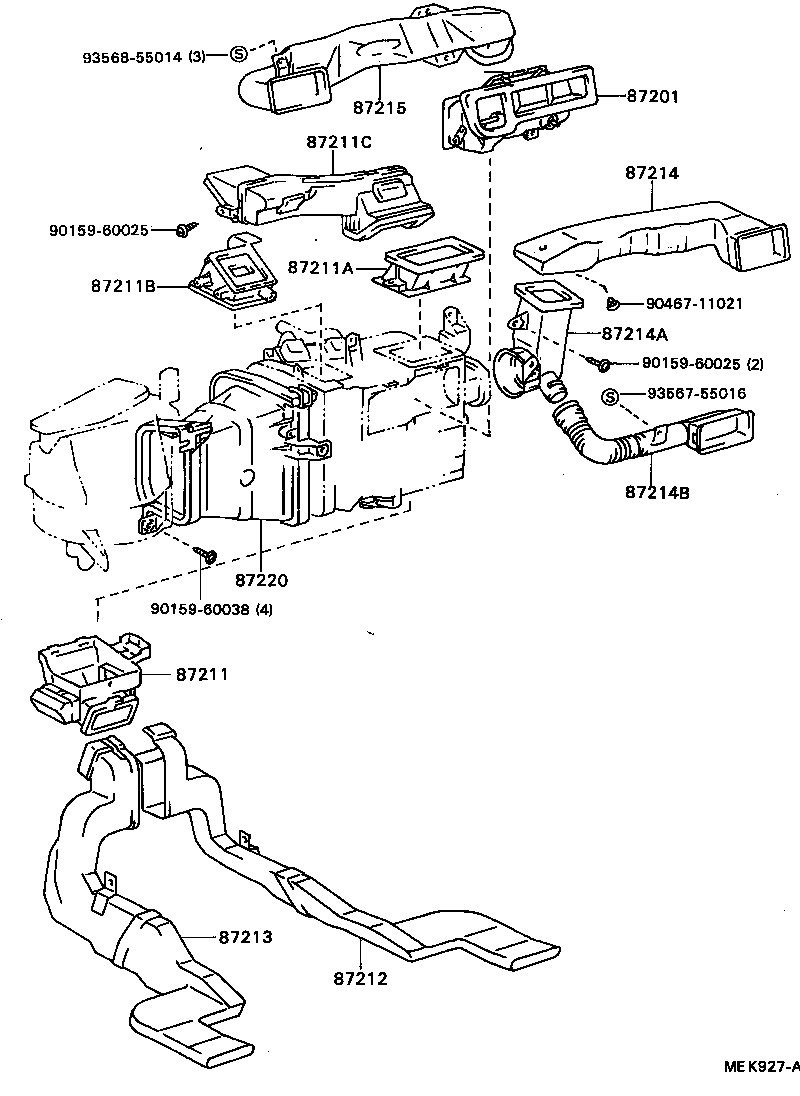

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-32130 |
CV20,SV2#,VZV20 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-32160 |
CV20,SV2#,VZV20 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-32180 |
CV20,SV2#,VZV20 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87201-32200 |
CV20,SV2#,VZV20 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-32010 |
CV20,SV21,22,VZV20 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55084-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55085-32070 |
CV20,SV2# |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55088-32041 |
CV20,SV2# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-32031 |
CV20,SV2#,VZV20 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-32010 |
CV20,SV2# |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90159-60038 | ||||
| 90467-11021 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

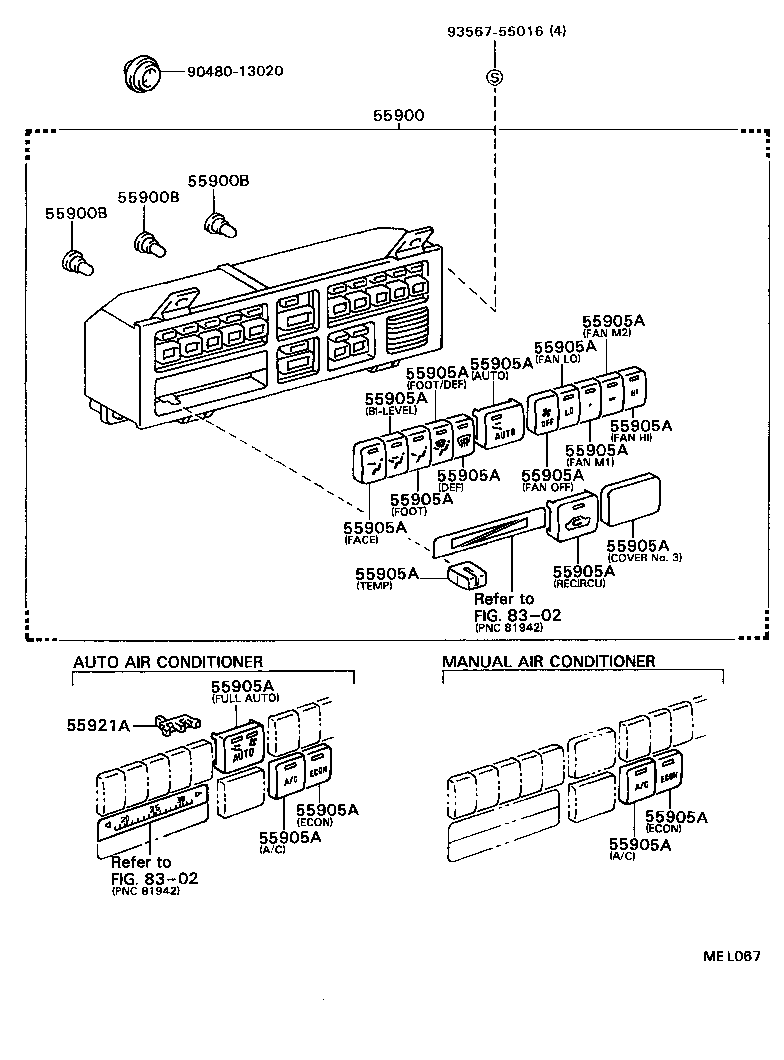

ILLUST NO. 1 OF 3(8808- )GT,LUM,VE,VL,VR,VX,XT,ZE,ZX
PUSH CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-32180 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-32150 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32250 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN OFF |
1 | ||
| 55905-32220 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32280 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M2 |
1 | ||
| 55905-32180 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32210 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32260 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN LO |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55905-32200 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX BI-LEVEL |
1 | ||
| 55905-32320 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX TEMP |
1 | ||
| 55905-32290 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN H1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32350 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX RECIRCU |
1 | ||
| 55905-32230 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32380 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX COVER,NO.3 |
1 | ||
| 55905-32370 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905-32270 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX FAN M1 |
1 | ||
| 55905-32330 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32340 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32360 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX FULL AUTO |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-32010 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 90480-13020 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

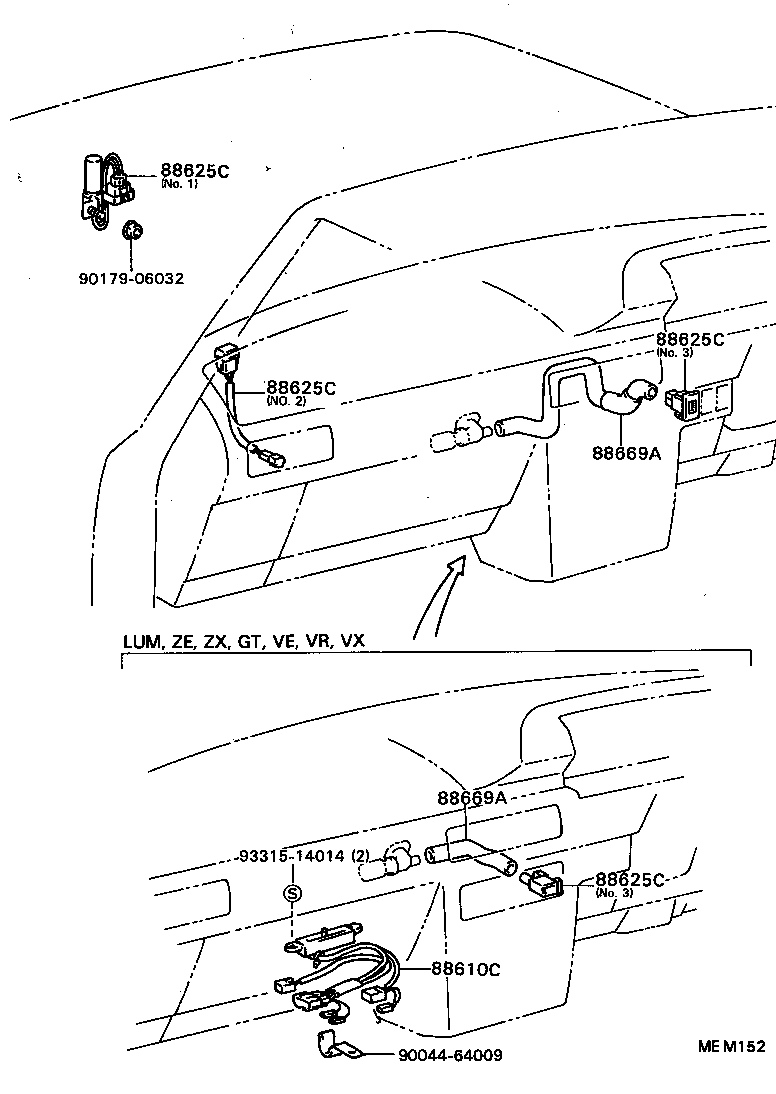

ILLUST NO. 3 OF 3(8808- )GT,LUM,VE,VL,VR,VX,XT,ZE,ZX
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-32061 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32060 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.1 |
1 | ||
| 88625-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.2 |
1 | ||
| 88625-20130 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32060 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.1 |
1 | ||
| 88625-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.2 |
1 | ||
| 88625-20130 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32060 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.1 |
1 | ||
| 88625-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.2 |
1 | ||
| 88625-20130 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32060 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.1 |
1 | ||
| 88625-32070 |
CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE NO.2 |
1 | ||
| 88625-20130 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX NO.3 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-32020 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-32020 |
CV20,SV2#..GT,LUM,VE,VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90179-06032 | ||||
| 93315-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
