SV22-UTMMM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

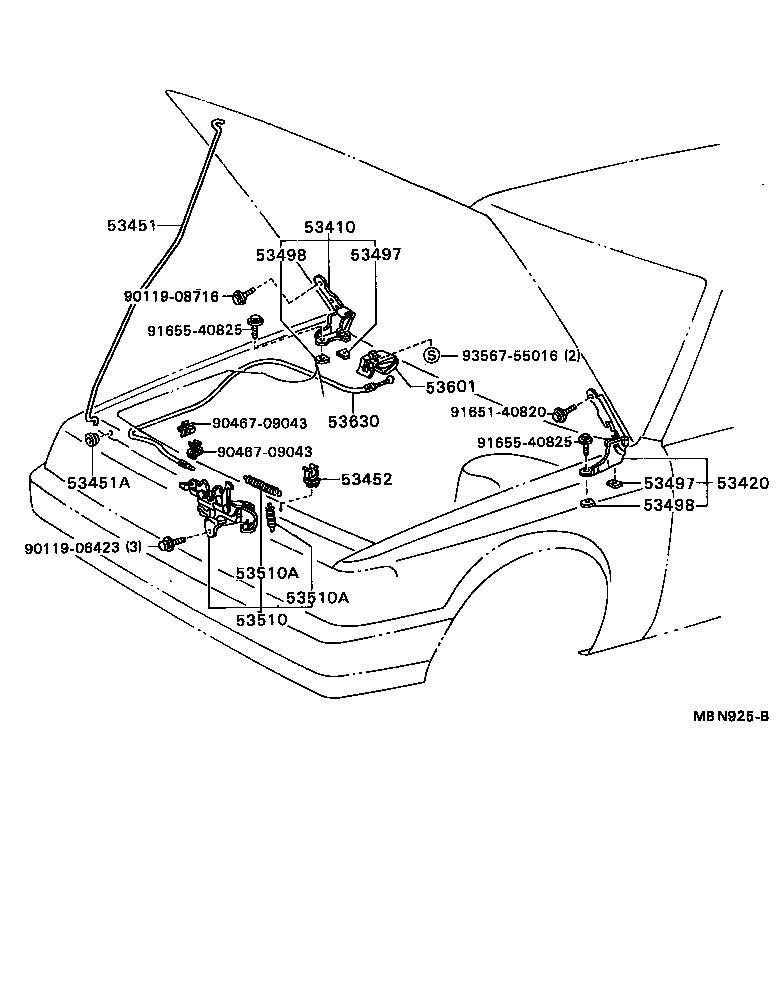

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 9011906423 9011908716 9046709043 9046709043 9165140820 9165540825 9165540825 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-32031

CV20,SV2#,VZV20

 1
53420 - HINGE ASSY, HOOD, LH
53420-32031

CV20,SV2#,VZV20

 1
53451 - ROD, HOOD SUPPORT
53451-32040

CV20,SV2#,VZV20

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

CV20,SV2#,VZV20

 1
53452 - HOLDER, HOOD STAY
53452-32010

CV20,SV2#,VZV20

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

CV20,SV2#,VZV20..HT

 2
53497 - PAD, HOOD HINGE, NO.1
53497-17011

CV20,SV2#,VZV20..HT

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12011

CV20,SV2#,VZV20..HT

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12011

CV20,SV2#,VZV20..HT

 2
53510 - LOCK ASSY, HOOD
53510-32060

CV20,SV2#,VZV20..HT

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20054

CV20,SV2#,VZV20

線径=2.0,ｺｲﾙ巻数=17,L=60,WD=14.5

 1
90506-09029

CV20,SV2#,VZV20

線径=0.9,L=39.6,WD=9.0

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20054

CV20,SV2#,VZV20

線径=2.0,ｺｲﾙ巻数=17,L=60,WD=14.5

 1
90506-09029

CV20,SV2#,VZV20

線径=0.9,L=39.6,WD=9.0

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1002012

CV20,SV2#,VZV20

MAROON,TRIM3#

 1
53601-1002024

CV20,SV2#,VZV20

DARK BLUE,TRIM8#

 1
53601-10020D0

CV20,SV2#,VZV20

MAROON,TRIM3#

 1
53601-1002013

CV20,SV2#,VZV20

MEDIUM GRAY,TRIM1#

 1
53601-10020J0

CV20,SV2#,VZV20

DARK BLUE,TRIM8#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-32050

CV20,SV2#,VZV20

 1
Common parts
90119-06423
90119-08716
90467-09043
91651-40820
91655-40825
93567-55016
