SV22-UTMEM (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
4SFI
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CV20,SV2#..HT

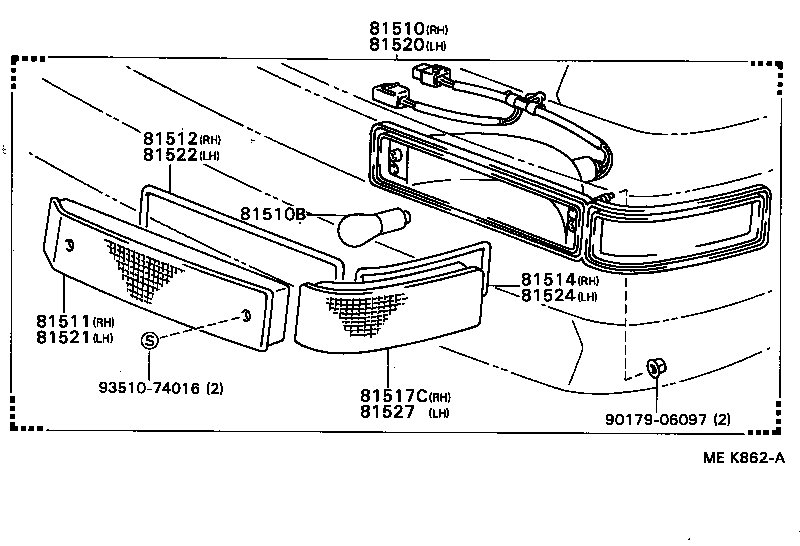

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-39705 |
CV20,SV2#..HT |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-32081 |
CV20,SV2#..HT |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-32081 |
CV20,SV2#..HT |
1 | ||
| 81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH | ||||
| 81514-32081 |
CV20,SV2#..HT |
1 | ||
| 81517C - LENS, FRONT TURN SIGNAL LAMP SIDE, RH | ||||
| 81517-32081 |
CV20,SV2#..HT |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-39705 |
CV20,SV2#..HT |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-32081 |
CV20,SV2#..HT |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-32081 |
CV20,SV2#..HT |
1 | ||
| 81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH | ||||
| 81514-32081 |
CV20,SV2#..HT |
1 | ||
| 81527 - LENS, FRONT TURN SIGNAL | ||||
| 81527-32081 |
CV20,SV2#..HT |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 93510-74016 | ||||
