SV22-UTMEM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )VZV20..4FC ; (8908- )LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

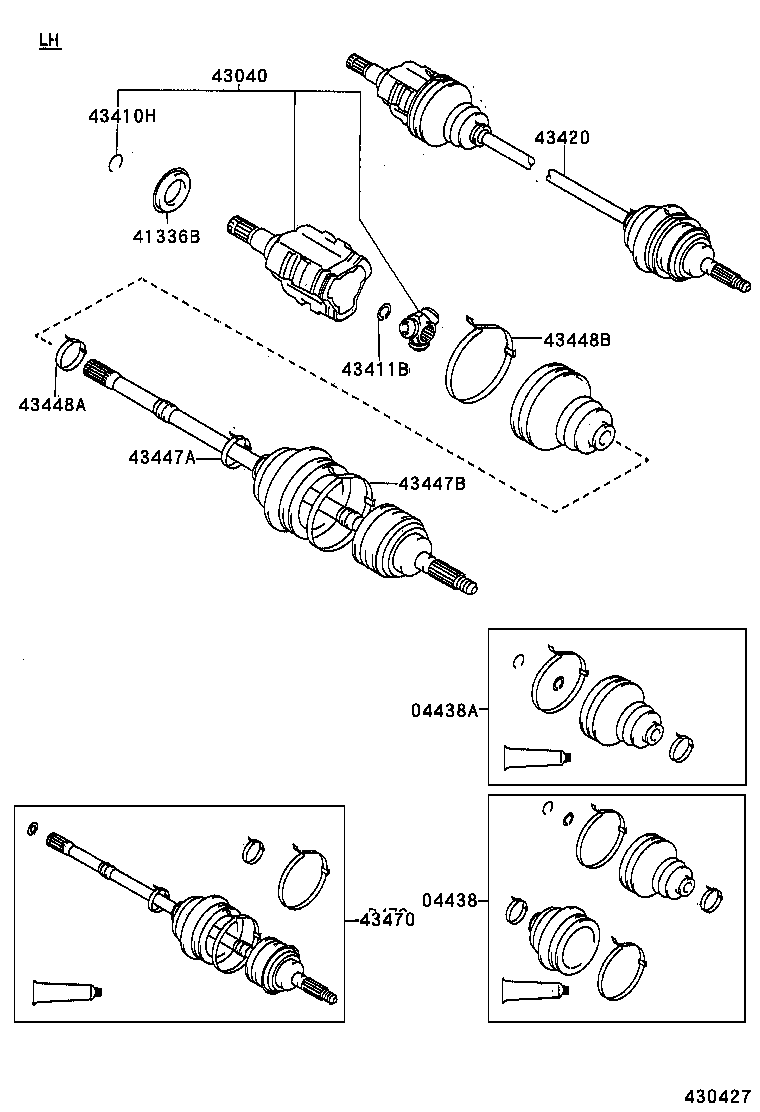

diagram 04438 04438A 41336B 43040 43410H 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12080

SV22

 1
04438-12120

SV22

 1
04438-12031

SV22

 2
04438-12190

SV22;SV21..4FC..(LUM,VE,VX,ZX)

右側

 1
04438-12170

SV22;SV21..4FC..(LUM,VE,VX,ZX)

左側

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12070

SV22

 2
04438-12050

SV22

ﾌﾞｰﾂ外径=94.5&38

 2
04438-12160

SV22

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-32020

SV22

LH

 1
41336-20011

CV20,SV21,22

RH

 1
41336-32020

VZV20..4FC;CV20,SV21,22

LH

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-20010

SV22

 1
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

SV22

 1
90521-27005

CV20,SV21,22

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32030

SV22

 1
43420-20170

SV22

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

SV22

 1
90949-01076

SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

SV22,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV22,25

 1
42345-14020

SV22

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29135

SV22

 1
43470-39025

SV22

 2

(8808-8908)CV20,VZV20..4FC ; (8808-8908)SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

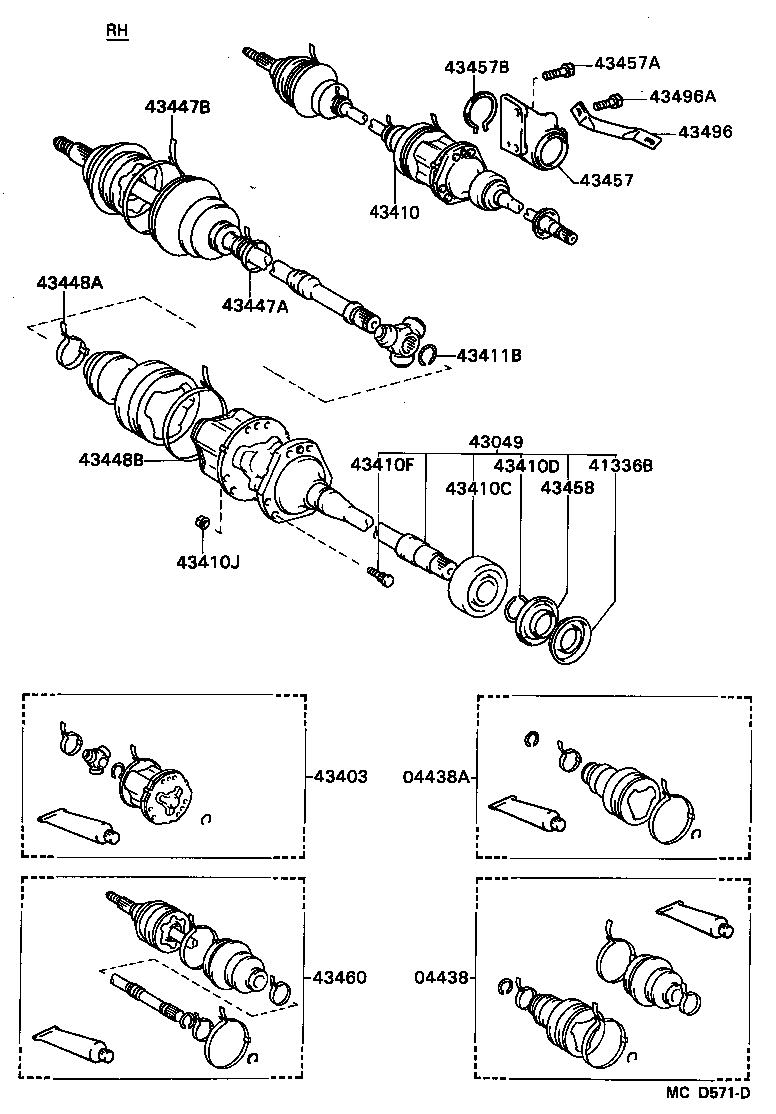

diagram 04438 04438A 41336B 43049 43403 43410 43410C 43410D 43410F 43410J 43411B 43447A 43447B 43448A 43448B 43457 43457A 43457B 43458 43460 43496 43496A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12080

SV22

 1
04438-12120

SV22

 1
04438-12031

SV22

 2
04438-12190

SV22;SV21..4FC..(LUM,VE,VX,ZX)

右側

 1
04438-12170

SV22;SV21..4FC..(LUM,VE,VX,ZX)

左側

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12070

SV22

 2
04438-12050

SV22

ﾌﾞｰﾂ外径=94.5&38

 2
04438-12160

SV22

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-32020

SV22

LH

 1
41336-20011

CV20,SV21,22

RH

 1
41336-32020

VZV20..4FC;CV20,SV21,22

LH

 1
43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE
43049-32020

SV22

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39016

SV22

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32040

SV22

 1
43410-32170

SV22

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90369-36001

CV20,SV21,22

 1
90369-36001

CV20,SV21,22

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
90520-33008

VZV20..4FC;CV20,SV21,22

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

SV22

 6
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

SV22

 12
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

SV22

 1
90949-01076

SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

SV22,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV22,25

 1
42345-14020

SV22

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-20022

SV21,22

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10202

CV20,SV21,22,VZV20

*10−1.25PX22−19.5

 2
90105-10202

SV21,22,VZV20

*10−1.25PX22−19.5

 2
90119-10461

CV20,SV21,22,VZV20

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

VZV20..4FC;CV20,SV21,22

 1
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

VZV20..4FC;CV20,SV21,22

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29135

SV22

 1
43470-39025

SV22

 1

(8808-8908)CV20,VZV20..4FC ; (8808-8908)SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

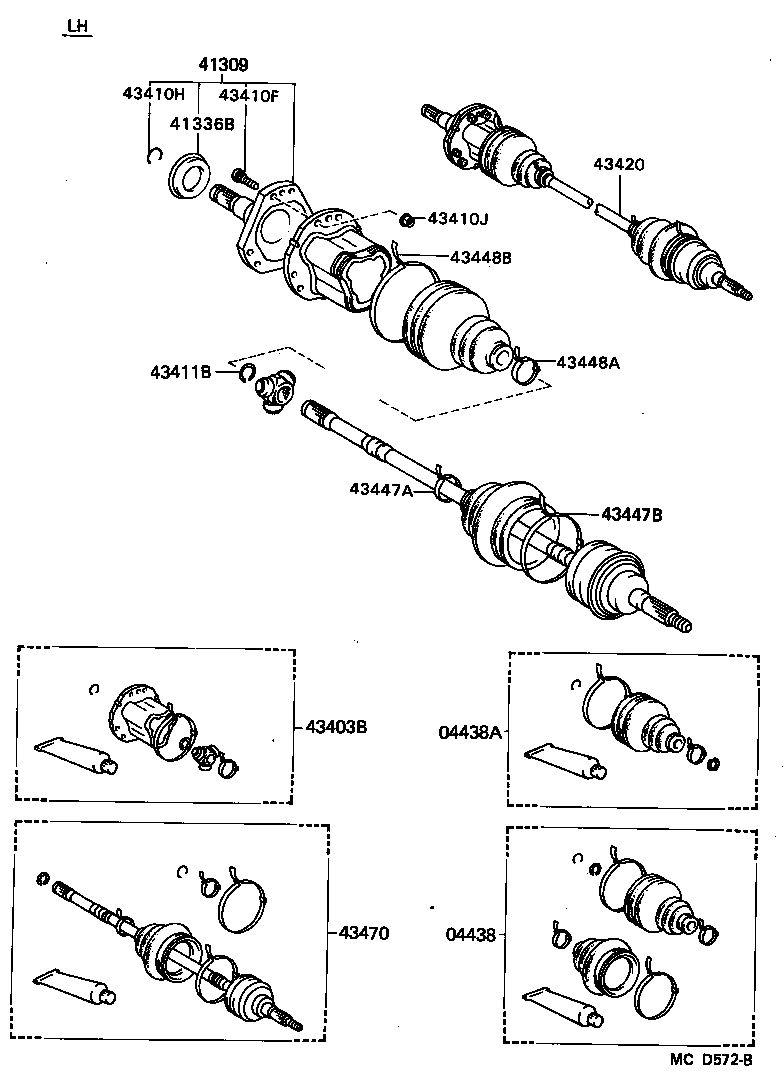

diagram 04438 04438A 41309 41336B 43403B 43410F 43410H 43410J 43411B 43420 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12080

SV22

 1
04438-12120

SV22

 1
04438-12031

SV22

 2
04438-12190

SV22;SV21..4FC..(LUM,VE,VX,ZX)

右側

 1
04438-12170

SV22;SV21..4FC..(LUM,VE,VX,ZX)

左側

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12070

SV22

 2
04438-12050

SV22

ﾌﾞｰﾂ外径=94.5&38

 2
04438-12160

SV22

 2
41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309-32010

SV22

 1
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-32020

SV22

LH

 1
41336-20011

CV20,SV21,22

RH

 1
41336-32020

VZV20..4FC;CV20,SV21,22

LH

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-39016

SV22

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

SV22

 6
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

SV22

 1
90521-27005

CV20,SV21,22

 1
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

SV22

 12
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32030

SV22

 1
43420-20170

SV22

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

SV22

 1
90949-01076

SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CV20,VZV20..4FC;SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,VZV20

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV22,25

 1
42345-14020

SV22

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29135

SV22

 1
43470-39025

SV22

 2

(8908- )VZV20..4FC ; (8908- )LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

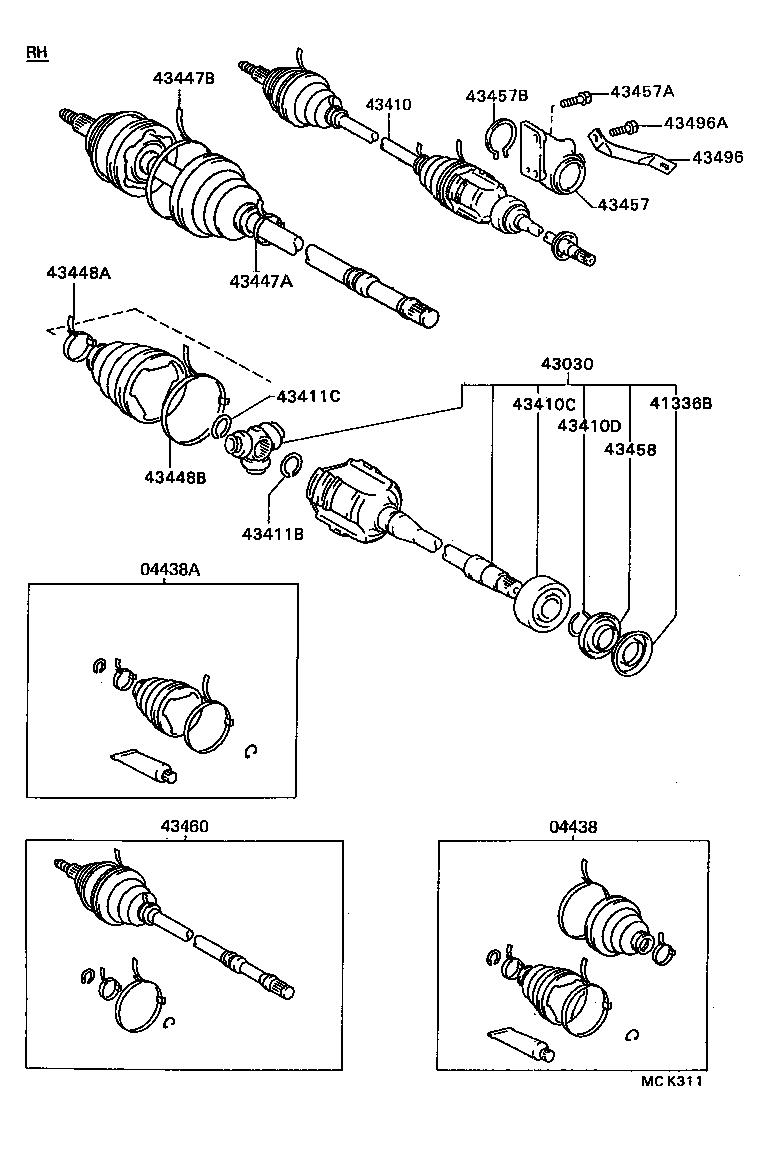

diagram 04438 04438A 41336B 43030 43410 43410C 43410D 43411B 43411C 43447A 43447B 43448A 43448B 43457 43457A 43457B 43458 43460 43496 43496A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12080

SV22

 1
04438-12120

SV22

 1
04438-12031

SV22

 2
04438-12190

SV22;SV21..4FC..(LUM,VE,VX,ZX)

右側

 1
04438-12170

SV22;SV21..4FC..(LUM,VE,VX,ZX)

左側

 1
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12070

SV22

 2
04438-12050

SV22

ﾌﾞｰﾂ外径=94.5&38

 2
04438-12160

SV22

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-32020

SV22

LH

 1
41336-20011

CV20,SV21,22

RH

 1
41336-32020

VZV20..4FC;CV20,SV21,22

LH

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-32030

SV22

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32040

SV22

 1
43410-32170

SV22

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90369-36001

CV20,SV21,22

 1
90369-36001

CV20,SV21,22

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
90520-33008

VZV20..4FC;CV20,SV21,22

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

SV22,25

 1
90520-22005

SV22,25

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

SV22,25,VZV20

 1
42345-14010

CV20,VZV20..4FC;SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,25

 1
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

SV22

 1
90949-01076

SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CV20,VZV20..4FC;SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX

 1
42345-14010

SV22,VZV20

 1
90949-01078

SV22,25

 1
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01076

SV22,25

 1
42345-14020

SV22

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-20022

SV21,22

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10202

CV20,SV21,22,VZV20

*10−1.25PX22−19.5

 2
90105-10202

SV21,22,VZV20

*10−1.25PX22−19.5

 2
90119-10461

CV20,SV21,22,VZV20

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

VZV20..4FC;CV20,SV21,22

 1
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

VZV20..4FC;CV20,SV21,22

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29135

SV22

 1
43470-39025

SV22

 1
