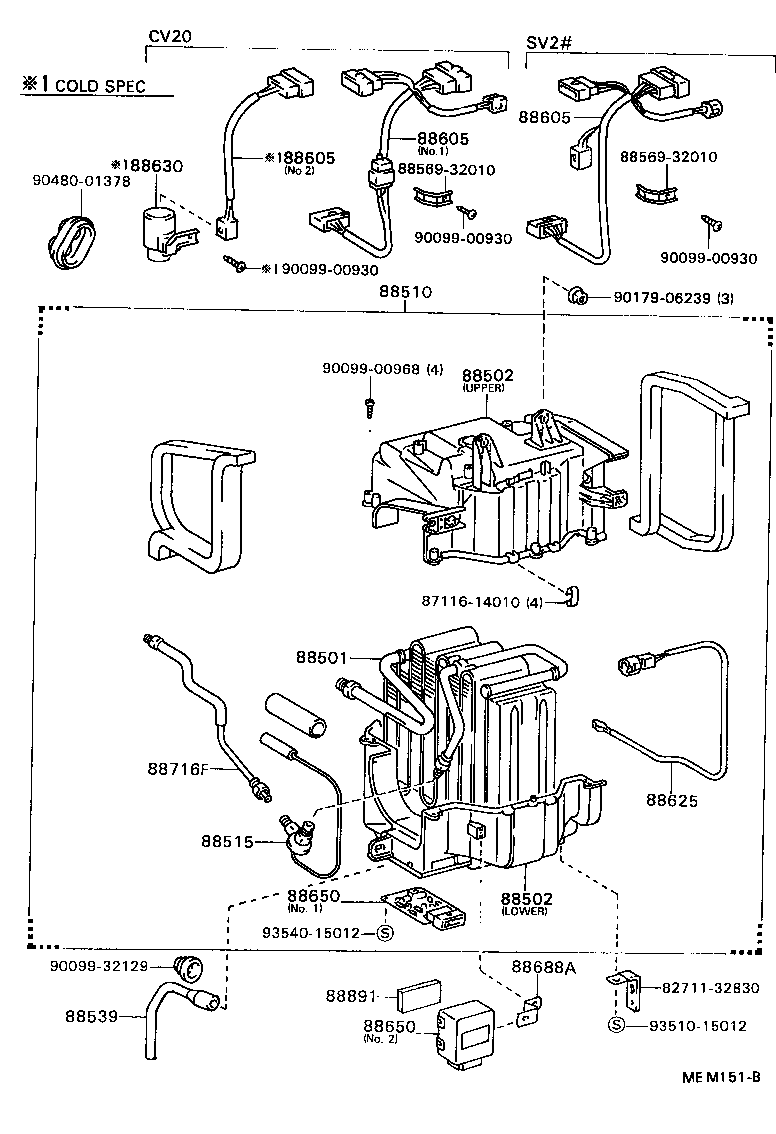

SV22-UEPNM (1988)
Toyota Camry/Vista
(8808- )CV20,SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-32040 |
SV22..SED..(VL,XT) |
1 | ||
| 88501-32040 |
SV22..SED..VL |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-32030 |
SV22..SED..(VL,XT) UPPER |
1 | ||
| 88502-32040 |
SV22..SED..(VL,XT) LOWER |
1 | ||
| 88502-32030 |
SV22..SED..VL UPPER |
1 | ||
| 88502-32040 |
SV22..SED..VL LOWER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-32030 |
SV22..SED..(VL,XT) UPPER |
1 | ||
| 88502-32040 |
SV22..SED..(VL,XT) LOWER |
1 | ||
| 88502-32030 |
SV22..SED..VL UPPER |
1 | ||
| 88502-32040 |
SV22..SED..VL LOWER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-32230 |
SV22..SED..(VL,XT) |
1 | ||
| 88510-32230 |
SV22..SED..VL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
SV22..SED..VL |
1 | ||
| 88515-16040 |
SV22..SED..(VL,XT) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22110 |
SV22..SED..(VL,XT) |
1 | ||
| 88539-22110 |
SV22..SED..VL |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-32510 |
SV22..SED..4FC..(VL,XT) |
1 | ||
| 88605-32510 |
SV22..SED..4FC..VL |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-32510 |
SV22..SED..4FC..(VL,XT) |
1 | ||
| 88605-32510 |
SV22..SED..4FC..VL |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-32510 |
SV22..SED..4FC..(VL,XT) |
1 | ||
| 88605-32510 |
SV22..SED..4FC..VL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-32040 |
SV22..SED..VL |
1 | ||
| 88625-32040 |
SV22..SED..(VL,XT) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-32110 |
SV22..SED..(VL,XT) NO.1(MAIN) |
1 | ||
| 88650-32110 |
SV22..SED..4FC..VL NO.1(MAIN) |
1 | ||
| 88650-32110 |
SV22..SED..4FC..(VL,XT) NO.1(MAIN) |
1 | ||
| 88650-32260 |
SV22..SED..4FC..(VL,XT) NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-32110 |
SV22..SED..(VL,XT) NO.1(MAIN) |
1 | ||
| 88650-32110 |
SV22..SED..4FC..VL NO.1(MAIN) |
1 | ||
| 88650-32110 |
SV22..SED..4FC..(VL,XT) NO.1(MAIN) |
1 | ||
| 88650-32260 |
SV22..SED..4FC..(VL,XT) NO.2 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-32180 |
SV22..SED..4FC..VL |
1 | ||
| 88688-32180 |
SV22..SED..4FC..(VL,XT) |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-32270 |
SV22..SED..(VL,XT) |
1 | ||
| 88716-32270 |
SV22..SED..VL |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-32060 |
SV22..SED..4FC..(VL,XT) |
1 | ||
| 88891-32060 |
SV22..SED..4FC..VL |
1 | ||
| Common parts | ||||
| 82711-32830 | ||||
| 87116-14010 | ||||
| 88569-32010 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90179-06239 | ||||
| 90480-01378 | ||||
| 93510-15012 | ||||
| 93540-15012 | ||||
