SV22-UEPNM (1988)
Toyota Camry/Vista

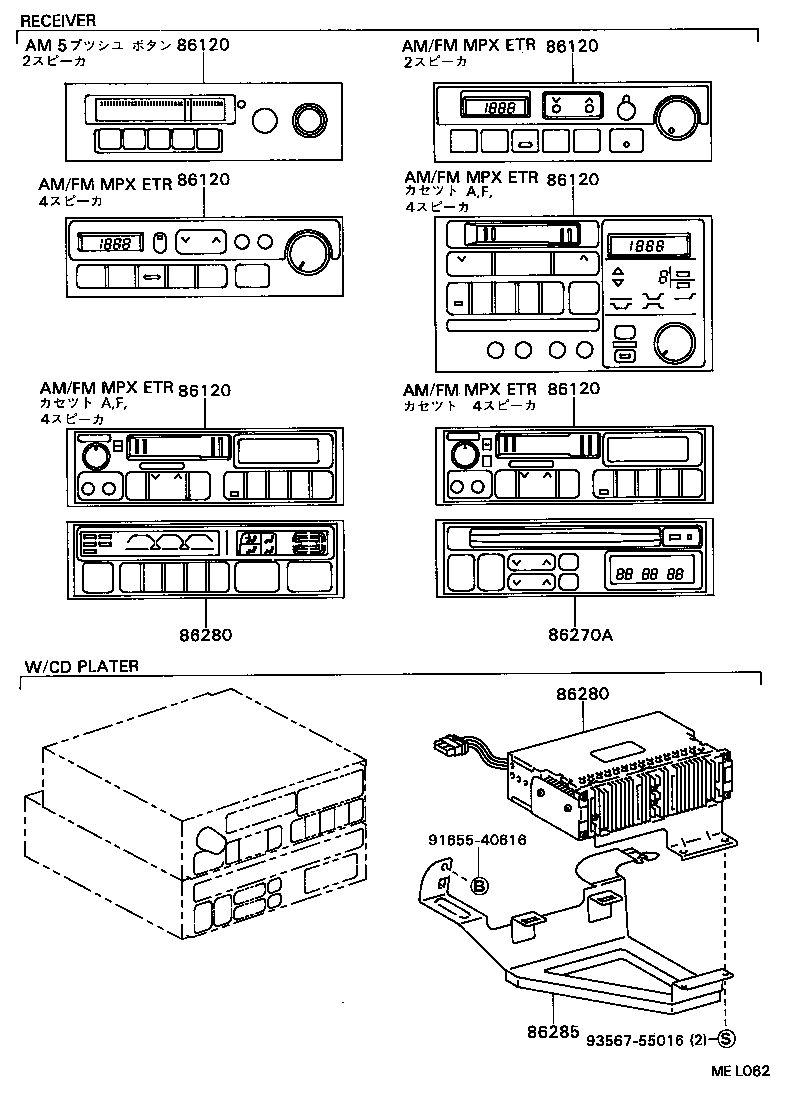

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32320 |
CV20,SV22..VL AM/FM MPX ETR ｶｾﾂﾄ A.F. 2DIN & ｱﾘ(4ｽﾋﾟ-ｶ) |
1 | ||
| 86120-30750 |
CV20,SV2#..LUM,VE,VL,XT FUJITSU TEN,AM/FM MPX ETR 1DIN & ｱﾘ(2ｽﾋﾟ-ｶ) |
1 | ||
| Common parts | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||

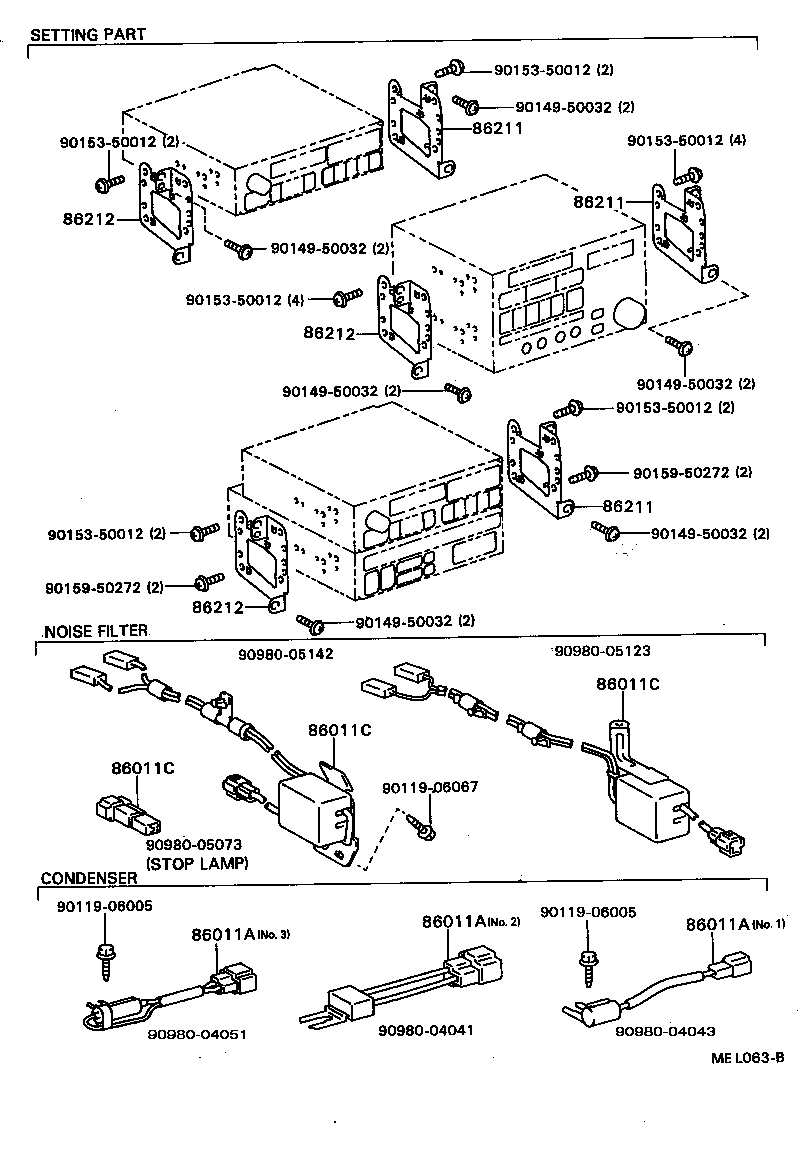

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
SV22,25..LT,VC,VL,XT NO.3 |
1 | ||
| 90980-04041 |
SV2#,VZV20 NO.2 |
1 | ||
| 90980-04051 |
SV22..VL NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
SV22,25..LT,VC,VL,XT NO.3 |
1 | ||
| 90980-04041 |
SV2#,VZV20 NO.2 |
1 | ||
| 90980-04051 |
SV22..VL NO.1 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
SV22,25..LT,VC,VL,XT NO.3 |
1 | ||
| 90980-04041 |
SV2#,VZV20 NO.2 |
1 | ||
| 90980-04051 |
SV22..VL NO.1 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
SV22..SED..VL |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
SV22..SED..VL |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
CV20,SV22..SED..VL |
1 | ||
| 90980-05123 |
SV22..SED..VL |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-32051 |
CV20,SV2#,VZV20 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-32051 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90149-50032 | ||||
| 90153-50012 | ||||
| 90159-50272 | ||||
| 90980-04041 | ||||
| 90980-04043 | ||||
| 90980-04051 | ||||
| 90980-05073 | ||||
| 90980-05123 | ||||
| 90980-05142 | ||||
