SV22-UEPMM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV22

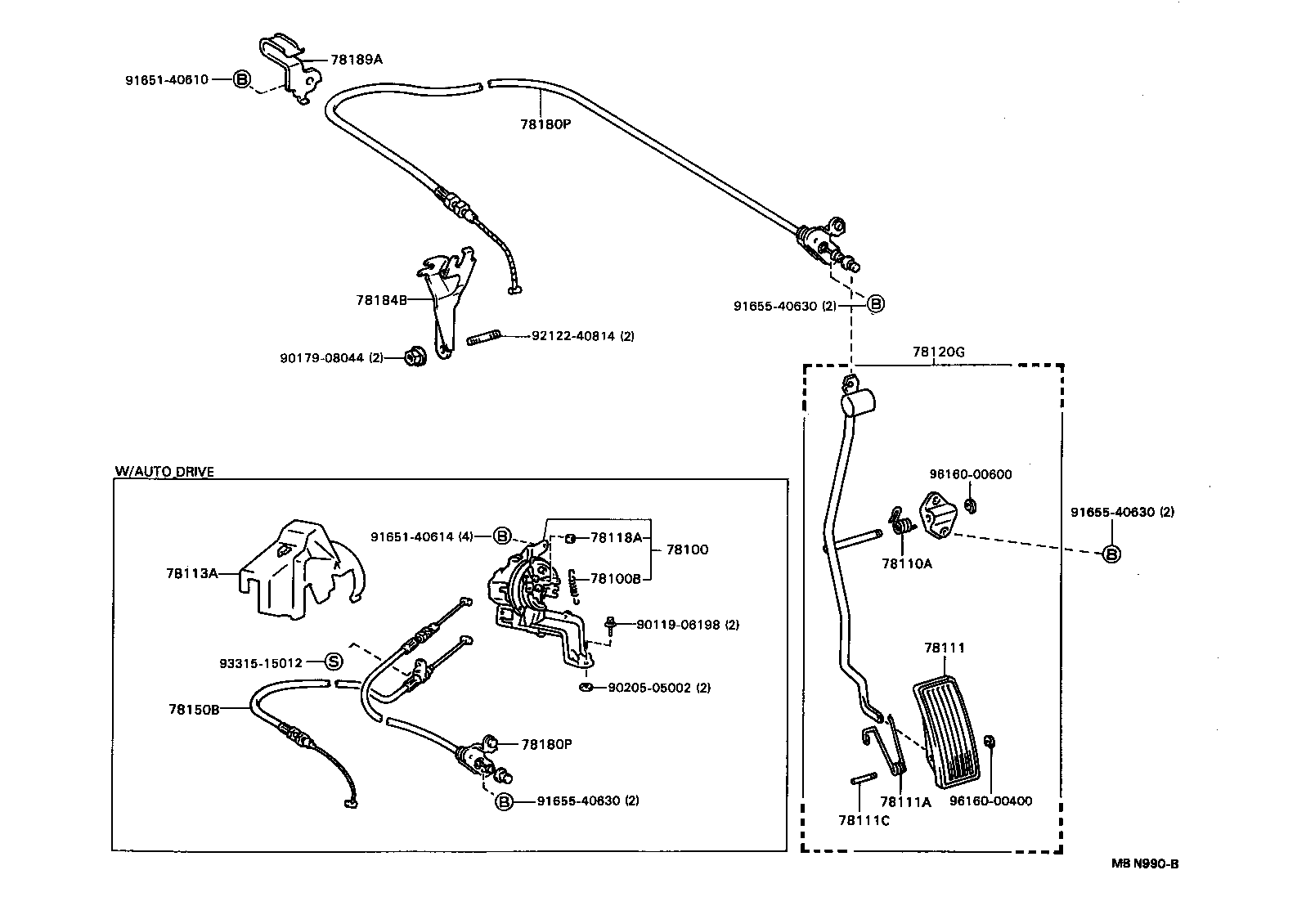

Click highlighted areas on diagram

diagram 78100 78100B 78110A 78111 78111A 78111C 78113A 78118A 78120G 78150B 78180P 78180P 78184B 78189A 9011906198 9017908044 9020505002 9165140610 9165140614 9165540630 9165540630 9165540630 9212240814 9331515012 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

SV22;CV20,SV21,25,VZV20..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

CV20,SV2#,VZV20

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

CV20,SV2#,VZV20

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV20,SV2#,VZV20

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-32060

SV22

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32301

SV22

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32301

SV22

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-20160

SV22

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-32040

SV22

 1
Common parts
90119-06198
90179-08044
90205-05002
91651-40610
91651-40614
91655-40630
92122-40814
93315-15012
96160-00400
96160-00600
