SV22-UEPMM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SED

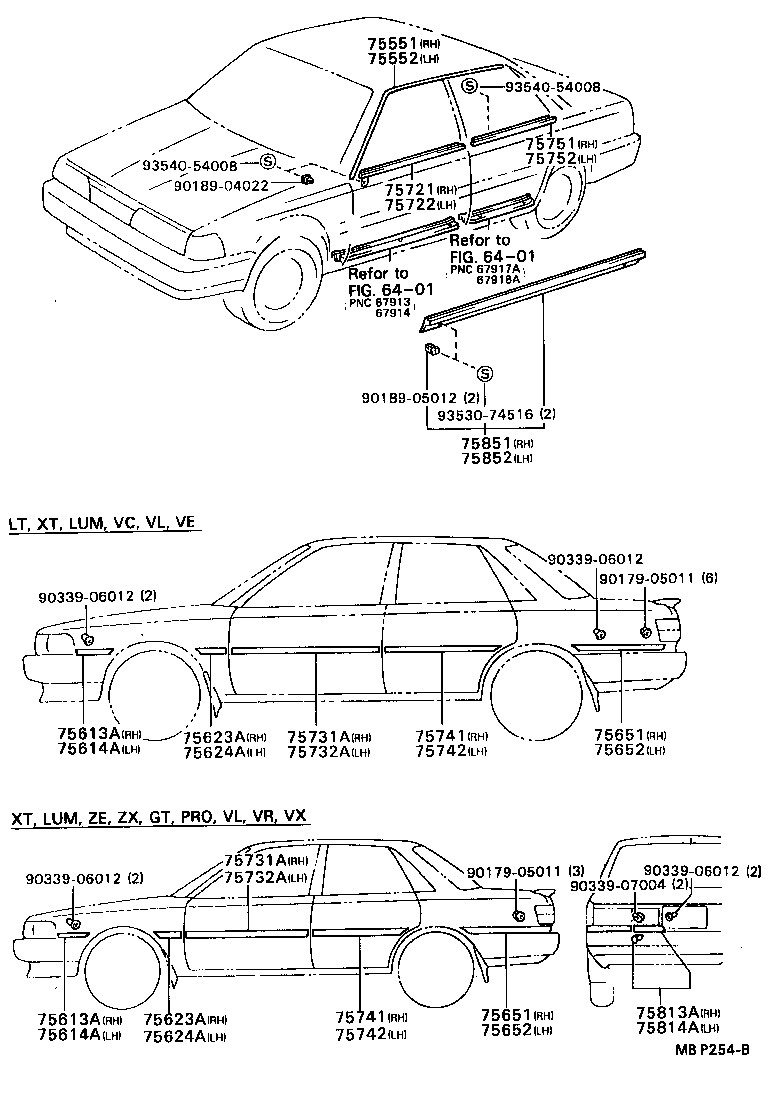

Click highlighted areas on diagram

diagram 6401 6401 75551 75552 75613A 75613A 75614A 75614A 75623A 75623A 75624A 75624A 75651 75651 75652 75652 75721 75722 75731A 75731A 75732A 75732A 75741 75741 75742 75742 75751 75752 75813A 75814A 75851 75852 9017905011 9017905011 9018904022 9018905012 9033906012 9033906012 9033906012 9033906012 9033907004 9353074516 9354054008 9354054008
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-32030

CV20,SV2#,VZV20..SED

 1
75551-32060

CV20,SV2#,VZV20..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-32060

CV20,SV2#,VZV20..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75552-32030

CV20,SV2#,VZV20..SED

 1
75613A - MOULDING, FRONT FENDER, FRONT RH
75613-32010

CV20,SV2#,VZV20..SED

 1
75613A - MOULDING, FRONT FENDER, FRONT RH
75613-32010

CV20,SV2#,VZV20..SED

 1
75614A - MOULDING, FRONT FENDER, FRONT LH
75614-32010

CV20,SV2#,VZV20..SED

 1
75614A - MOULDING, FRONT FENDER, FRONT LH
75614-32010

CV20,SV2#,VZV20..SED

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-32040

CV20,SV2#,VZV20..SED

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-32040

CV20,SV2#,VZV20..SED

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-32040

CV20,SV2#,VZV20..SED

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-32040

CV20,SV2#,VZV20..SED

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-32011

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-32011

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-32011

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-32011

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-32060

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｶｺﾞｼﾏ ｼﾖｳ

 1
75710-32040

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
75710-32030

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

 1
75710-32070

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｶｺﾞｼﾏ ｼﾖｳ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-32040

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
75720-32030

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

 1
75720-32070

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｶｺﾞｼﾏ ｼﾖｳ & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
75720-32060

CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)

ｶｺﾞｼﾏ ｼﾖｳ

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-32120

CV20,SV2#,VZV20..SED

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-32120

CV20,SV2#,VZV20..SED

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-32120

CV20,SV2#,VZV20..SED

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-32120

CV20,SV2#,VZV20..SED

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-32150

CV20,SV2#,VZV20..SED

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-32150

CV20,SV2#,VZV20..SED

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-32150

CV20,SV2#,VZV20..SED

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-32150

CV20,SV2#,VZV20..SED

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-32040

CV20,SV2#,VZV20..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75730-32020

CV20,SV2#,VZV20..SED

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-32040

CV20,SV2#,VZV20..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75740-32020

CV20,SV2#,VZV20..SED

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-39066

CV20,SV2#,VZV20

 1
75850-39065

CV20,SV2#,VZV20

 1
75850-39085

CV20,SV2#,VZV20

ｶｺﾞｼﾏ ｼﾖｳ

 1
75850-39086

CV20,SV2#,VZV20

ｶｺﾞｼﾏ ｼﾖｳ

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-39065

CV20,SV2#,VZV20

 1
75850-39085

CV20,SV2#,VZV20

ｶｺﾞｼﾏ ｼﾖｳ

 1
75850-39086

CV20,SV2#,VZV20

ｶｺﾞｼﾏ ｼﾖｳ

 1
75850-39066

CV20,SV2#,VZV20

 1
Common parts
90179-05011
90189-04022
90189-05012
90339-06012
90339-07004
93530-74516
93540-54008
Linked diagrams
6401
