SV22-UEPMM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV2#..SED

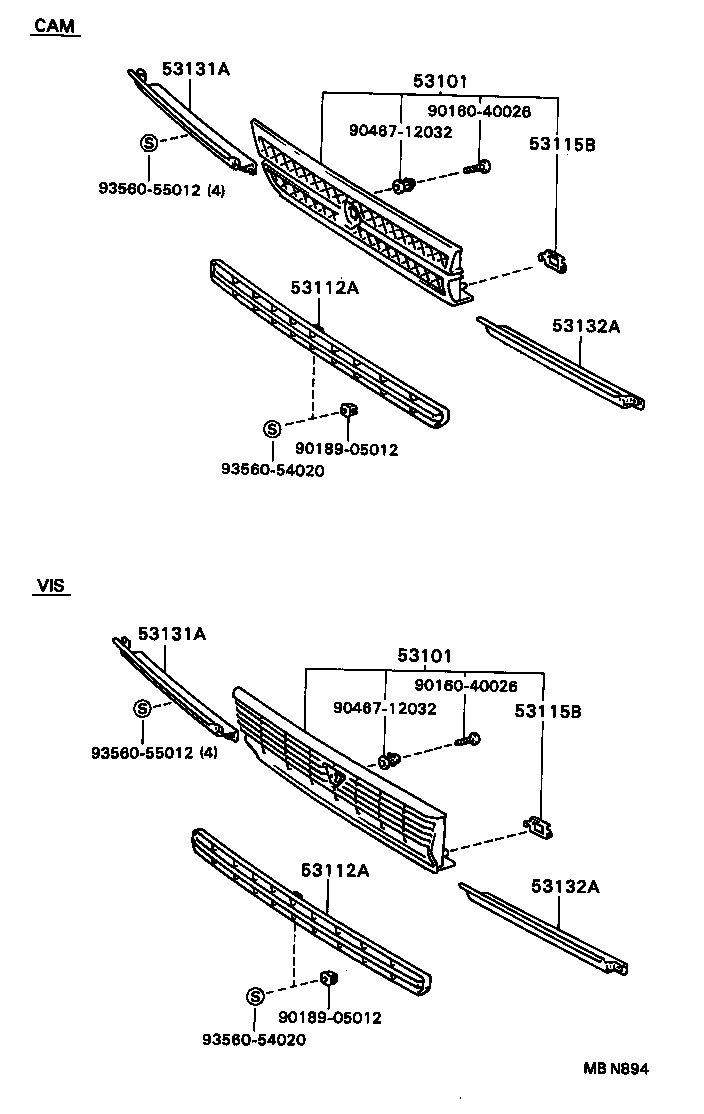

Click highlighted areas on diagram

diagram 53101 53101 53112A 53112A 53115B 53115B 53131A 53131A 53132A 53132A 9016040026 9016040026 9018905012 9018905012 9046712032 9046712032 9356054020 9356054020 9356055012 9356055012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-32150

CV20,SV2#..VIS..SED

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-32150

CV20,SV2#..VIS..SED

 1
53112A - GRILLE, RADIATOR, LOWER
53112-32030

CV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)

 1
53112A - GRILLE, RADIATOR, LOWER
53112-32030

CV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)

 1
53115B - BRACKET, RADIATOR GRILLE
53115-32010

CV20,SV2#..SED

 2
53115B - BRACKET, RADIATOR GRILLE
53115-32010

CV20,SV2#..SED

 2
53131A - DOOR, HEADLAMP, RH
53131-32110

CV20,SV2#..SED

 1
53131A - DOOR, HEADLAMP, RH
53131-32110

CV20,SV2#..SED

 1
53132A - DOOR, HEADLAMP, LH
53132-32110

CV20,SV2#..SED

 1
53132A - DOOR, HEADLAMP, LH
53132-32110

CV20,SV2#..SED

 1
Common parts
90160-40026
90189-05012
90467-12032
93560-54020
93560-55012
