SV22-UEPEM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

Click highlighted areas on diagram

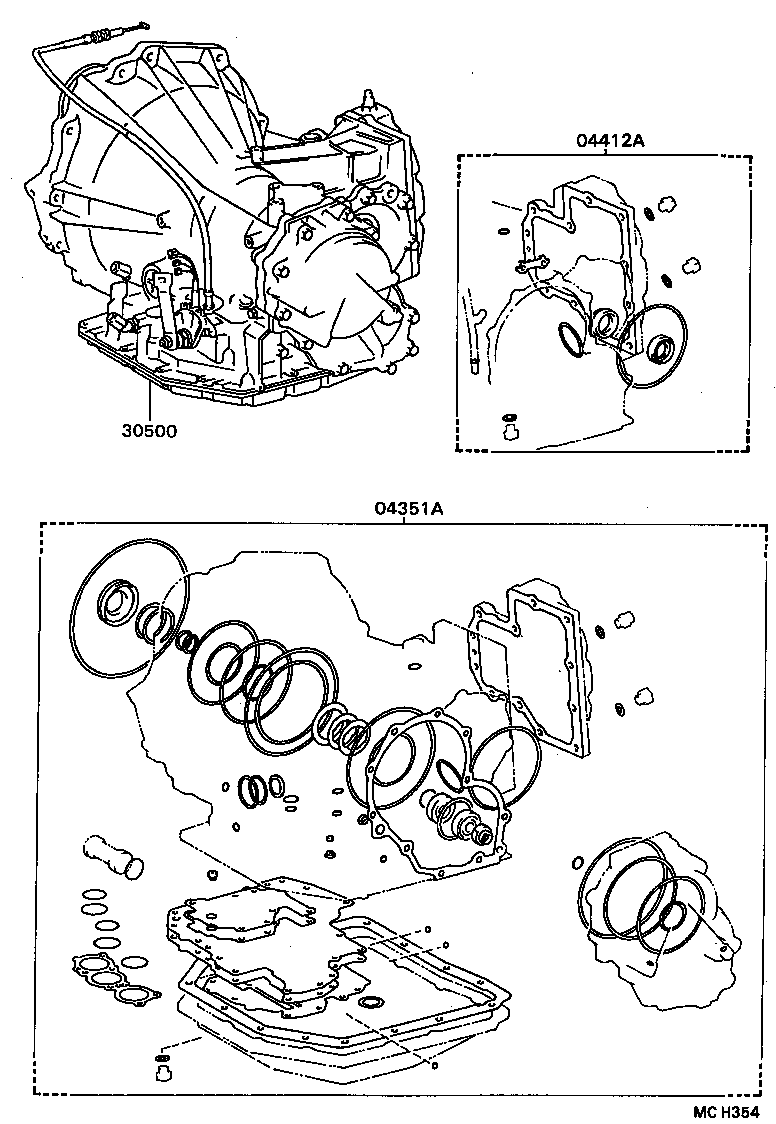

diagram 04351A 04412A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20080

CV20,SV22..4FC

 1
04412A - GASKET KIT, DIFFERENTIAL CARRIER(ATM)
04412-16020

CV20,SV21,22..4FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-32490

SV22..4FC

 1
