SV22-UEMMM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

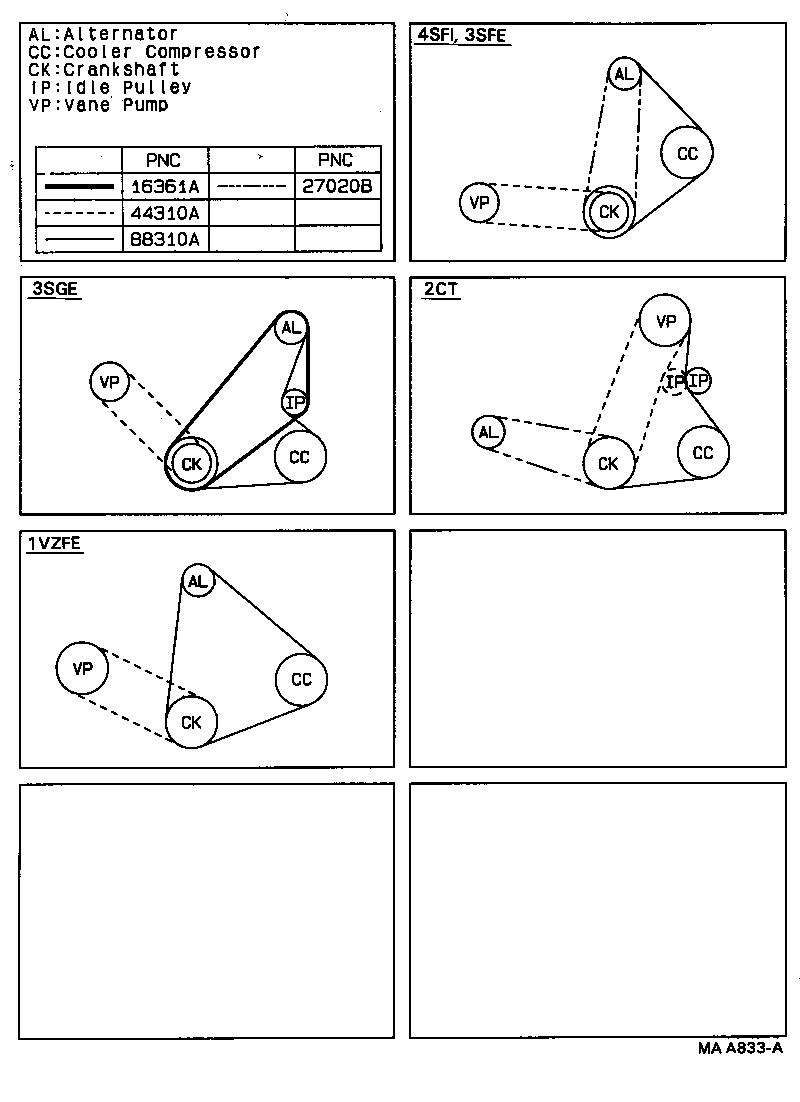

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02295

3SFE,4SFI..SV2#..5F

 1
90916-02219

3SFE,4SFI..SV2#..5F

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

SV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51110

SV22..HT..VL;SV22..LUM,VE,VR,ZE;SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX

 1
