SV22-UEMDM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV2#..SED

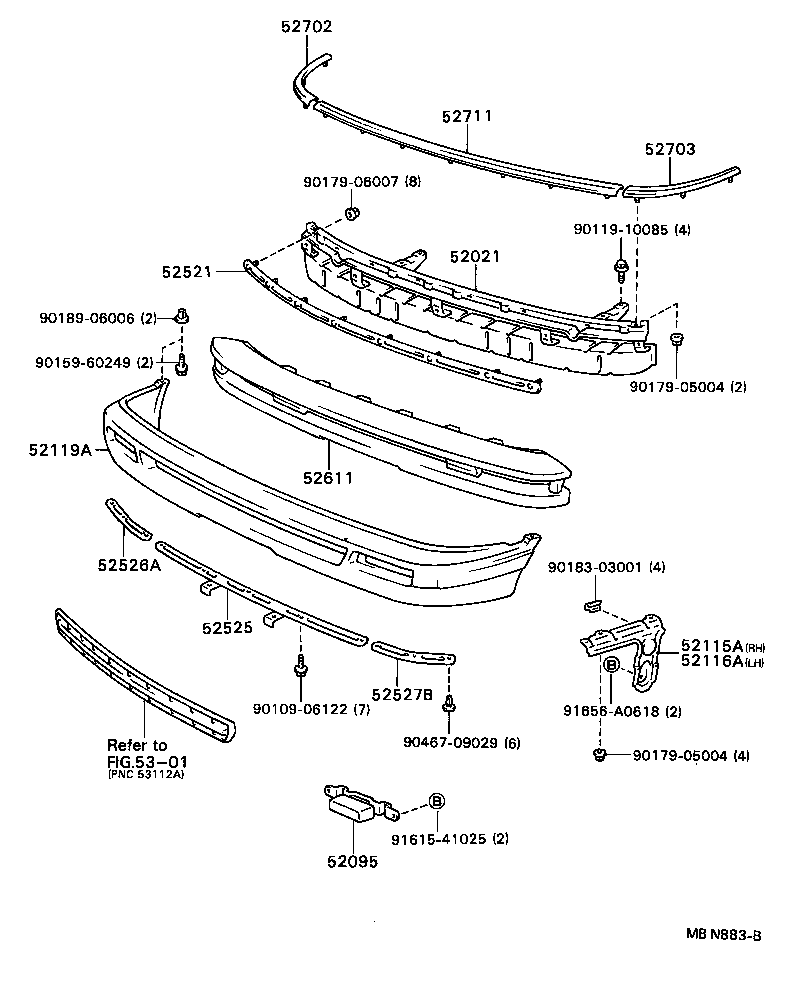

Click highlighted areas on diagram

diagram 52021 52095 52115A 52116A 52119A 52521 52525 52526A 52527B 52611 52702 52703 52711 5301 9010906122 9011910085 9015960249 9017905004 9017905004 9017906007 9018303001 9018906006 9046709029 9161541025 91656A0618
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32040

SV22..SED..(LT,VC,VL,XT)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-32040

SV22..SED..(LT,VC,VL,XT)

 1
52119A - COVER, FRONT BUMPER
52119-32230

SV22..SED..(LT,VC,VL,XT)

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-32040

SV22..SED..(LT,VC,VL,XT)

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-32040

SV22..SED..(LT,VC,VL,XT)

 1
52711 - MOULDING, FRONT BUMPER
52711-32040

SV22..SED..(LT,VC,VL,XT)

 1
Common parts
90109-06122
90119-10085
90159-60249
90179-05004
90179-06007
90183-03001
90189-06006
90467-09029
91615-41025
91656-A0618
Linked diagrams
5301

(8808- )SV22..SED..LT,VC,VL,XT

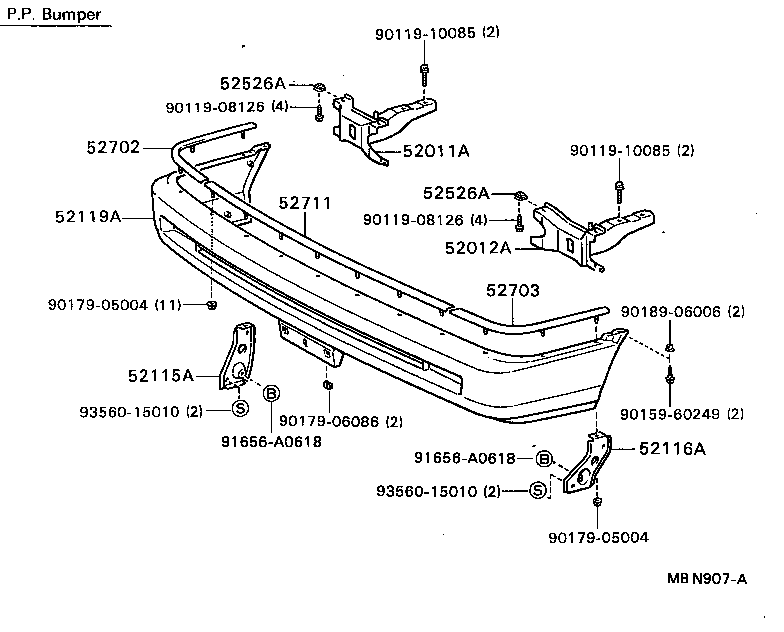

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52526A 52526A 52702 52703 52711 9011908126 9011908126 9011910085 9011910085 9015960249 9017905004 9017905004 9017906086 9018906006 91656A0618 91656A0618 9356015010 9356015010
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-32070

SV22..SED..(LT,VC,VL,XT)

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-32050

SV22..SED..(LT,VC,VL,XT)

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32040

SV22..SED..(LT,VC,VL,XT)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-32040

SV22..SED..(LT,VC,VL,XT)

 1
52119A - COVER, FRONT BUMPER
52119-32230

SV22..SED..(LT,VC,VL,XT)

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-32040

SV22..SED..(LT,VC,VL,XT)

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-32040

SV22..SED..(LT,VC,VL,XT)

 1
52711 - MOULDING, FRONT BUMPER
52711-32040

SV22..SED..(LT,VC,VL,XT)

 1
Common parts
90119-08126
90119-10085
90159-60249
90179-05004
90179-06086
90189-06006
91656-A0618
93560-15010
