SV22-JEPNM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )SED

Click highlighted areas on diagram

diagram 04641 04641 61824A 61824A 63102A 63102A 63111 63111 63126A 63126A 63133A 63133A 63141H 63142 63143B 63144A 63161D 63161D 63344D 63344D 63344D 63344D 64101 64101 64811 64811
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

CV20,SV2#,VZV20

 1
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

CV20,SV2#,VZV20

 1
61824A - PLATE, NOISE CONTROL, NO.1
62475-12040

CV20,SV2#,VZV20..SED

 2
61824A - PLATE, NOISE CONTROL, NO.1
62475-12040

CV20,SV2#,VZV20..SED

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32050

CV20,SV22,25..SED..(LT,VC,VL,XT)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32050

CV20,SV22,25..SED..(LT,VC,VL,XT)

 1
63111 - PANEL, ROOF
63111-32050

CV20,SV2#,VZV20..SED

 1
63111 - PANEL, ROOF
63111-32050

CV20,SV2#,VZV20..SED

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

CV20,SV2#,VZV20..SED

 2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

CV20,SV2#,VZV20..SED

 2
63133A - FRAME, BACK WINDOW, UPPER
63133-32020

CV20,SV2#,VZV20..SED

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-32020

CV20,SV2#,VZV20..SED

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-32030

CV20,SV2#,VZV20..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-32010

CV20,SV2#,VZV20..SED

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-32010

CV20,SV2#,VZV20..SED

 1
63161D - PLATE, ROOF HEADER PANEL, NO.1
61815-32020

CV20,SV2#,VZV20..SED

 4
63161D - PLATE, ROOF HEADER PANEL, NO.1
61815-32020

CV20,SV2#,VZV20..SED

 4
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20..SED

 2
63344-32010

CV20,SV2#,VZV20

 2
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20..SED

 2
63344-32010

CV20,SV2#,VZV20

 2
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20..SED

 2
63344-32010

CV20,SV2#,VZV20

 2
63344D - PAD, ROOF SILENCER, NO.4
63344-32010

CV20,SV2#,VZV20..SED

 2
63344-32010

CV20,SV2#,VZV20

 2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-32070

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-32070

CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)

 1
64811 - GLASS, BACK WINDOW
64811-32081

CV20,SV22,25..SED..(LT,VC,VL,XT)

*EHTT,厚さ=4.0

 1
64811 - GLASS, BACK WINDOW
64811-32081

CV20,SV22,25..SED..(LT,VC,VL,XT)

*EHTT,厚さ=4.0

 1

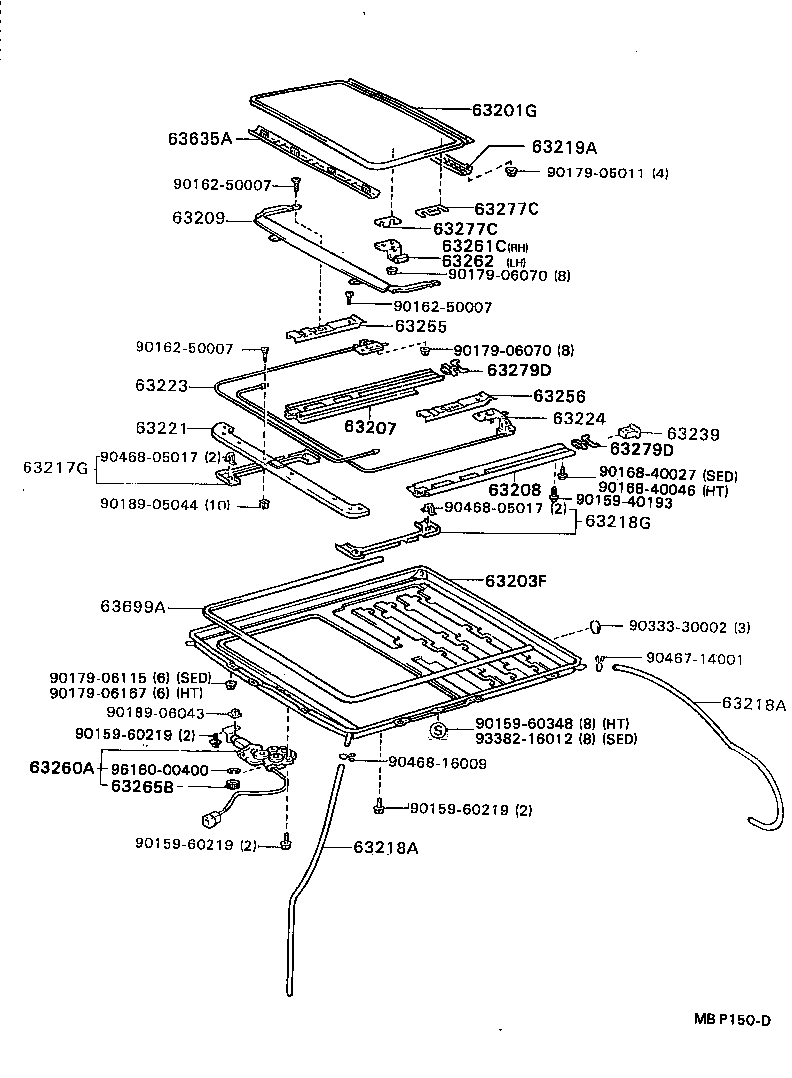

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 63201G 63203F 63207 63208 63209 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63239 63255 63256 63260A 63261C 63262 63265B 63277C 63277C 63279D 63279D 63635A 63699A 9015940193 9015960219 9015960219 9015960219 9015960348 9016250007 9016250007 9016250007 9016840027 9016840046 9017905011 9017906070 9017906070 9017906115 9017906167 9018905044 9018906043 9033330002 9046714001 9046805017 9046805017 9046816009 9338216012 9616000400
Part # Description Qty Price
Common parts
90159-40193
90159-60219
90159-60348
90162-50007
90168-40027
90168-40046
90179-05011
90179-06070
90179-06115
90179-06167
90189-05044
90189-06043
90333-30002
90467-14001
90468-05017
90468-16009
93382-16012
96160-00400
