SV22-JEPEM (1988)
Toyota Camry/Vista
(8808- )

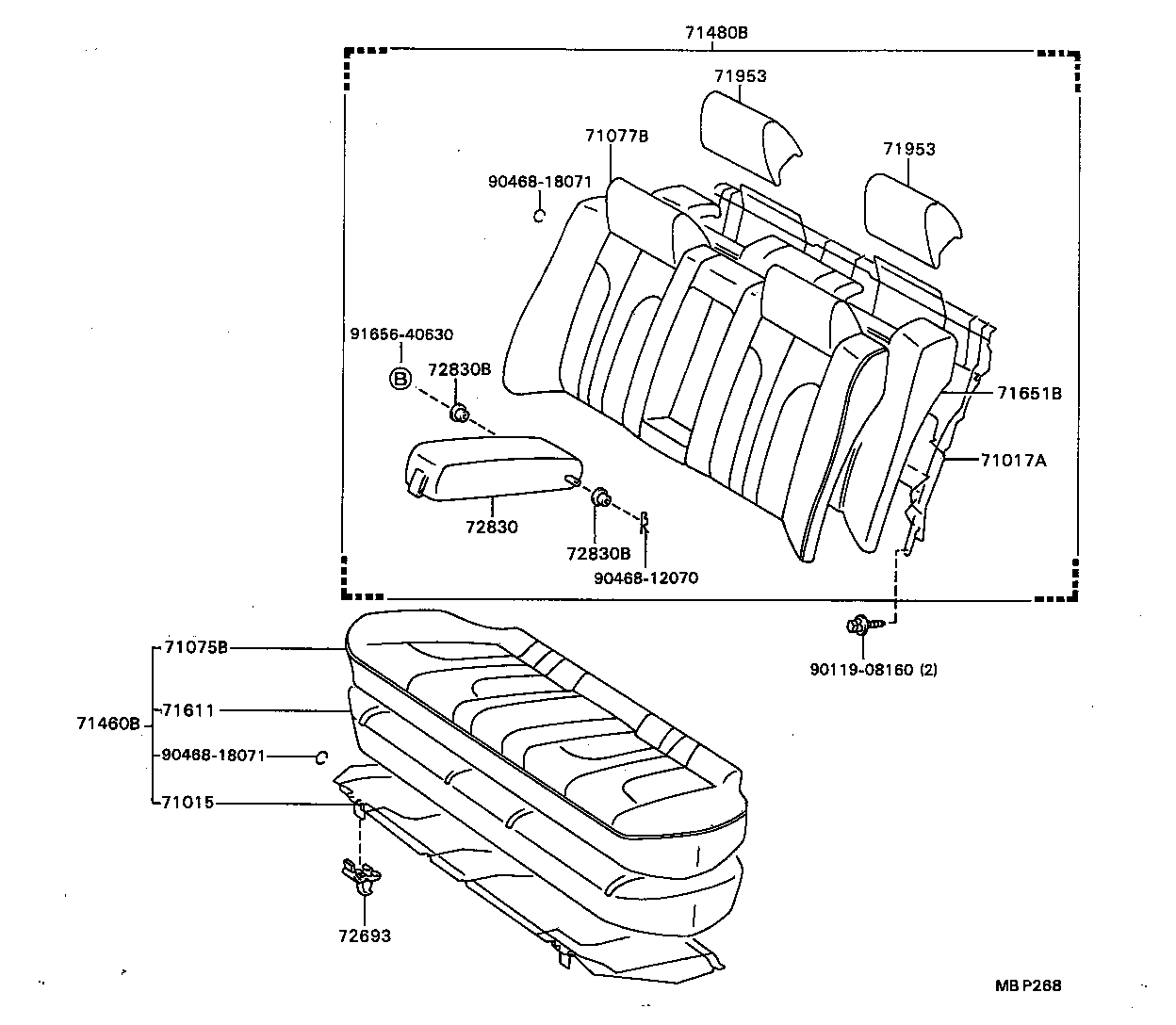

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-32070 |
CV20,SV21,22,VZV20 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3284003 |
SV22..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-3284002 |
SV22..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71075-3284004 |
SV22..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3284004 |
SV22..SED..(VR,ZE) ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-3284003 |
SV22..SED..(VR,ZE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-3284002 |
SV22..SED..(VR,ZE) ***,MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-32160 |
CV20,SV21,22,VZV20..SED |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
SV25..VL,XT;CV20,SV21,22,VZV20 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3227003 |
SV2#..SED..(VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3227004 |
SV2#..SED..(VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 72830-3227002 |
SV2#..SED..(VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) 左側 |
1 | ||
| 90386-06028 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 90386-06002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 90386-06036 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) 左側 |
1 | ||
| 90386-06028 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 90386-06002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 90386-06036 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| Common parts | ||||
| 90119-08160 | ||||
| 90468-12070 | ||||
| 90468-18071 | ||||
| 91656-40630 | ||||

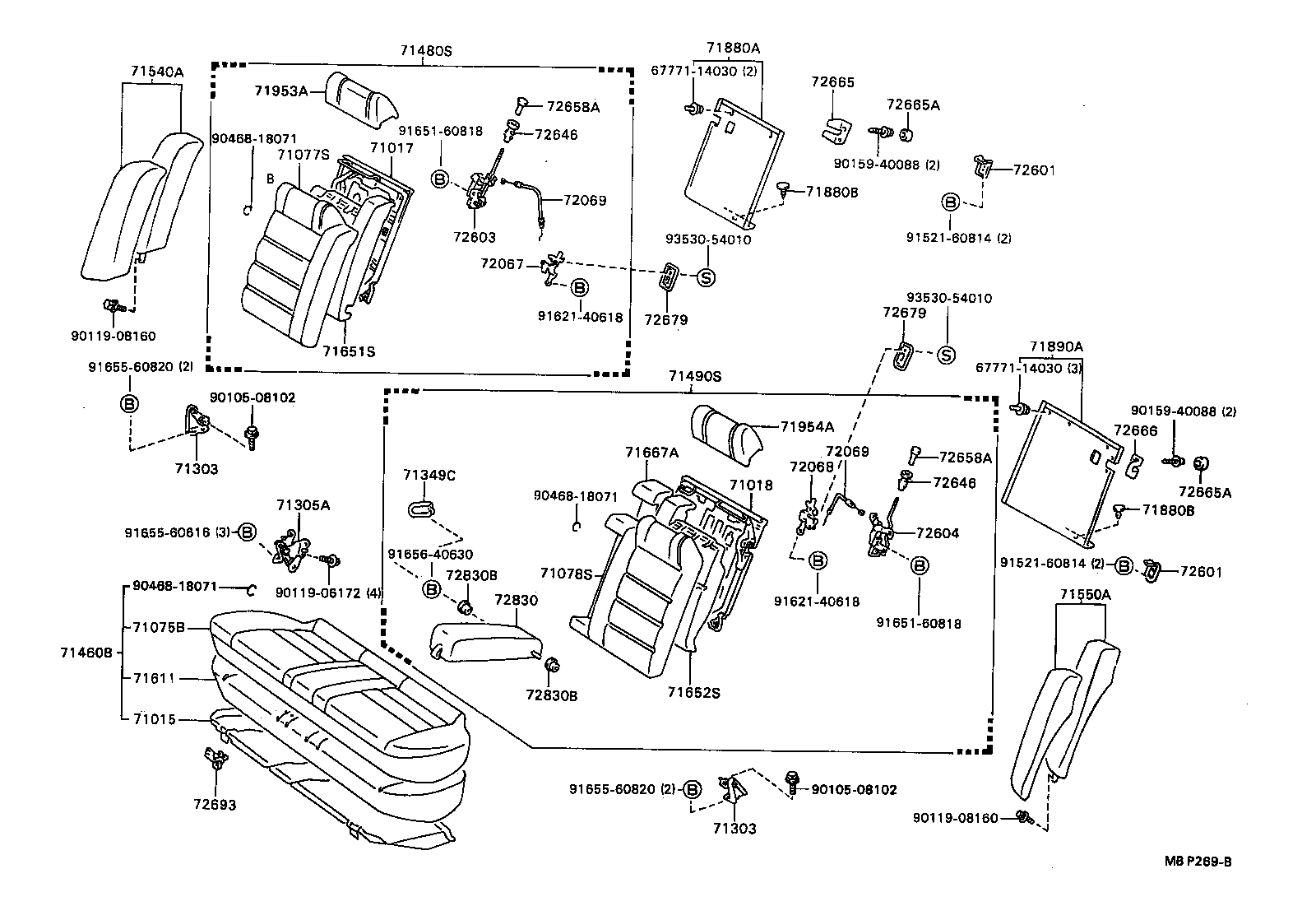

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-32070 |
CV20,SV21,22,VZV20 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32110 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71017-32100 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71017-32110 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32050 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71018-32040 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71018-32050 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3284003 |
SV22..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-3284002 |
SV22..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71075-3284004 |
SV22..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3281002 |
SV22,25..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71077-3281003 |
SV22,25..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3281004 |
SV22,25..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3242002 |
SV22,25..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71078-3242004 |
SV22,25..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71078-3242003 |
SV22,25..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32030 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 71304-32030 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32030 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 71304-32030 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32040 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-32030B0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71349-32030J0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 71349-32030D0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3284004 |
SV22..SED..(VR,ZE) ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-3284003 |
SV22..SED..(VR,ZE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-3284002 |
SV22..SED..(VR,ZE) ***,MAROON,TRIM3# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3281003 |
SV22,25..SED..(VR,ZE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-3281004 |
SV22,25..SED..(VR,ZE) ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-3281002 |
SV22,25..SED..(VR,ZE) ***,MAROON,TRIM3# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-3240003 |
SV22,25..SED..(VR,ZE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-3240002 |
SV22,25..SED..(VR,ZE) ***,MAROON,TRIM3# |
1 | ||
| 71490-3240004 |
SV22,25..SED..(VR,ZE) ***,DARK BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-3240004 |
SV22,25..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71540-3240002 |
SV22,25..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71540-3240003 |
SV22,25..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-3240002 |
SV22,25..SED..(VR,ZE) MAROON,TRIM3# |
1 | ||
| 71550-3240004 |
SV22,25..SED..(VR,ZE) DARK BLUE,TRIM8# |
1 | ||
| 71550-3240003 |
SV22,25..SED..(VR,ZE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-32160 |
CV20,SV21,22,VZV20..SED |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32080 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32050 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-32010 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-3201103 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 71880-3201103 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-09066 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-09066 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-3201103 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 71890-3201103 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 71953A - PAD, REAR SEAT HEADREST, RH | ||||
| 71953-32090 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 71954A - PAD, REAR SEAT HEADREST, LH | ||||
| 71954-32010 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-32010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-32010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
CV20,SV21,22..HT..VE;SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-32010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-32010 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-32020D0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72646-32020B0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-32020J0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-32020D0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72646-32020B0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-32020J0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010B0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72658-23010J0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72658-23010D0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72658-23010J0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) DARK BLUE,TRIM8# |
1 | ||
| 72658-23010D0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) MAROON,TRIM3# |
1 | ||
| 72658-23010B0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010B0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72658-23010J0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72658-23010D0 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72658-23010J0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) DARK BLUE,TRIM8# |
1 | ||
| 72658-23010D0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) MAROON,TRIM3# |
1 | ||
| 72658-23010B0 |
SV21..SED..(GT,VX,ZX);SV22,25,VZV20..PRO,VR,ZE;CV20,SV21,22..HT..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-3203003 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72665-3203004 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72665-3203002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001D1 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
4 | ||
| 90339-10001B2 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
4 | ||
| 90339-10001B2 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001D1 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
4 | ||
| 90339-10001B2 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
4 | ||
| 90339-10001B2 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-3203002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 72665-3203004 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 72665-3203003 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601033 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
2 | ||
| 72679-1601033 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601033 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
2 | ||
| 72679-1601033 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,3#,8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
SV25..VL,XT;CV20,SV21,22,VZV20 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3227003 |
SV2#..SED..(VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3227004 |
SV2#..SED..(VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 72830-3227002 |
SV2#..SED..(VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) 左側 |
1 | ||
| 90386-06028 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 90386-06002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 90386-06036 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06036 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) 左側 |
1 | ||
| 90386-06028 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 右側 |
1 | ||
| 90386-06002 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| 90386-06036 |
CV20,SV21,22..HT..VE;SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 左側 |
1 | ||
| Common parts | ||||
| 67771-14030 | ||||
| 90105-08102 | ||||
| 90119-06172 | ||||
| 90119-08160 | ||||
| 90159-40088 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91621-40618 | ||||
| 91651-60818 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91656-40630 | ||||
| 93530-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
