SV22-JEPEM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3SFE,4SFI

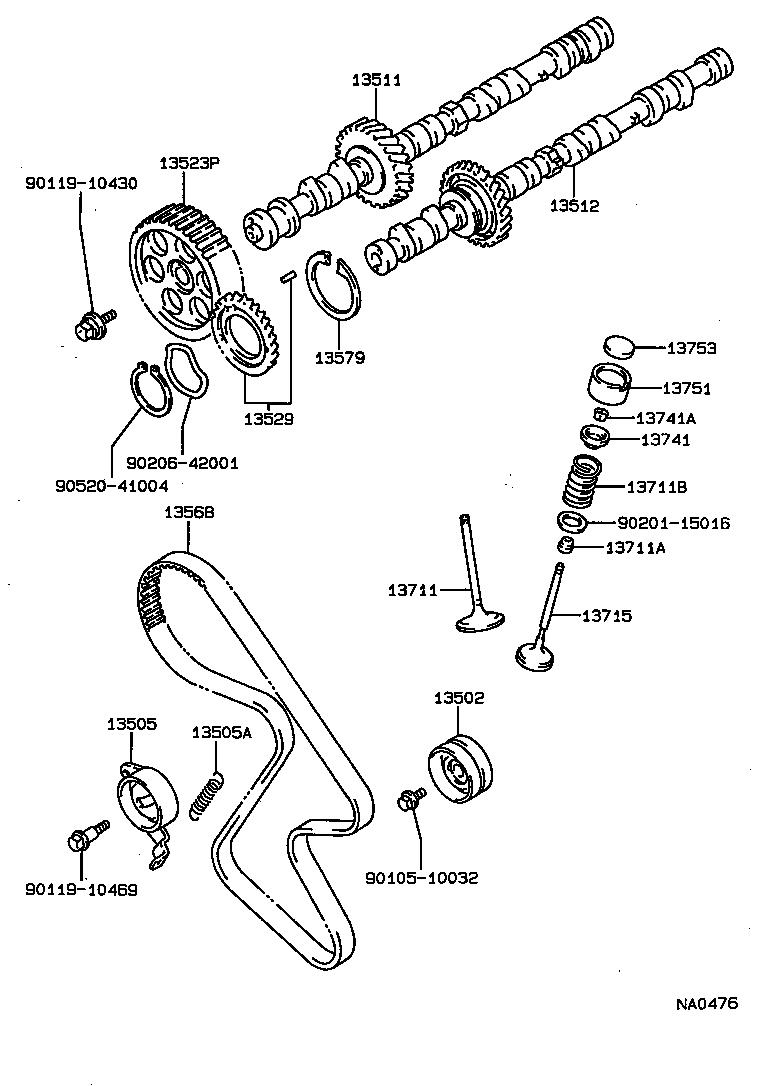

Click highlighted areas on diagram

diagram 13502 13505 13505A 13511 13512 13523P 13529 13568 13579 13711 13711A 13711B 13715 13741 13741A 13751 13753 9010510032 9011910430 9011910469 9020115016 9020642001 9052041004
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-63011

3SFE,4SFI..SV2#

 1
13503-63010

3S#,4SFI..SV2#

*53

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-74011

3SFE,4SFI..SV2#

 1
13505-74010

3SFE,4SFI..SV2#

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-20052

3SFE,4SFI..SV2#

 1
90507-20026

3SFE,4SFI..SV2#

 1
13511 - CAMSHAFT
13501-74020

3SFE,4SFI..SV2#

 1
13512 - CAMSHAFT, NO.2
13502-74020

3SFE,4SFI..SV22,25

 1
13523P - PULLEY, CAMSHAFT TIMING
13523-74020

3SFE,4SFI..SV2#

 1
13529 - GEAR, CAMSHAFT SUB
13529-74900

3SFE,4SFI..SV2#

 1
13568 - BELT, TIMING
13568-74011

3SFE,4SFI..SV2#

 1
13579 - WASHER, CAMSHAFT TIMING GEAR BOLT
13579-74010

3SFE,4SFI..SV2#

 1
13711 - VALVE, INTAKE
13711-74020

3SFE,4SFI..SV2#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02066

3S#,4SFI..SV2#

EXHAUST SIDE

 8
90913-02062

3S#,4SFI..SV2#

INTAKE SIDE

 8
90913-02090

3SFE,4SFI..SV2#

INTAKE SIDE

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31003

3SFE,4SFI..SV2#

 16
13715 - VALVE, EXHAUST
13715-74020

3SFE,4SFI..SV2#

 8
13741 - RETAINER, VALVE SPRING
13741-16010

3SFE,4SFI..SV2#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

3S#,4SFI..SV2#

 32
13751 - LIFTER, VALVE
13751-16010

3S#,4SFI..SV2#

 16
13753 - SHIM, VALVE ADJUSTING
13753-16040

3S#,4SFI..SV2#

厚さ=2.55

 1
13753-16080

3S#,4SFI..SV2#

厚さ=2.65

 1
13753-16020

3S#,4SFI..SV2#

厚さ=2.50

 1
13753-16140

3S#,4SFI..SV2#

厚さ=2.80

 1
13753-16100

3S#,4SFI..SV2#

厚さ=2.70

 1
13753-16060

3S#,4SFI..SV2#

厚さ=2.60

 1
13753-16160

3S#,4SFI..SV2#

厚さ=2.85

 1
13753-16180

3S#,4SFI..SV2#

厚さ=2.90

 1
13753-16200

3S#,4SFI..SV2#

厚さ=2.95

 1
13753-16240

3S#,4SFI..SV2#

厚さ=3.05

 1
13753-16320

3S#,4SFI..SV2#

厚さ=3.25

 1
13753-16280

3S#,4SFI..SV2#

厚さ=3.15

 1
13753-16220

3S#,4SFI..SV2#

厚さ=3.00

 1
13753-16260

3S#,4SFI..SV2#

厚さ=3.10

 1
13753-16340

3S#,4SFI..SV2#

厚さ=3.30

 1
13753-16300

3S#,4SFI..SV2#

厚さ=3.20

 1
13753-16120

3S#,4SFI..SV2#

厚さ=2.75

 1
Common parts
90105-10032
90119-10430
90119-10469
90201-15016
90206-42001
90520-41004
