SV22-JEMDM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV22..SED..LT,VC,VL,XT

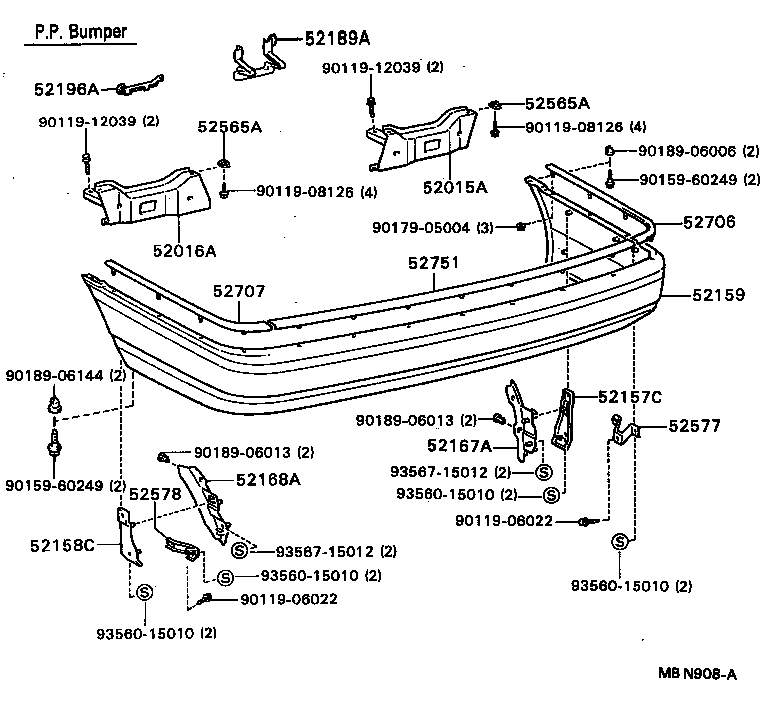

Click highlighted areas on diagram

diagram 52015A 52016A 52157C 52158C 52159 52167A 52168A 52189A 52196A 52565A 52565A 52577 52578 52706 52707 52751 9011906022 9011906022 9011908126 9011908126 9011912039 9011912039 9015960249 9015960249 9017905004 9018906006 9018906013 9018906013 9018906144 9356015010 9356015010 9356015010 9356015010 9356715012 9356715012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-32070

SV22..SED..(LT,VC,VL,XT)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-32010

SV22..SED..(LT,VC,VL,XT)

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-32060

SV22..SED..(LT,VC,VL,XT)

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-32040

SV22..SED..(LT,VC,VL,XT)

 1
52159 - COVER, REAR BUMPER
52159-32170

SV22..SED..(LT,VC,VL,XT)

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-32020

CV20,SV2#,VZV20

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52168-32020

CV20,SV2#,VZV20

 1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-32010

CV20,SV2#..SED

 1
52196A - PROTECTOR, REAR BUMPER ARM EDGE, LH
52196-32030

CV20,SV2#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH
52577-32040

SV22..SED..(LT,VC,VL,XT)

 1
52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH
52578-32040

SV22..SED..(LT,VC,VL,XT)

 1
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-32040

SV22..SED..(LT,VC,VL,XT)

 1
52706-32050

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-32040

SV22..SED..(LT,VC,VL,XT)

 1
52707-32050

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
52751 - MOULDING, REAR BUMPER
52751-32040

SV22..SED..(LT,VC,VL,XT)

 1
52751-32060

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90119-06022
90119-08126
90119-12039
90159-60249
90179-05004
90189-06006
90189-06013
90189-06144
93560-15010
93567-15012

(8808- )CV20,SV2#

Click highlighted areas on diagram

diagram 52023 52075 52076 52157C 52158C 52159 52167A 52168A 52189A 52196A 52552 52553 52561 52565A 52615 52706 52707 52751 9010906122 9011906022 9011912039 9011912039 9015960249 9015960249 9017905004 9017906007 9017906032 9017906032 9018906006 9018906013 9018906013 9018906116 9046804030 9046804030 9046804079 9046804079 9046804079 9046804079 9046804144 9046804144 9356015010 9356015010 9356715012 9356715012
Part # Description Qty Price
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-32060

SV22..SED..(LT,VC,VL,XT)

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-32040

SV22..SED..(LT,VC,VL,XT)

 1
52159 - COVER, REAR BUMPER
52159-32170

SV22..SED..(LT,VC,VL,XT)

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-32020

CV20,SV2#,VZV20

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52168-32020

CV20,SV2#,VZV20

 1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-32010

CV20,SV2#..SED

 1
52196A - PROTECTOR, REAR BUMPER ARM EDGE, LH
52196-32030

CV20,SV2#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

SV22..SED..(LT,VC,VL,XT)

 8
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-32040

SV22..SED..(LT,VC,VL,XT)

 1
52706-32050

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-32040

SV22..SED..(LT,VC,VL,XT)

 1
52707-32050

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
52751 - MOULDING, REAR BUMPER
52751-32040

SV22..SED..(LT,VC,VL,XT)

 1
52751-32060

SV22..SED..(LT,VC,VL,XT)

ｶｺﾞｼﾏ ｼﾖｳ

 1
Common parts
90109-06122
90119-06022
90119-12039
90159-60249
90179-05004
90179-06007
90179-06032
90189-06006
90189-06013
90189-06116
90468-04030
90468-04079
90468-04144
93560-15010
93567-15012
