SV22-JEMDM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3S#,4SFI

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8808- )4SFI

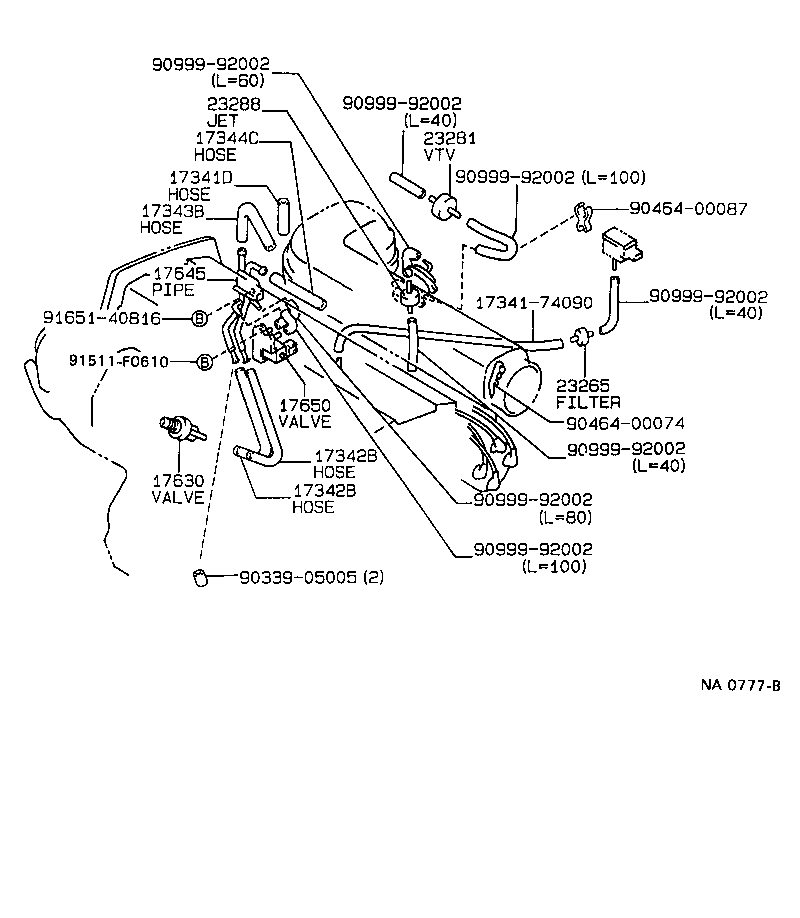

Click highlighted areas on diagram

diagram 1734174090 17341D 17342B 17342B 17343B 17344C 17630 17645 17650 23265 23281 23288 9033905005 9046400074 9046400087 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91511F0610 9165140816
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74060

4SFI..SV22

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74050

4SFI..SV22

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-74020

4SFI..SV22

 1
17645 - PIPE, IDLE UP
17645-74010

4SFI..SV22

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12071

4SFI..SV22

 1
23265 - FILTER, GAS, NO.1
90917-11021

3SFE,4SFI..SV2#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01015

4SFI..SV22

 1
23288 - JET, NO.1
90925-04007

4SFI..SV22

 1
Common parts
17341-74090
90339-05005
90464-00074
90464-00087
90999-92002
91511-F0610
91651-40816
