SV22-JEMDM (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4SFI

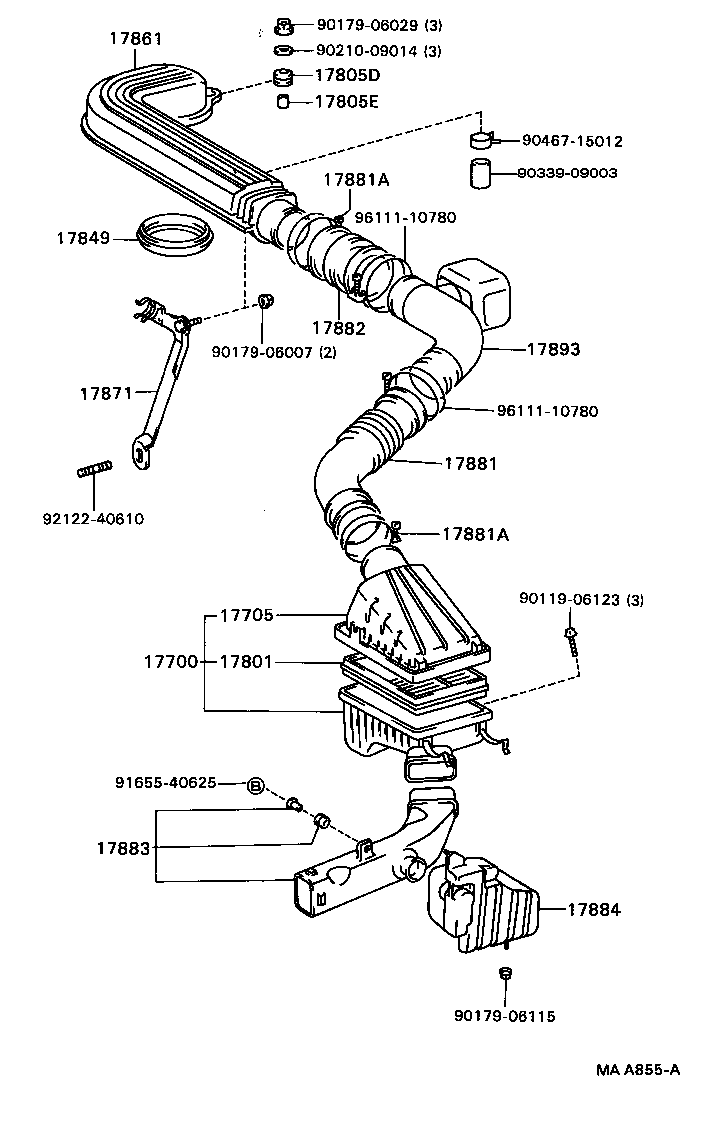

Click highlighted areas on diagram

diagram 17700 17705 17801 17805D 17805E 17849 17861 17871 17881 17881A 17881A 17882 17883 17884 17893 9011906123 9017906007 9017906029 9017906115 9021009014 9033909003 9046715012 9165540625 9212240610 9611110780 9611110780
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63130

4SFI..SV22

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63060

4SFI..SV22

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

3S#,4SFI..SV2#

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12014

4SFI..SV22

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06040

4SFI..SV22

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-74010

4SFI..SV22

 1
17861 - CONNECTOR, INTAKE AIR
17861-74010

4SFI..SV22

 1
17871 - STAY, AIR CONNECTOR
17871-74010

4SFI..SV22

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74220

4SFI..SV22

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..SV22

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..SV22

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-74150

4SFI..SV22

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63110

3S#,4SFI..SV2#

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-63030

3S#,4SFI..SV2#

 1
17893 - RESONATOR, INTAKE AIR
17893-74060

4SFI..SV22

 1
Common parts
90119-06123
90179-06007
90179-06029
90179-06115
90210-09014
90339-09003
90467-15012
91655-40625
92122-40610
96111-10780
