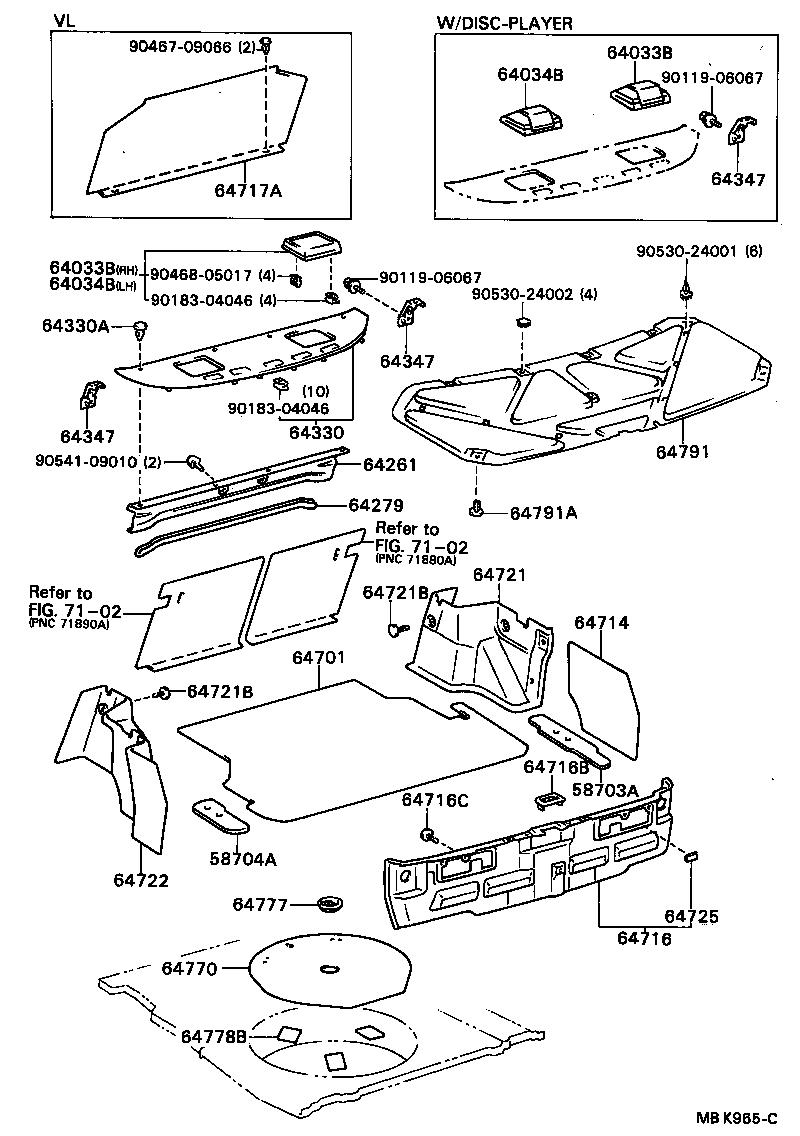

SV21-UTPVF (1986)
Toyota Camry/Vista
(8608- )SV20,21..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 58703-32010 |
CV20,SV20,21,VZV20 |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-32020 |
SV2#..HT |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204004 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/DISC-PLAYER |
1 | ||
| 64033-2204002 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX DARK BEIGE,TRIM4# |
1 | ||
| 86269-32010 |
SV21,25..HT..(GT,VR,VX) |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204004 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/DISC-PLAYER |
1 | ||
| 64033-2204002 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX DARK BEIGE,TRIM4# |
1 | ||
| 86269-32010 |
SV21,25..HT..(GT,VR,VX) |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204002 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX DARK BEIGE,TRIM4# |
1 | ||
| 86269-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/DISC-PLAYER |
1 | ||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21,25..HT..(GT,VR,VX) |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204002 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX DARK BEIGE,TRIM4# |
1 | ||
| 86269-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/DISC-PLAYER |
1 | ||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
SV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21,25..HT..(GT,VR,VX) |
1 | ||
| 64261 - GARNISH, ROOM PARTITION | ||||
| 64261-3202002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 64261-3202004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK GRAY,TRIM8# |
1 | ||
| 64261-3202002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 64261-3202004 |
SV2#..HT..(GT,VE,VR,VX) DARK GRAY,TRIM8# |
1 | ||
| 64261-3202005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 64261-3202005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64279 - PROTECTOR, ROOM PARTITION | ||||
| 64279-3203004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64279-3203002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 64279-3203005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64279-3203005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 64279-3203002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 64279-3203004 |
SV2#..HT..(GT,VE,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3228004 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64330-3228005 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-3228002 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3228002 |
SV20,21..HT..(GT,VR,VX) MAROON,TRIM3# |
1 | ||
| 64330-3228004 |
SV20,21..HT..(GT,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| 64330-3228005 |
SV20,21..HT..(GT,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0804612 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
4 | ||
| 90467-0804605 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90467-0804612 |
SV25..SED..VR;SV25..VL,XT,ZE;CV20,SV20,21,VZV20 MAROON,TRIM3# |
4 | ||
| 90467-0804624 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90467-0804624 |
SV25..SED..VR;SV25..VL,XT,ZE;CV20,SV20,21,VZV20 DARK BLUE,TRIM8# |
4 | ||
| 90467-0804605 |
CV20,SV20,21;SV25..SED..VR;SV25..VL,XT,ZE DARK BEIGE,TRIM4# |
4 | ||
| 64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE | ||||
| 64347-32010 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER |
1 | ||
| 64347-32010 |
SV20,21..HT..(GT,VE,VR,VX) |
1 | ||
| 64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE | ||||
| 64347-32010 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER |
1 | ||
| 64347-32010 |
SV20,21..HT..(GT,VE,VR,VX) |
1 | ||
| 64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE | ||||
| 64347-32010 |
SV2#..HT..(GT,VE,VR,VX) W/SPEAKER |
1 | ||
| 64347-32010 |
SV20,21..HT..(GT,VE,VR,VX) |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64711-3207003 |
SV2#..HT..(GT,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64711-3207003 |
SV20,21..HT..(GT,VR,VX) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64714 - COVER, LUGGAGE COMPARTMENT, RH | ||||
| 64714-3209003 |
SV2#..HT..(GT,VE,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64714-3209003 |
SV20,21..HT..(GT,VE,VR,VX) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-3209003 |
SV2#..HT..(GT,VE,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64716-3209003 |
SV20,21..HT..(GT,VE,VR,VX) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64716B - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-3202003 |
SV2#..HT LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64749-3202003 |
SV2#..HT GRAY,LIGHT GRAY |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0500433 |
SV2#..HT GRAY,GRAY |
11 | ||
| 90467-0500433 |
SV2#..HT GRAY,TRIM3#,4#,8# |
11 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-3207003 |
SV2#..HT..(GT,VE,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64721-3207103 |
SV20,21..HT..(GT,VE,VR,VX) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64721-3207103 |
SV2#..HT..(GT,VE,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-0704203 |
SV2#..HT..(GT,VE,VR,VX) GRAY,TRIM3#,4#,8# |
7 | ||
| 90467-0704203 |
SV2#..HT GRAY,GRAY |
7 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-0704203 |
SV2#..HT..(GT,VE,VR,VX) GRAY,TRIM3#,4#,8# |
7 | ||
| 90467-0704203 |
SV2#..HT GRAY,GRAY |
7 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-3207003 |
SV20,21..HT..(GT,VE,VR,VX) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64722-3207003 |
SV2#..HT..(GT,VE,VR,VX) GRAY,LIGHT GRAY |
1 | ||
| 64725 - RETAINER, LUGGAGE COMPARTMENT COVER, NO.1 | ||||
| 64725-32030 |
SV2#..HT |
4 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64771-32040 |
CV20,SV20,21,VZV20 |
1 | ||
| 64771-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 64777 - CLAMP, SPARE WHEEL COVER | ||||
| 64777-32020 |
CV20,SV2# |
1 | ||
| 64777-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 64778B - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
CV20,SV2#,VZV20 |
3 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-3203003 |
SV2#..HT GRAY,TRIM3#,4#,8# |
1 | ||
| 64791-3203003 |
SV2#..HT GRAY,GRAY |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0805623 |
SV2#..HT GRAY,GRAY |
3 | ||
| 90467-0805623 |
SV2#..HT GRAY,TRIM3#,4#,8# |
3 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90183-04046 | ||||
| 90467-09066 | ||||
| 90468-05017 | ||||
| 90530-24001 | ||||
| 90530-24002 | ||||
| 90541-09010 | ||||
| Linked diagrams | ||||
| 7102 | ||||
