SV21-UTPVF (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

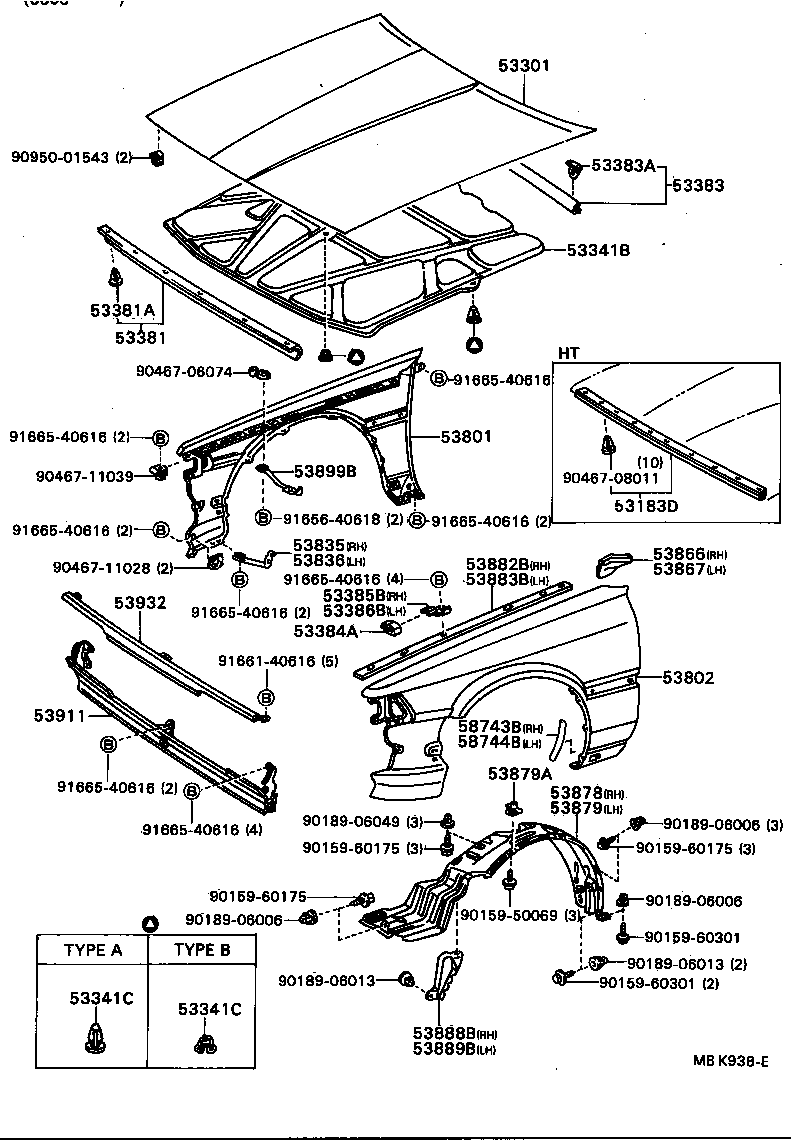

Click highlighted areas on diagram

diagram 53183D 53301 53341B 53341C 53341C 53381 53381A 53383 53383A 53384A 53385B 53386B 53801 53802 53835 53836 53866 53867 53878 53879 53879A 53882B 53883B 53888B 53889B 53899B 53911 53932 58743B 58744B 9015950069 9015960175 9015960175 9015960175 9015960301 9015960301 9018906006 9018906006 9018906006 9018906013 9018906013 9018906049 9046706074 9046708011 9046711028 9046711039 9095001543 9165640618 9166140616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-32010

SV2#..HT

 1
53301 - HOOD SUB-ASSY
53301-32080

SV2#..HT

 1
53341B - INSULATOR, HOOD
53341-32030

CV20,SV21,25,VZV20

 1
53341-32030

SV21,VZV20

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

SV21,25,VZV20

 13
90467-09006

CV20,SV21,VZV20

TYPE A

 13
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

SV21,25,VZV20

 13
90467-09006

CV20,SV21,VZV20

TYPE A

 13
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-32020

CV20,SV2#,VZV20

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

SV2#..HT

 10
90467-08011

CV20,SV2#,VZV20

 6
53383 - SEAL, HOOD TO COWL TOP
53383-32020

CV20,SV2#,VZV20

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08044

CV20,SV2#,VZV20

 10
53384A - BUMPER, FENDER TO HOOD
53384-14030

CV20,SV2#,VZV20

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-14010

CV20,SV2#,VZV20

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-14010

CV20,SV2#,VZV20

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-32190

SV2#..HT

W/O MIRROR HOLE

 1
53801-32180

SV2#..HT

W/MIRROR HOLE

 1
53801-32190

SV2#..HT

 1
53801-32180

SV2#..HT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ))

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-32170

SV2#..HT

W/MIRROR HOLE

 1
53802-32180

SV2#..HT

W/O MIRROR HOLE

 1
53802-32180

SV2#..HT

 1
53802-32170

SV2#..HT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-(ﾃﾞﾝﾄﾞｳ))

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-32020

CV20,SV2#,VZV20

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-32020

CV20,SV2#,VZV20

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-32030

SV2#..HT

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-32030

SV2#..HT

 1
53878 - LINER, FRONT FENDER, RH
53875-32020

CV20,SV2#,VZV20

 1
53879 - LINER, FRONT FENDER, LH
53876-32020

CV20,SV2#,VZV20

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

CV20,SV2#,VZV20

 6
53882B - SEAL, FRONT FENDER, RH
53882-32020

CV20,SV2#,VZV20

 1
53883B - SEAL, FRONT FENDER, LH
53882-32020

CV20,SV2#,VZV20

 1
53888B - SEAL, FRONT FENDER SPLASH SHIELD, RH NO.2
53888-32010

CV20,SV2#,VZV20

 1
53889B - SEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
53889-32010

CV20,SV2#,VZV20

 1
53899B - SUPPORT, FRONT FENDER PANEL
53899-32010

CV20,SV2#,VZV20

 2
53911 - PANEL, FRONT VALANCE
53901-32040

SV2#..HT

 1
Common parts
90159-50069
90159-60175
90159-60301
90189-06006
90189-06013
90189-06049
90467-06074
90467-08011
90467-11028
90467-11039
90950-01543
91656-40618
91661-40616
91665-40616
