SV21-UTPVF (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

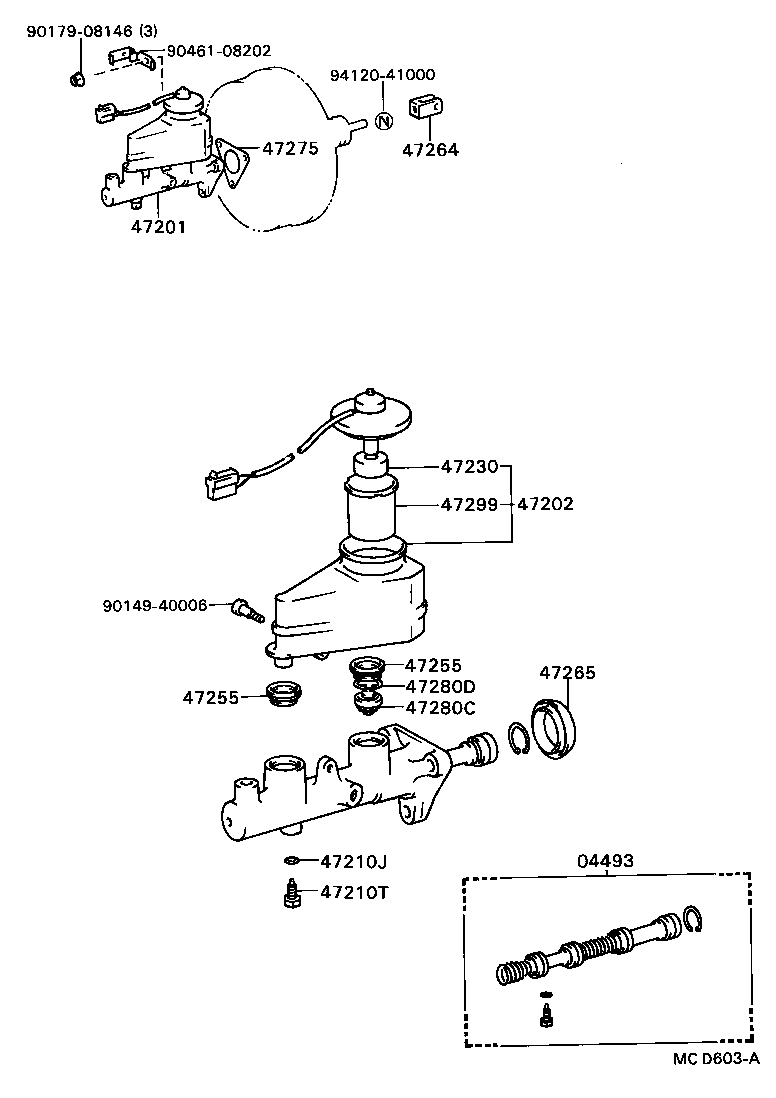

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47280C 47280D 47299 9014940006 9017908146 9046108202 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-32061

SV21..GT

ｱﾘ(ESC)

 1
04493-32060

SV21,VZV20..GT,PRO

W(ESC)

 1
04493-32040

SV21,25,VZV20

 1
04493-32060

SV21,VZV20..GT,PRO

W/ESC

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-32200

SV21,VZV20..GT,PRO

W/ESC

 1
47201-32200

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

ｱﾘ(ESC)

 1
47201-32140

SV21,25,VZV20

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-32070

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47202-32070

SV21,VZV20

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

CV20,SV2#,VZV20

 1
90430-06104

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

ｱﾘ(ESC)

 1
90109-06008

SV21,VZV20..GT,PRO

W/ESC

 1
90109-06077

CV20,SV2#,VZV20

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-20110

CV20,SV2#,VZV20

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

SV21,VZV20

 2
47255-16010

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

SV21,VZV20

 2
47255-16010

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20040

SV21,VZV20..GT,PRO

 1
47264-20040

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

SV21,VZV20

 1
47265-20050

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47275-32010

CV20,SV2#,VZV20

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

SV21,25,VZV20..GT,PRO,VL,VR,XT,ZE

 1
47299-32010

CV20,SV2#,VZV20

 1
Common parts
90149-40006
90179-08146
90461-08202
94120-41000
