SV21-UTPVF (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4FC

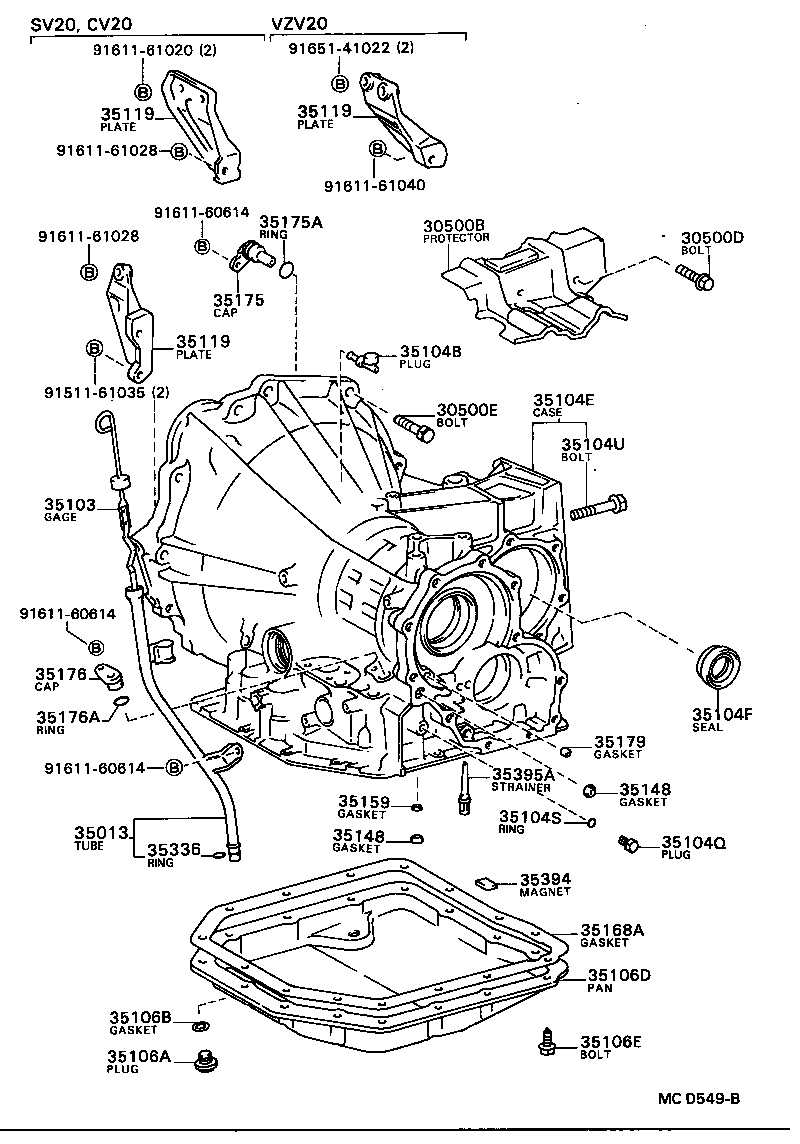

Click highlighted areas on diagram

diagram 30500B 30500D 30500E 35013 35103 35104B 35104E 35104F 35104Q 35104S 35104U 35106A 35106B 35106D 35106E 35119 35119 35119 35148 35148 35159 35168A 35175 35175A 35176 35176A 35179 35336 35394 35395A 9151161035 9161160614 9161160614 9161160614 9161161020 9161161028 9161161028 9161161040 9165141022
Part # Description Qty Price
30500B - PROTECTOR, TRANSAXLE CASE
33117-32022

CV20,SV2#,VZV20..4FC

 1
33117-32022

CV20,SV20,21,VZV20..4FC

 1
30500D - BOLT(FOR TRANSAXLE CASE PROTECTOR)
90105-08040

CV20,SV2#,VZV20..4FC

 2
90105-08040

CV20,SV20,21..4FC

 2
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-08040

CV20,SV20,21,VZV20..4FC

*8−1.25PX18−15

 1
91619-61245

CV20,SV20,21,VZV20..4FC

*12−1.25PX45−30

 3
90105-10077

CV20,SV2#,VZV20..4FC

*10−1.25PX43−26,*10-1.25PX43-26

 2
90105-10077

CV20,SV20,21..4FC

*10−1.25PX43−26

 1
91651-41022

CV20,SV2#..4FC

*10−1.25PX22−22,*10-1.25PX22-22

 2
91651-41022

SV21..4FC

*10−1.25PX22−22

 1
91619-61245

CV20,SV2#,VZV20..4FC

*12−1.25PX45−30,*12-1.25PX45-30

 3
90105-08040

CV20,SV2#,VZV20..4FC

*8−1.25PX18−15,*8-1.25PX18-15

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-32050

SV21..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-32030

SV21,VZV20..4FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089

CV20,SV2#,VZV20..4FC

 1
90930-03089

CV20,SV20,21,VZV20..4FC

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-32052

SV21..4FC..GT;CV20,SV20..4FC

 1
35104-32050

SV21..4FC..GT

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-35019

CV20,SV20,21,VZV20..4FC

 1
90311-35019

CV20,SV2#,VZV20..4FC

 1
90311-35010

CV20,SV2#,VZV20..4FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

CV20,SV2#,VZV20..4FC

 2
90341-08001

CV20,SV20,21,VZV20..4FC

 2
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

CV20,SV2#,VZV20..4FC

 2
90301-06196

CV20,SV20,21,VZV20..4FC

 2
35104U - BOLT (FOR TRANSAXLE CASE)
90105-12052

CV20,SV2#,VZV20..4FC

*12−1.25PX54−24

 2
90105-12052

CV20,SV20,21,VZV20..4FC

*12−1.25PX54−24

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

CV20,SV20,21,VZV20..4FC

 1
90341-18016

CV20,SV2#,VZV20..4FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

CV20,SV20,21,VZV20..4FC

 1
90430-18008

CV20,SV2#,VZV20..4FC

 3
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-32011

SV21,VZV20..4FC

 1
35106-10021

CV20,SV2#,VZV20..4FC

W/PROTECTOR

 1
35106-10021

SV21,VZV20..4FC

ｱﾘ(ﾌﾟﾛﾃｸﾀ)

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

CV20,SV2#,VZV20..4FC

 15
90119-06173

CV20,SV20,21,VZV20..4FC

 15
35119 - PLATE, STIFENER, LH (ATM)
33119-32020

SV21..4FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-32020

SV21..4FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-32020

SV21..4FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

CV20,SV2#,VZV20..4FC

 2
35148-16010

CV20,SV20,21,VZV20..4FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

CV20,SV2#,VZV20..4FC

 2
35148-16010

CV20,SV20,21,VZV20..4FC

 1
35159 - GASKET, BRAKE DRUM
35159-32011

CV20,SV2#,VZV20..4FC

 1
35159-32011

CV20,SV20,21,VZV20..4FC

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010

CV20,SV20,21,VZV20..4FC

 1
35168-32010

CV20,SV2#,VZV20..4FC

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

CV20,SV20,21,VZV20..4FC

 1
35175-32010

CV20,SV2#,VZV20..4FC

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002

CV20,SV2#,VZV20..4FC

 1
90301-21002

CV20,SV20,21,VZV20..4FC

 1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010

CV20,SV2#,VZV20..4FC

 1
35179-32010

CV20,SV20,21,VZV20..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

CV20,SV20,21,VZV20..4FC

 1
90301-09173

CV20,SV2#,VZV20..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

CV20,SV2#,VZV20..4FC

 3
35394-30011

CV20,SV20,21,VZV20..4FC

 3
Common parts
91511-61035
91611-60614
91611-61020
91611-61028
91611-61040
91651-41022
