SV21-UTPMK (1986)
Toyota Camry/Vista
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

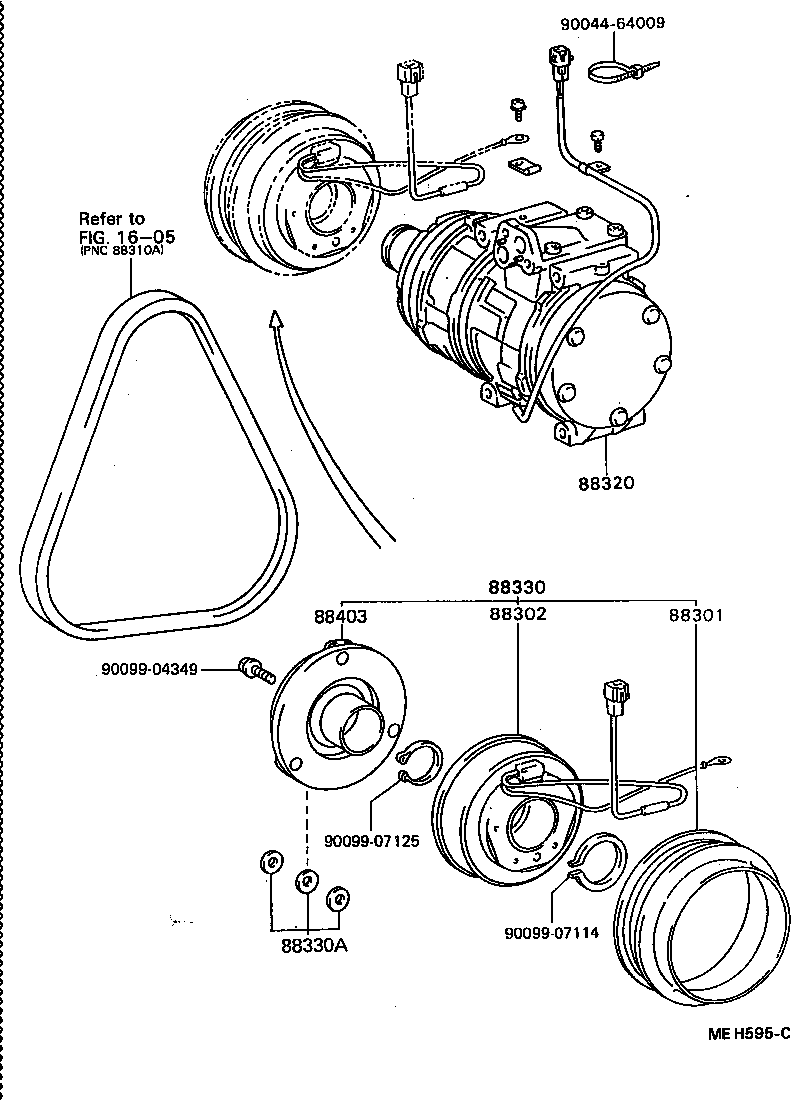

ILLUST NO. 1 OF 2(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20090 |
CV20,SV2# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32020 |
CV20,SV2# |
1 | ||
| 88411-32021 |
CV20,SV2# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-32080 |
CV20,SV2# |
1 | ||
| 88320-32080 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88320-32080 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-32030 |
CV20,SV2# |
1 | ||
| 88410-32030 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 88410-32030 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CV20,SV2#,VZV20 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| Linked diagrams | ||||
| 1605 | ||||

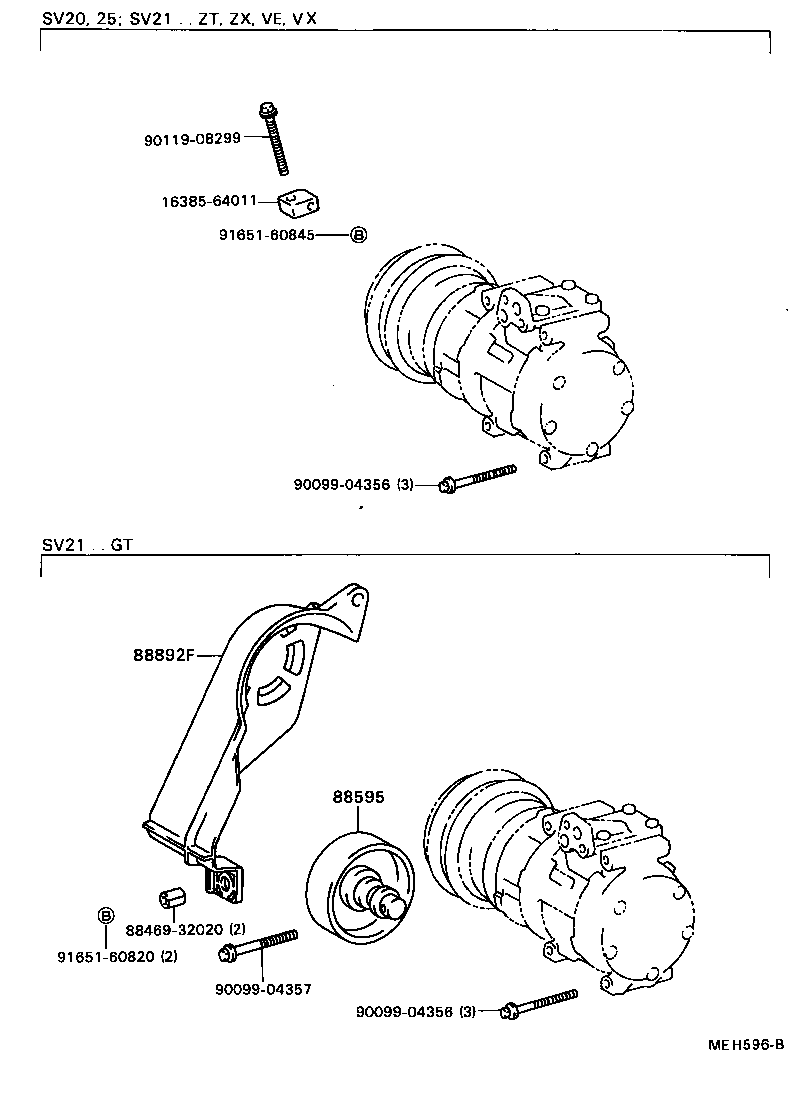

ILLUST NO. 2 OF 2(8608- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16385-64011 | ||||
| 88469-32020 | ||||
| 90099-04356 | ||||
| 90099-04357 | ||||
| 90119-08299 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
