SV21-UTPMK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

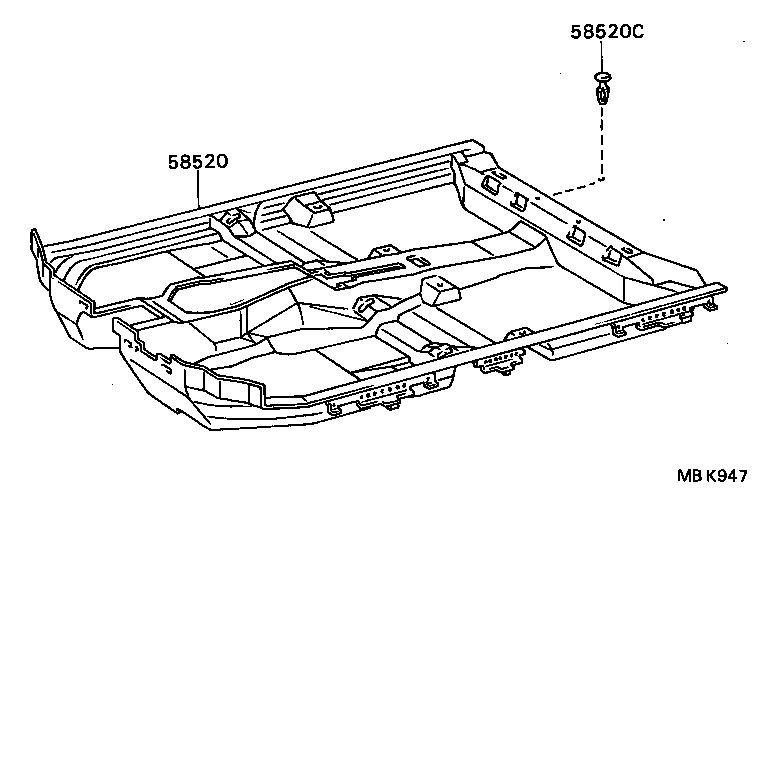

diagram 58520 58520C
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-3212002

CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT

MAROON,MAROON,TRIM3#

 1
58510-3212005

CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT

BEIGE,DARK BEIGE,TRIM4#

 1
58510-3212005

CV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT

DARK BEIGE,TRIM4#

 1
58510-3212004

CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT

BLUE,DARK BLUE,TRIM8#

 1
58510-3212002

CV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT

MAROON,TRIM3#

 1
58510-3212004

CV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT

DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601601

CV20,SV2#,VZV20

BLACK,BLACK

 2
90467-0601601

CV20,SV2#,VZV20

BLACK,TRIM3#,4#,8#

 2
