SV21-UTPMK (1986)
Toyota Camry/Vista
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

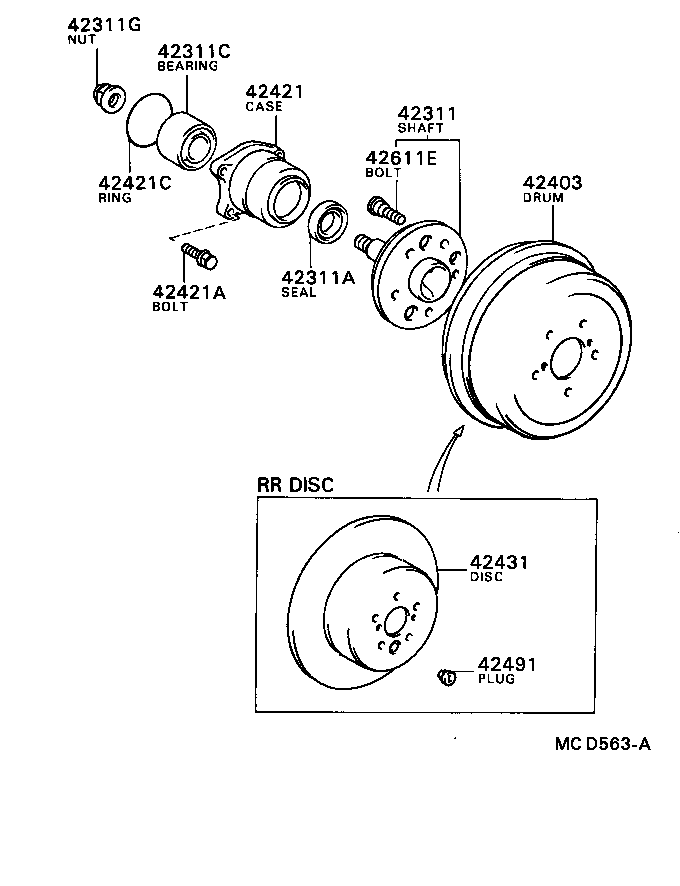

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-32031 |
CV20,SV20,21,VZV20 |
1 | ||
| 42301-32031 |
CV20,SV2#,VZV20 |
2 | ||
| 42301-32030 |
CV20,SV2# |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-42018 |
CV20,SV20,21,VZV20 |
1 | ||
| 90311-42018 |
CV20,SV2#,VZV20 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-30044 |
CV20,SV20,21,VZV20 |
1 | ||
| 90369-30044 |
CV20,SV2#,VZV20 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20003 |
CV20,SV20,21,VZV20 |
1 | ||
| 90179-20003 |
CV20,SV2#,VZV20 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-32020 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
2 | ||
| 42431-32020 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
2 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-20020 |
CV20,SV20,21,VZV20 |
1 | ||
| 42421-20020 |
CV20,SV2#,VZV20 |
2 | ||
| 42421A - BOLT (FOR REAR AXLE BEARING CASE) | ||||
| 90105-10124 |
CV20,SV2#,VZV20 |
8 | ||
| 90105-10124 |
CV20,SV20,21,VZV20 |
4 | ||
| 42421C - RING, O (FOR REAR AXLE BEARING CASE) | ||||
| 90301-63003 |
CV20,SV20,21,VZV20 |
1 | ||
| 90301-63003 |
CV20,SV2#,VZV20 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
CV20,SV2#,VZV20 |
10 | ||
| 90942-02047 |
CV20,SV2#,VZV20 |
5 | ||
